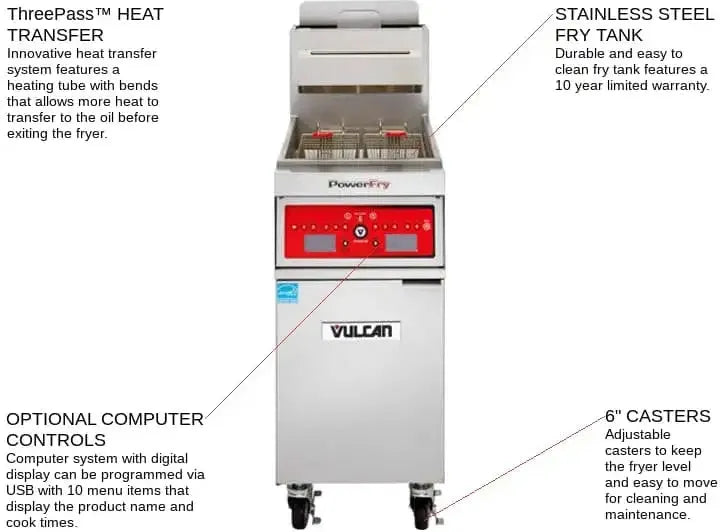

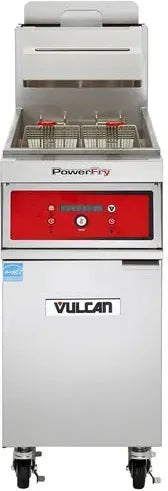

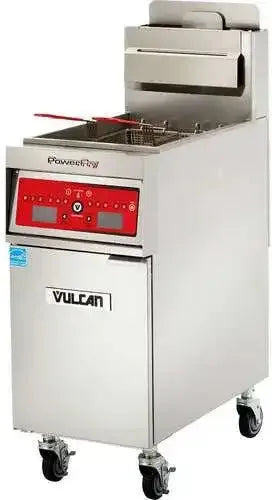

Vulcan - PowerFry3 51 - 90 lb. Gas Floor Model Full Pot Fryer with Solid State Controls for 85 lb Fryers - 1TR85AF
Model Number: HOBA-1TR85AF
Description
The Vulcan PowerFry3 51 - 90 lb. Gas Floor Model Full Pot Fryer with Solid State Controls for 85 lb Fryers is a commercial fryer built for consistent frying in restaurants, cafés, bars, concessions, cafeterias, and other commercial kitchens. Vulcan model 1TR85AF is specified with 90,000 BTU/hr input, 85-90 lb total oil capacity, 1 tank configuration, and solid state analog knob controls, giving operators a dependable, application-ready configuration for busy commercial kitchens, institutional foodservice, catering operations, and back-of-house production areas.
Key Features
- Vulcan model 1TR85AF
- Product type: Fryers
- 90 lb capacity
- Series: PowerFry3 TR Series
- Fuel Type: Natural Gas or Liquid Propane (specify at order)
- Ignition: Electronic Matchless with SoftStart
- Number of tanks: 1
- Oil capacity per tank: 85-90 lb
- Total oil capacity: 85-90 lb
- BTU per Tank: 90,000
- Total input: 90,000 BTU/hr
- Temperature range: 200 - 390 F
- Control type: Solid State Analog Knob
- Frypot material: Stainless Steel
- Certifications: ENERGY STAR certified, CSA design certified, NSF listed
- Country of origin: USA
- Warranty: 1 Year Limited Parts and Labor
- Tank warranty: 10 Year Limited Fry Tank
Specifications
Dimensions
Width
21"
Depth
34-3/8"
Overall Height
47-1/4"
Working Height
36-1/4"
Tank Frying Area
19-1/2" x 14"
Shipping Weight
340 lb
Details
Type
Gas Floor Fryer
Series
PowerFry3 TR Series
Model
1TR85AF
Fuel Type
Natural Gas or Liquid Propane (specify at order)
Ignition
Electronic Matchless with SoftStart
Number of Tanks
1
Oil Capacity per Tank
85-90 lb
Total Oil Capacity
85-90 lb
BTU per Tank
90,000
Total Input BTU/hr
90,000
Temperature Range
200 - 390 F
Control Type
Solid State Analog Knob
Frypot Material
Stainless Steel
Cabinet Material
Stainless Steel
Drain Valve
1-1/4" Full-Port Ball Valve
Baskets
Twin Fry Baskets with Plastic-Coated Handles (standard)
Casters
Four 6" adjustable casters (2 locking, 2 non-locking)
Efficiency
60-61% cooking, 72% thermal
Heat Transfer
Patented ThreePass tube-style heat exchanger
Idle Rate
5,575 BTU/hr per tank
Filtration
Built-in KleenScreen PLUS filter system, 1/3 HP pump, 8 GPM
Electrical (Filter)
120V, 60 Hz, 1 phase, NEMA 5-15P
Warranty / Certifications
Certifications
ENERGY STAR certified, CSA design certified, NSF listed
Country of Origin
USA
Warranty
1 Year Limited Parts and Labor
Tank Warranty
10 Year Limited Fry Tank
