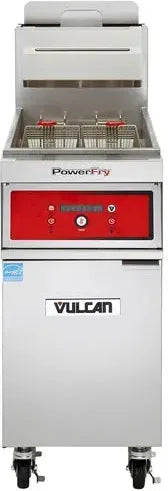

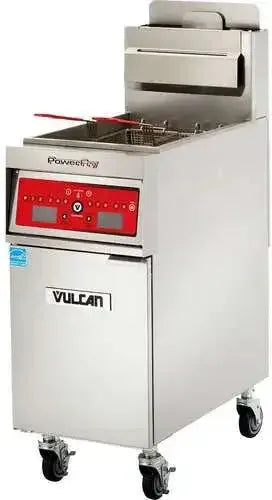

Vulcan - 45-50 lb Capacity Natural Gas Floor Fryer, Digital Controls, KleenScreen Filtration - 1TR45DF
Model Number: HOBA-1TR45DF
Description
The Vulcan 45-50 lb Capacity Natural Gas Floor Fryer, Digital Controls, KleenScreen Filtration is a commercial fryer built for consistent frying in restaurants, cafés, bars, concessions, cafeterias, and other commercial kitchens. Vulcan model 1TR45DF is specified with 70,000 BTU/hr input, 45-50 lb total oil capacity, 1 tank configuration, and solid state digital controls, giving operators a dependable, application-ready configuration for busy commercial kitchens, institutional foodservice, catering operations, and back-of-house production areas.
Key Features
- Vulcan model 1TR45DF
- Product type: Fryers
- Natural gas configuration
- 50 lb capacity
- Digital controls
- KleenScreen filtration configuration
- Series: PowerFry3 TR Series
- Fuel Type: Natural Gas
- Ignition: Electronic Matchless with SoftStart
- Number of tanks: 1
- Oil capacity per tank: 45-50 lb
- Total oil capacity: 45-50 lb
- BTU per Tank: 70,000
- Total input: 70,000 BTU/hr
- Certifications: ENERGY STAR certified, CSA design certified, NSF listed
- Country of origin: USA
- Warranty: 1 Year Limited Parts and Labor
- Tank warranty: 10 Year Limited Fry Tank
Specifications
Dimensions
Width
15-1/2"
Depth
30-1/8"
Overall Height
47-1/4"
Working Height
36-1/4"
Tank Frying Area
14" x 14"
Shipping Weight
275 lb
Details
Type
Gas Floor Fryer
Series
PowerFry3 TR Series
Model
1TR45DF
Fuel Type
Natural Gas or Liquid Propane (specify at order)
Ignition
Electronic Matchless with SoftStart
Number of Tanks
1
Oil Capacity per Tank
45-50 lb
Total Oil Capacity
45-50 lb
BTU per Tank
70,000
Total Input BTU/hr
70,000
Temperature Range
200 - 390 F
Control Type
Solid State Digital
Frypot Material
Stainless Steel
Cabinet Material
Stainless Steel
Drain Valve
1-1/4" Full-Port Ball Valve
Baskets
Twin Fry Baskets with Plastic-Coated Handles (standard)
Casters
Four 6" adjustable casters (2 locking, 2 non-locking)
Efficiency
60-61% cooking, 72% thermal
Heat Transfer

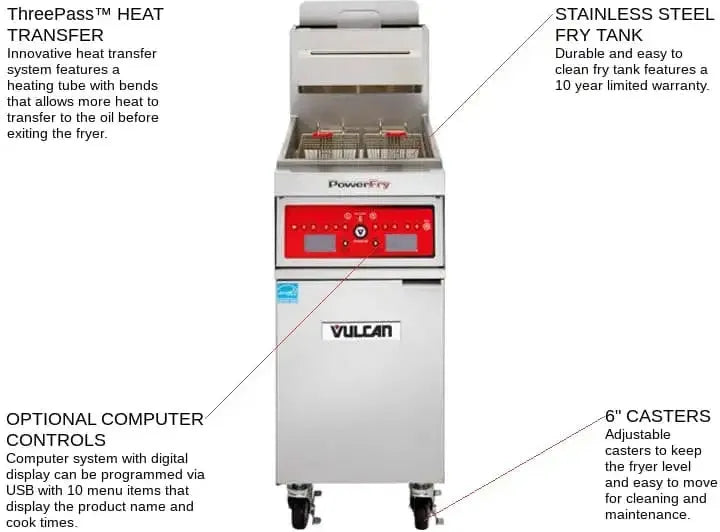

Patented ThreePass tube-style heat exchanger
Idle Rate
4,318 BTU/hr per tank
Filtration
Built-in KleenScreen PLUS filter system, 1/3 HP pump, 8 GPM
Electrical (Filter)
120V, 60 Hz, 1 phase, NEMA 5-15P
Warranty / Certifications
Certifications
ENERGY STAR certified, CSA design certified, NSF listed
Country of Origin
USA
Warranty
1 Year Limited Parts and Labor
Tank Warranty
10 Year Limited Fry Tank
