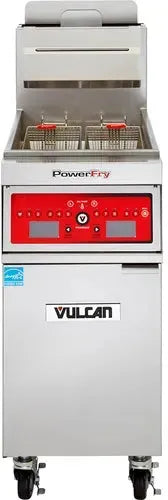

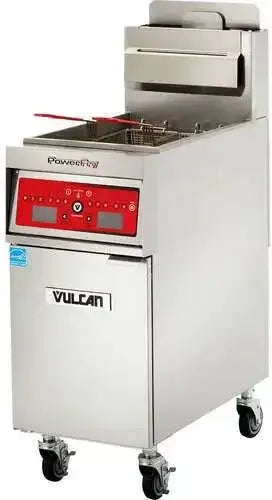

Vulcan - 45-50 lb Capacity Natural Gas Floor Fryer, Computer Controls, No Filtration System - 1TR45C
Model Number: HOBA-1TR45C
Description
The Vulcan 45-50 lb Capacity Natural Gas Floor Fryer, Computer Controls, No Filtration System is a commercial fryer built for consistent frying in restaurants, cafés, bars, concessions, cafeterias, and other commercial kitchens. Vulcan model 1TR45C is specified with 120V, 60 Hz, 1 phase (for electronic controls) electrical configuration, 70,000 BTU/hr input, 45-50 lb total oil capacity, and 1 tank configuration, giving operators a dependable, application-ready configuration for busy commercial kitchens, institutional foodservice, catering operations, and back-of-house production areas.
Key Features
- Vulcan model 1TR45C
- Product type: Fryers
- Natural gas configuration
- 50 lb capacity
- Computer controls
- No built-in filtration system
- Series: PowerFry3 TR Series
- Fuel Type: Natural Gas
- Ignition: Electronic Matchless with SoftStart
- Number of tanks: 1
- Oil capacity per tank: 45-50 lb
- Total oil capacity: 45-50 lb
- BTU per Tank: 70,000
- Total input: 70,000 BTU/hr
- Certifications: ENERGY STAR certified, CSA design certified, NSF listed
- Country of origin: USA
- Warranty: 1 Year Limited Parts and Labor
- Tank warranty: 10 Year Limited Fry Tank
Specifications
Dimensions
Width
15-1/2"
Depth
30-1/8"
Overall Height
47-1/8"
Working Height
36-1/4"
Tank Frying Area
14" x 14"
Shipping Weight
215 lb
Details
Type
Gas Floor Fryer
Series
PowerFry3 TR Series
Model
1TR45C
Fuel Type
Natural Gas or Liquid Propane (specify at order)
Ignition
Electronic Matchless with SoftStart
Number of Tanks
1
Oil Capacity per Tank
45-50 lb
Total Oil Capacity
45-50 lb
BTU per Tank
70,000
Total Input BTU/hr
70,000
Temperature Range
200 - 390 F
Control Type
Programmable Computer
Frypot Material
Stainless Steel
Cabinet Material
Stainless Steel
Drain Valve
1-1/4" Full-Port Ball Valve
Baskets
Twin Fry Baskets with Plastic-Coated Handles (standard)
Casters
Four 6" adjustable casters (2 locking, 2 non-locking)
Efficiency
60-61% cooking, 72% thermal

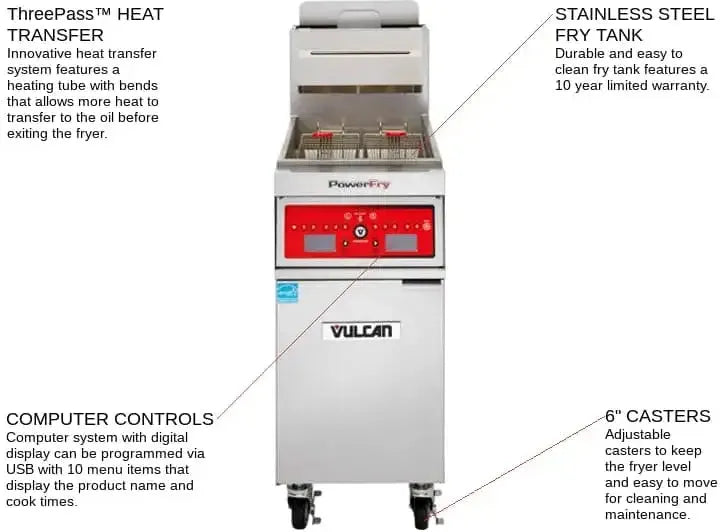

Heat Transfer
Patented ThreePass tube-style heat exchanger
Idle Rate
4,318 BTU/hr per tank
Electrical
120V, 60 Hz, 1 phase (for electronic controls)
Warranty / Certifications
Certifications
ENERGY STAR certified, CSA design certified, NSF listed
Country of Origin
USA
Warranty
1 Year Limited Parts and Labor
Tank Warranty
10 Year Limited Fry Tank
Reviews
Vulcan Equipment is shipped free across Canada on orders over $149. Vulcan Equipment delivers reliable, high-performance cooking solutions designed for foodservice and retail professionals. Built for consistency and durability, Vulcan empowers chefs to focus on their passion - creating exceptional food for every customer, every day.
