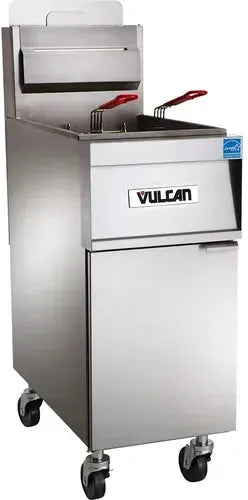

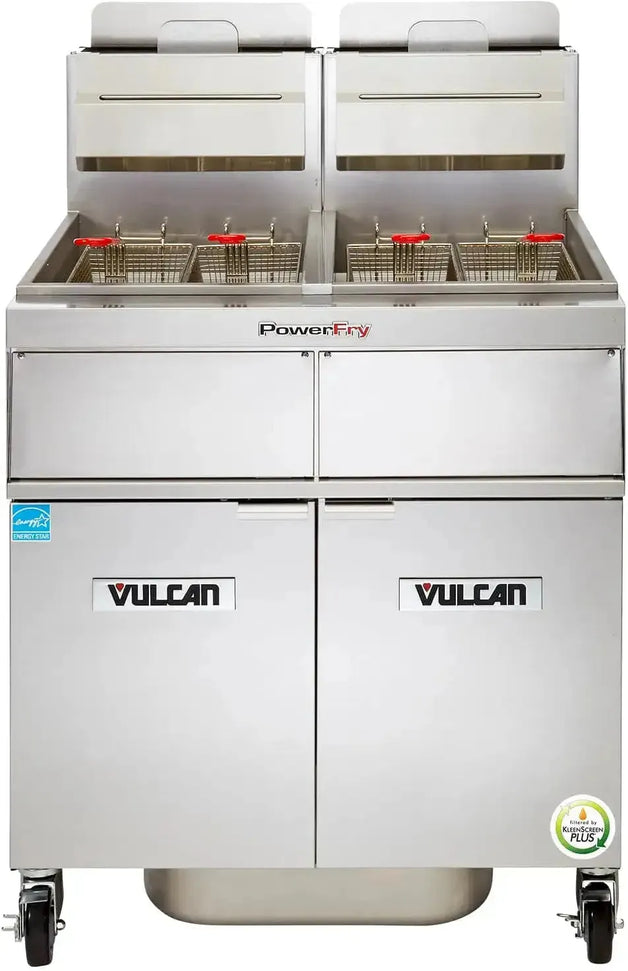

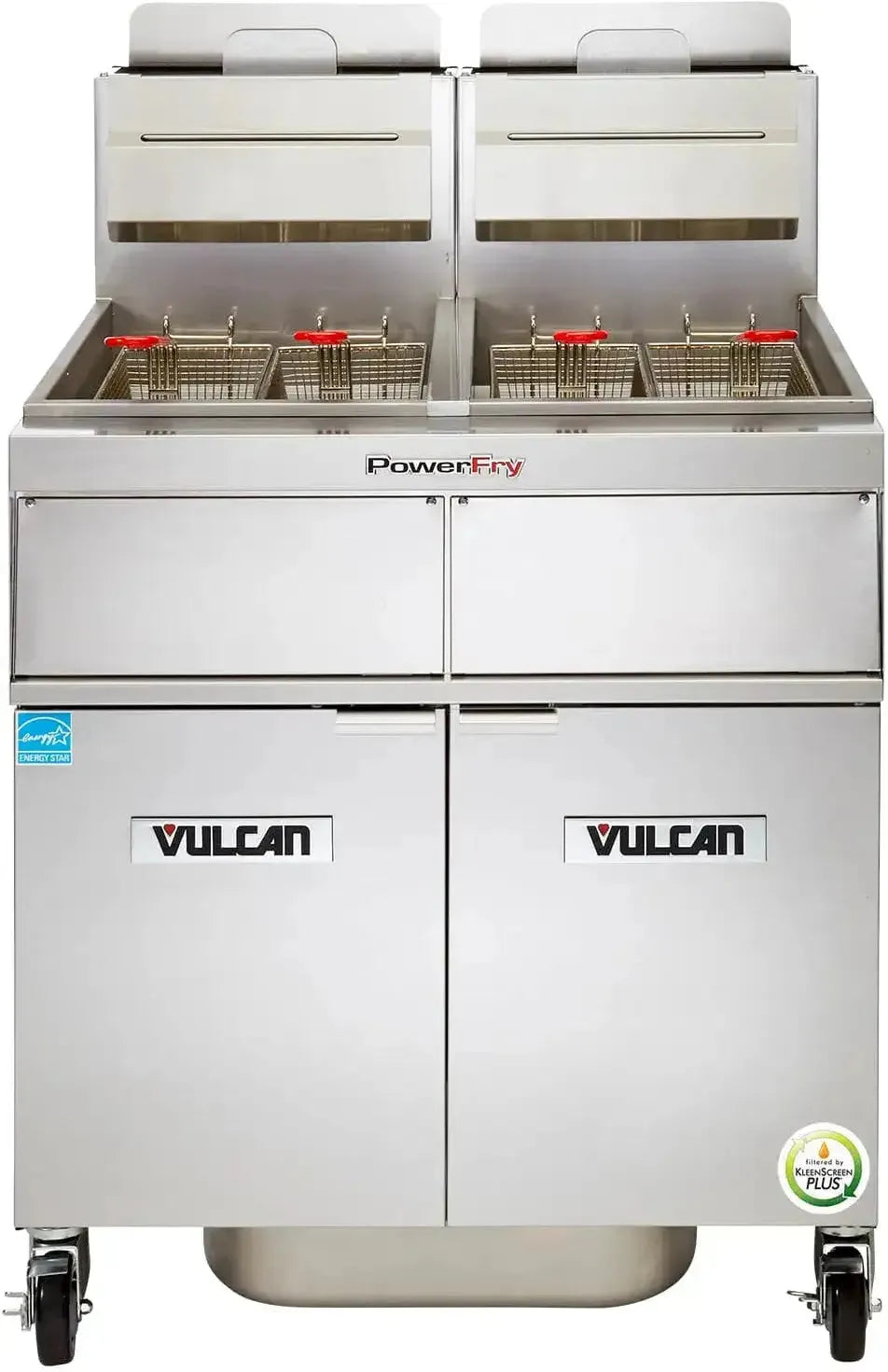

Vulcan - 4-Tank 180-200 lb Total Capacity Nat. Gas Floor Fryer, Computer Controls, KleenScreen - 4TR45CF
Model Number: HOBA-4TR45CF
Description
The Vulcan 4-Tank 180-200 lb Total Capacity Nat. Gas Floor Fryer, Computer Controls, KleenScreen is a commercial fryer built for consistent frying in restaurants, cafés, bars, concessions, cafeterias, and other commercial kitchens. Vulcan model 4TR45CF is specified with 280,000 BTU/hr input, 180-200 lb total oil capacity, 4 tank configuration, and programmable computer controls, giving operators a dependable, application-ready configuration for busy commercial kitchens, institutional foodservice, catering operations, and back-of-house production areas.
Key Features
- Vulcan model 4TR45CF
- Product type: Fryers
- 200 lb capacity
- Computer controls
- KleenScreen filtration configuration
- Series: PowerFry3 TR Series
- Fuel Type: Natural Gas or Liquid Propane (specify at order)
- Ignition: Electronic Matchless with SoftStart
- Number of tanks: 4
- Oil capacity per tank: 45-50 lb
- Total oil capacity: 180-200 lb
- BTU per Tank: 70,000
- Total input: 280,000 BTU/hr
- Temperature range: 200 - 390 F
- Certifications: ENERGY STAR certified, CSA design certified, NSF listed
- Country of origin: USA
- Warranty: 1 Year Limited Parts and Labor
- Tank warranty: 10 Year Limited Fry Tank
Specifications
Dimensions
Width
62"
Depth
30-1/8"
Overall Height
47-1/4"
Working Height
36-1/4"
Tank Frying Area
14" x 14"
Shipping Weight
920 lb
Details
Type
Gas Floor Fryer
Series
PowerFry3 TR Series
Model
4TR45CF
Fuel Type
Natural Gas or Liquid Propane (specify at order)
Ignition
Electronic Matchless with SoftStart
Number of Tanks
4
Oil Capacity per Tank
45-50 lb
Total Oil Capacity
180-200 lb
BTU per Tank
70,000
Total Input BTU/hr
280,000
Temperature Range
200 - 390 F
Control Type
Programmable Computer
Frypot Material
Stainless Steel
Cabinet Material
Stainless Steel
Drain Valve
1-1/4" Full-Port Ball Valve
Baskets
Twin Fry Baskets with Plastic-Coated Handles (standard)
Casters
Four 6" adjustable casters (2 locking, 2 non-locking)
Efficiency
60-61% cooking, 72% thermal

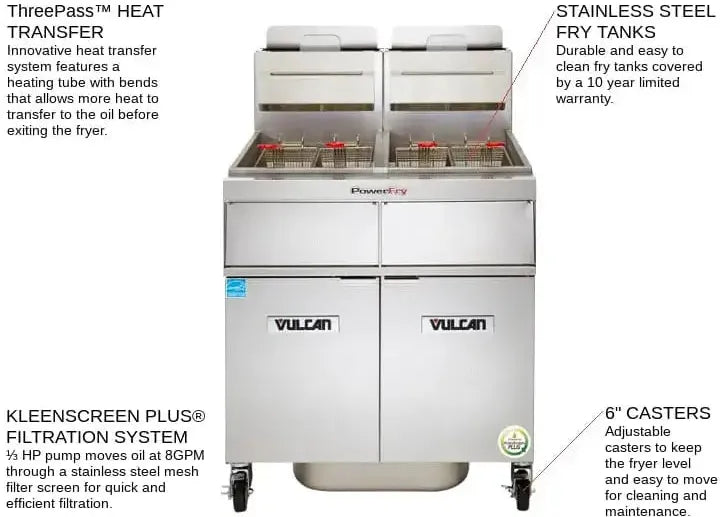

Heat Transfer
Patented ThreePass tube-style heat exchanger
Idle Rate
4,318 BTU/hr per tank
Filtration
Built-in KleenScreen PLUS filter system, 1/3 HP pump, 8 GPM
Electrical (Filter)
120V, 60 Hz, 1 phase, NEMA 5-15P
Warranty / Certifications
Certifications
ENERGY STAR certified, CSA design certified, NSF listed
Country of Origin
USA
Warranty
1 Year Limited Parts and Labor
Tank Warranty
10 Year Limited Fry Tank
