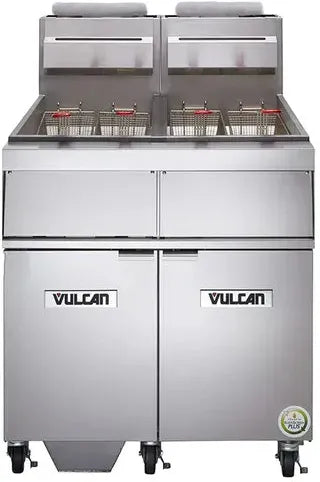

Vulcan - Hart Model 3 45-50 lb. Fryers Gas Floor Fryer with Millivolt T-Stat Controls and KleenScreen - 3GR45MF
Model Number: HOBA-3GR45MF
Description
The Vulcan Hart Model 3 45-50 lb. Fryers Gas Floor Fryer with Millivolt T-Stat Controls and KleenScreen is a commercial fryer built for consistent frying in restaurants, cafés, bars, concessions, cafeterias, and other commercial kitchens. Vulcan model 3GR45MF is specified with 360,000 BTU/hr input, 135-150 lb total oil capacity, 3 tank configuration, and millivolt controls, giving operators a dependable, application-ready configuration for busy commercial kitchens, institutional foodservice, catering operations, and back-of-house production areas.

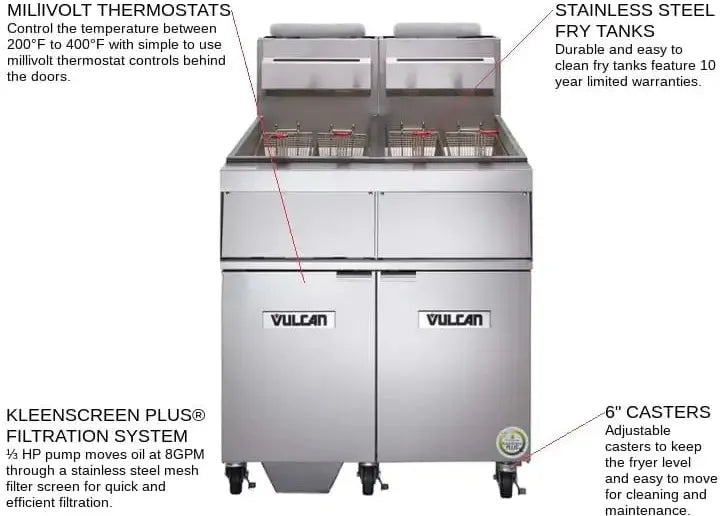

Key Features
- Vulcan model 3GR45MF
- Product type: Fryers
- 50 lb capacity
- KleenScreen filtration configuration
- Series: GR Series
- Fuel Type: Natural Gas or Liquid Propane (specify at order)
- Ignition: Standing Pilot (Millivolt)
- Number of tanks: 3
- Oil capacity per tank: 45-50 lb
- Total oil capacity: 135-150 lb
- BTU per Tank: 120,000
- Total input: 360,000 BTU/hr
- Temperature range: 200 - 390 F
- Control type: Millivolt
- Certifications: CSA design certified, NSF listed
- Country of origin: USA
- Warranty: 1 Year Limited Parts and Labor
- Tank warranty: 10 Year Limited Fry Tank
Specifications
Dimensions
Width
46-1/2"
Depth
30-1/8"
Overall Height
47-1/4"
Working Height
36-1/4"
Tank Frying Area
14" x 14"
Shipping Weight
735 lb
Details
Type
Gas Floor Fryer
Series
GR Series
Model
3GR45MF
Fuel Type
Natural Gas or Liquid Propane (specify at order)
Ignition
Standing Pilot (Millivolt)
Number of Tanks
3
Oil Capacity per Tank
45-50 lb
Total Oil Capacity
135-150 lb
BTU per Tank
120,000
Total Input BTU/hr
360,000
Temperature Range
200 - 390 F
Control Type
Millivolt
Frypot Material
Stainless Steel
Cabinet Material
Stainless Steel
Drain Valve
1-1/4" Full-Port Ball Valve
Baskets
Twin Fry Baskets with Plastic-Coated Handles (standard)
Casters
Four 6" adjustable casters (2 locking, 2 non-locking)
Heat Transfer
Tube-fired heat exchanger
Filtration
Built-in KleenScreen PLUS filter system, 1/3 HP pump, 8 GPM
Electrical (Filter)
120V, 60 Hz, 1 phase, NEMA 5-15P
Warranty / Certifications
Certifications
CSA design certified, NSF listed
Country of Origin
USA
Warranty
1 Year Limited Parts and Labor
Tank Warranty
10 Year Limited Fry Tank
