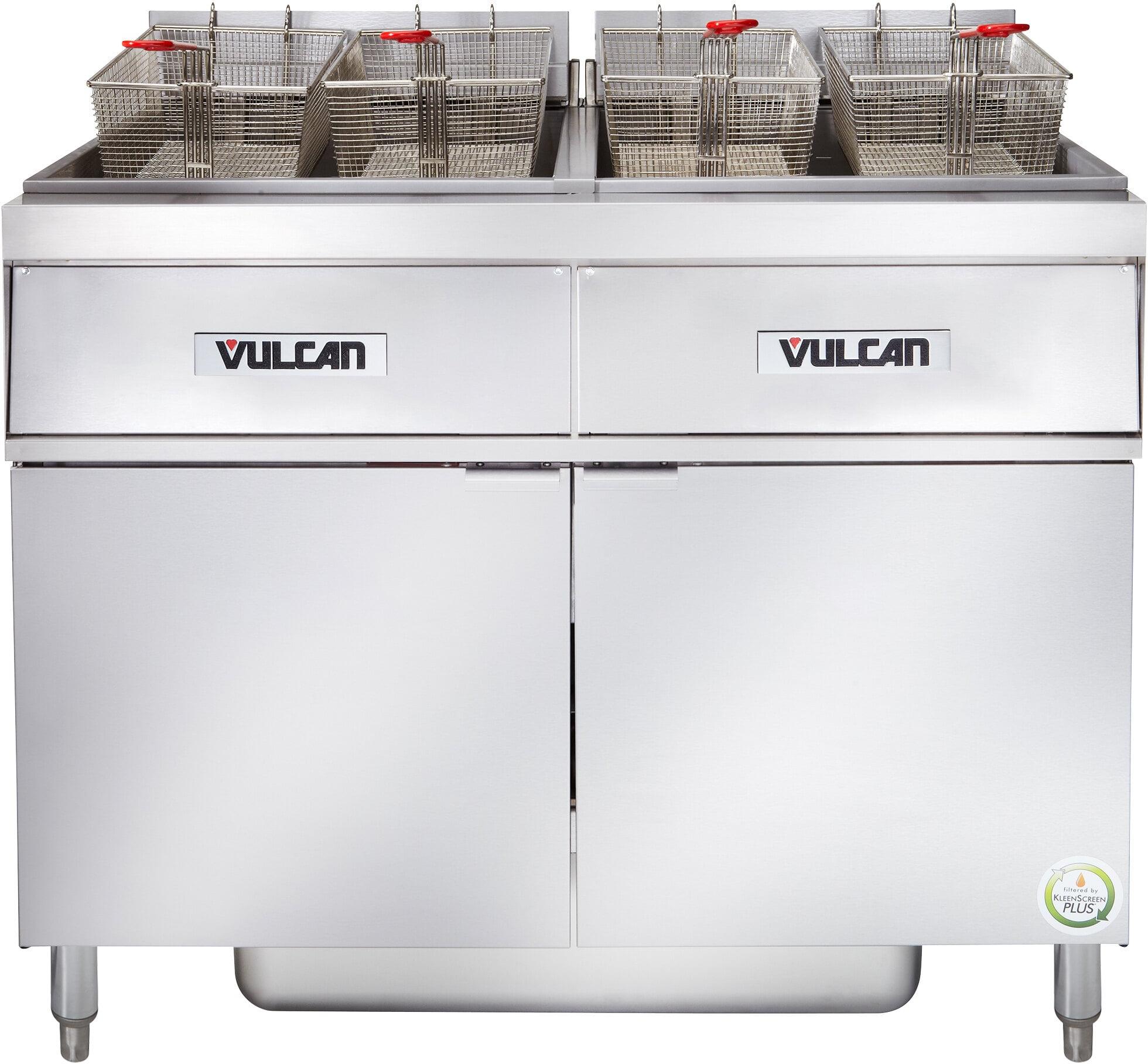

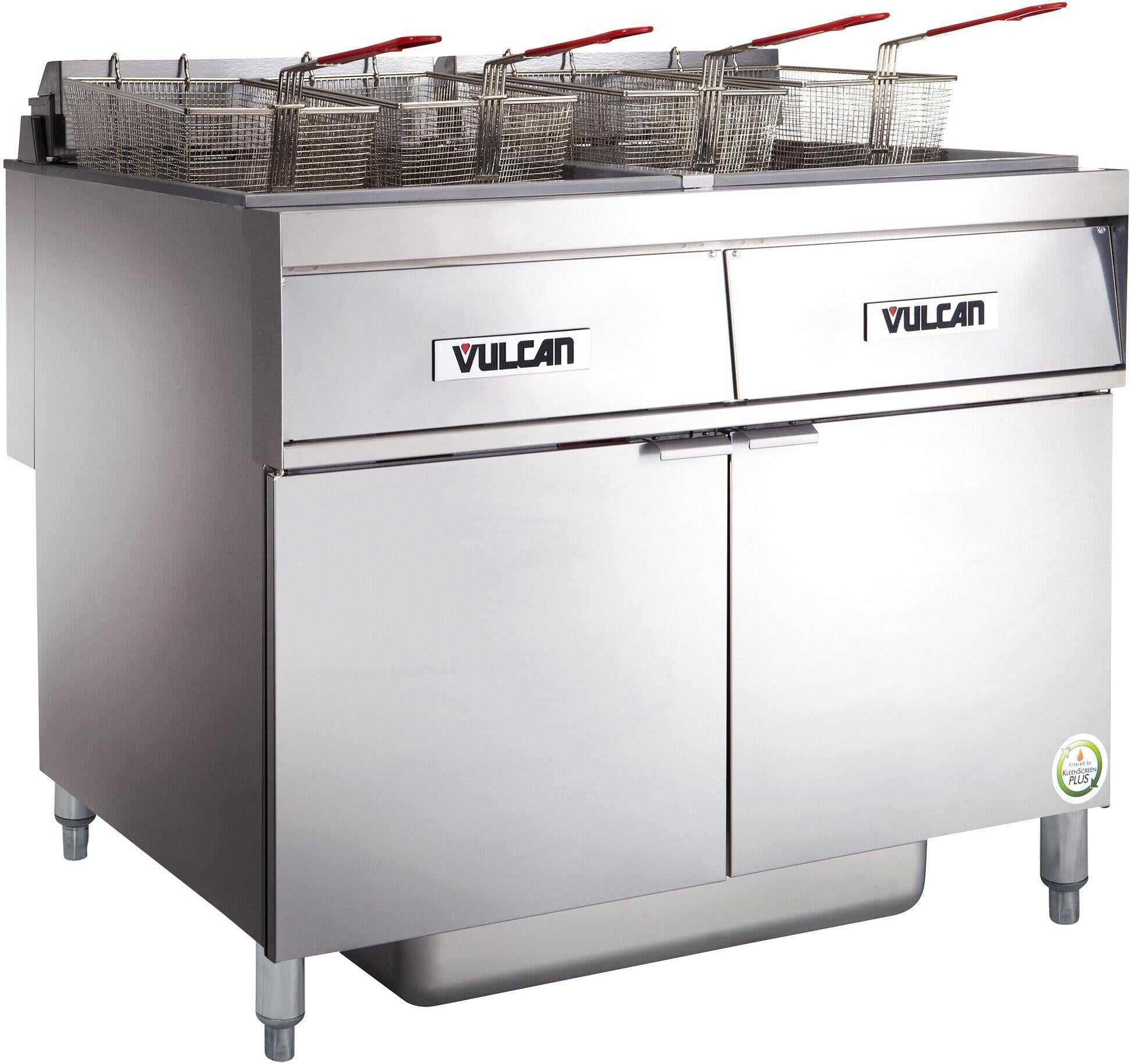

Vulcan - 2-Tank 100 lb Total Capacity Electric Floor Fryer, Analog Controls, KleenScreen Filtration - 2ER50AF-2
Model Number: HOBA-2ER50AF-2
Description
The Vulcan 2-Tank 100 lb Total Capacity Electric Floor Fryer, Analog Controls, KleenScreen Filtration is a commercial fryer built for consistent frying in restaurants, cafés, bars, concessions, cafeterias, and other commercial kitchens. Vulcan model 2ER50AF-2 is specified with electric power, 480V, 3 Phase electrical configuration, 34 kW total power, and 100 lb total oil capacity, giving operators a dependable, application-ready configuration for busy commercial kitchens, institutional foodservice, catering operations, and back-of-house production areas.
Key Features
- Vulcan model 2ER50AF-2
- Product type: Fryers
- 100 lb capacity
- Analog controls
- KleenScreen filtration configuration
- Series: PowerFry Electric ER Series
- Power source: Electric
- Voltage: 480V, 3 Phase
- Amperage per tank: 20 A
- Power per tank: 17 kW
- Total power: 34 kW
- Number of tanks: 2
- Oil capacity per tank: 50 lb
- Total oil capacity: 100 lb
- Certifications: ENERGY STAR certified, NSF listed, CSA design certified, UL
- Country of origin: USA
- Warranty: 1 Year Limited Parts and Labor
- Tank warranty: 10 Year Limited Fry Tank
Specifications
Dimensions
Width
31"
Depth
34-3/8"
Overall Height
39-7/16"
Working Height
35-3/4"
Tank Frying Area
14-1/8" x 15-1/2"
Shipping Weight
410 lb
Details
Type
Electric Floor Fryer
Series
PowerFry Electric ER Series
Model
2ER50AF-2
Power Source
Electric
Voltage
480V, 3 Phase
Amps per Tank
20 A
kW per Tank
17
Total kW
34
Number of Tanks
2
Oil Capacity per Tank
50 lb
Total Oil Capacity
100 lb
Temperature Range
200 - 390 F (+/- 2 F)
Element Type
Low watt density ribbon-style, immersed
Efficiency
Up to 85% cooking efficiency
Control Type
Solid State Analog Knob
Frypot Material
16-gauge Stainless Steel
Cabinet Material
Stainless Steel front and sides
Drain Valve
1-1/4" Full-Port Ball Valve with Drain Valve Interlock (DVI)
Baskets
Twin Fry Baskets with Plastic-Coated Handles
Legs
Four 6" adjustable legs (casters optional)
Filtration
Built-in KleenScreen PLUS, 1/3 HP pump, 8 GPM, one-touch activation
Filter Pan Capacity
56 lb
Canada Availability
480V models are NOT for sale in Canada
Control Circuit
Requires separate 120V, 1 Ph, 20A service
Warranty / Certifications
Certifications
ENERGY STAR certified, NSF listed, CSA design certified, UL
Country of Origin
USA
Warranty
1 Year Limited Parts and Labor
Tank Warranty
10 Year Limited Fry Tank
