Vollrath - Two-Well 120V Hot, Cold, Frozen Drop-In Unit - FC-HCF-02120
Model Number: VOLL-FC-HCF-02120
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
120V
This product requires 120V.
NEMA 5-15P
Single Phase
This product requires single phase power, common in commercial establishments and restaurants.
NSF Certified
This product has met requirements for safety, quality, sustainability & performance standards set by the NSF group.
UL Certified
This product has been tested and meets safety standards imposed by hte Underwriters Laboratories.
Description

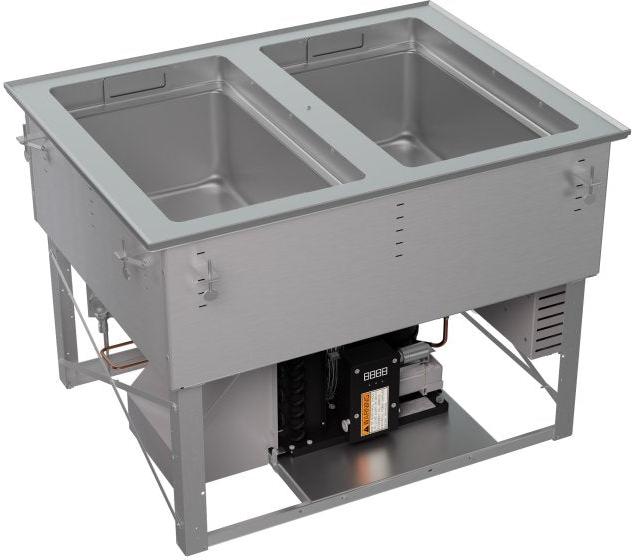

The Vollrath FC-HCF-02120 Two-Well 120V Hot, Cold, Frozen Drop-In Unit is engineered for dependable commercial foodservice use in buffet lines, serving counters, institutional dining, catering operations, and flexible foodservice stations. Crafted from rugged 18-gauge, 300-series stainless steel, this unit is built to withstand heavy use while maintaining its sleek appearance. The foamed-in-place polyurethane insulation and well-wrapped refrigeration coils ensure energy efficiency and consistent performance. Using eco-friendly R290 refrigerant, the component minimizes environmental impact without sacrificing functionality. Designed for flexibility, it accommodates full-size and fractional food pans up to 6 inches deep, with a 2-inch stepped cold-wall recess that maintains NSF compliance by creating a cold-air blanket over food. With features like a built-in ¾-inch integral drain, optional auto-drain capabilities, and flexible mounting options for counters up to 3 inches thick, this innovative solution simplifies installation, cleaning, and operation to keep your kitchen running smoothly. Rugged 18-gauge, 300-series stainless steel construction for durability. Independent well operation in hot, cold, or frozen modes. Eco-friendly R290 refrigerant with a lower GWP (Global Warming Potential).
Key Features
- Rugged 18-gauge, 300-series stainless steel construction for durability
- Independent well operation in hot, cold, or frozen modes
- Eco-friendly R290 refrigerant with a lower GWP (Global Warming Potential)
- User interface with 4' (1.2 m) connection for flexible mounting
- Wrapped refrigeration coils for maximum cooling efficiency
- Foamed-in-place polyurethane insulation enhances thermal performance
- Standard mounting clips included for installation on counters up to 3" (7.6 cm) thick
- 2" cold-wall recess creates cold-air blanket for NSF compliance
- Compatible with full-size and fractional pans up to 6" deep
- ¾" integral drain simplifies water removal
- Designed for buffet lines, serving counters, institutional dining, catering operations, and flexible foodservice stations
Specifications
Dimensions
Width
33.9"
Depth
26"
Height
24.4"
Cutout Width
33"
Cutout Depth
25.25"
Cord Length
72"
Details
Product Type
Hot, Cold and Frozen Drop-In Unit
Number of Wells
2
Well and Flange Material
300-Series Stainless Steel
Insulation
Polyurethane
Voltage
120V
Amperage
10.3 A
Power
625 per well W
Horsepower
0.25 hp
Plug
NEMA 5-15P
Refrigerant
R290
Weight
185 lbs
Warranty / Certifications
Warranty
2 Year
Made in USA
Made in USA
R290 refrigerant (low GWP)
R290 refrigerant (low GWP)
2" cold-wall recess for NSF compliance
2" cold-wall recess for NSF compliance
