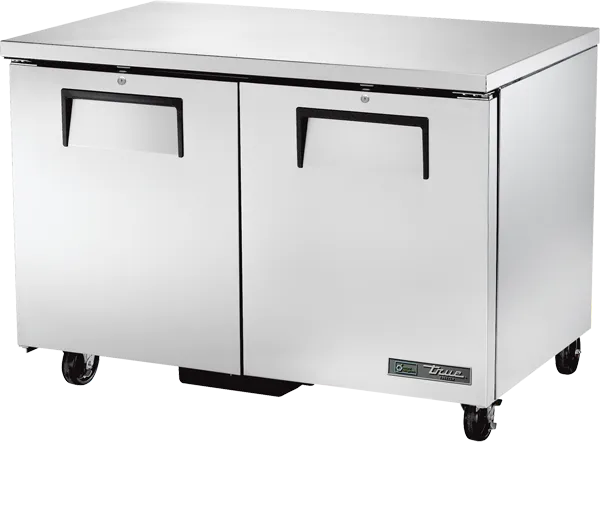

TRUE - 48" Undercounter Two Solid Doors Freezer with Hydrocarbon Refrigerant - TUC-48F-HC

The TRUE 48" Undercounter Freezer is a reliable and space-saving solution for commercial kitchens, offering optimal freezing capabilities with the added benefit of hydrocarbon refrigerant. Designed with a two solid door configuration, this freezer provides easy access to frozen items while maintaining consistent temperatures to keep your food products safely stored. The hydrocarbon refrigerant ensures that the unit is both energy-efficient and eco-friendly, making it an ideal choice for environmentally conscious businesses.

Design

• True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today’s food service marketplace.

Refrigeration System

• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).

• Energy efficient, factory balanced refrigeration system with guided airflow to provide uniform product temperatures.

• High capacity, factory balanced refrigeration system that maintains -10°F (-23.3°C) temperatures. Ideal for both frozen foods and ice cream.

• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.

• Condensing unit access in back of cabinet, slides out for easy maintenance.

• Automatic defrost system time-initiated, time-terminated.

Cabinet Construction

• Exterior - stainless steel front, top and ends. Corrosion resistant GalFan coated steel back.

• Interior - attractive, clear coated aluminum liner. Stainless steel floor with coved corners.

• Insulation - entire cabinet structure and solid doors are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).

Doors

• Stainless steel exterior with clear aluminum liner to match cabinet interior.

• Each door fitted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.

• Positive seal self-closing doors with 90° stay open feature. Doors swing within cabinet dimensions.

• Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.

Shelving

• Four (4) adjustable, heavy duty PVC coated wire shelves 21–9/16”L x 16”D (548 mm x 407 mm). Four (4) chrome plated shelf clips included per shelf.

• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

Model Features

• Evaporator is epoxy coated to eliminate the potential of corrosion.

• NSF/ANSI Standard 7 compliant for open food product.

Electrical

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.

• NEMA-5-15R

Optional Features/accessories Upcharge And Lead Times May Apply.

• 230V/50Hz

• 6" (153 mm) standard legs.

• 6" (153 mm) seismic/flanged legs.

• 2–1/2" (64 mm) diameter castors.

• Barrel locks (factory installed). Requires one per door.

• Single overshelf.

• Double overshelf.

• Stacking collar.

• 30" (762 mm) deep,–1/2" (13 mm) thick, white polyethylene cutting board. Requires “L” brackets.

• 30" (762 mm) deep,–1/2" (13 mm) thick, composite cutting board. Requires “L” brackets.

• Heavy duty 16 gauge tops.

• Exterior rectangular digital temperature display (factory installed).

• ADA compliant models with 34" (864 mm) work surface height.

• Low profile models with 31–7/8" (810 mm) work surface height.
