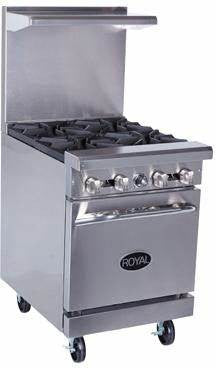

Royal - 24" Delux Stainless Steel 4 Open Burners Gas Range with One 20" Wide Oven and 2" Rear Step Up - RDR-4SU
Model Number: CELC-RDR-4SU
Description
=The Royal 24" Delux Stainless Steel Gas Range with a 20" Wide Oven is the ultimate cooking companion for both professional chefs and home cooks. Crafted with precision and quality in mind, this gas range boasts a durable stainless steel construction that not only adds a touch of elegance to your kitchen but also ensures longevity and easy maintenance. The 20" wide oven provides ample space for baking, roasting, and broiling, while the 24" cooktop features powerful burners to facilitate a wide range of culinary tasks, from sautéing and boiling to simmering. With its efficient design and reliable performance, the Royal Delux Gas Range is your key to achieving culinary excellence and creating delectable dishes that will leave a lasting impression.
Standard Features:

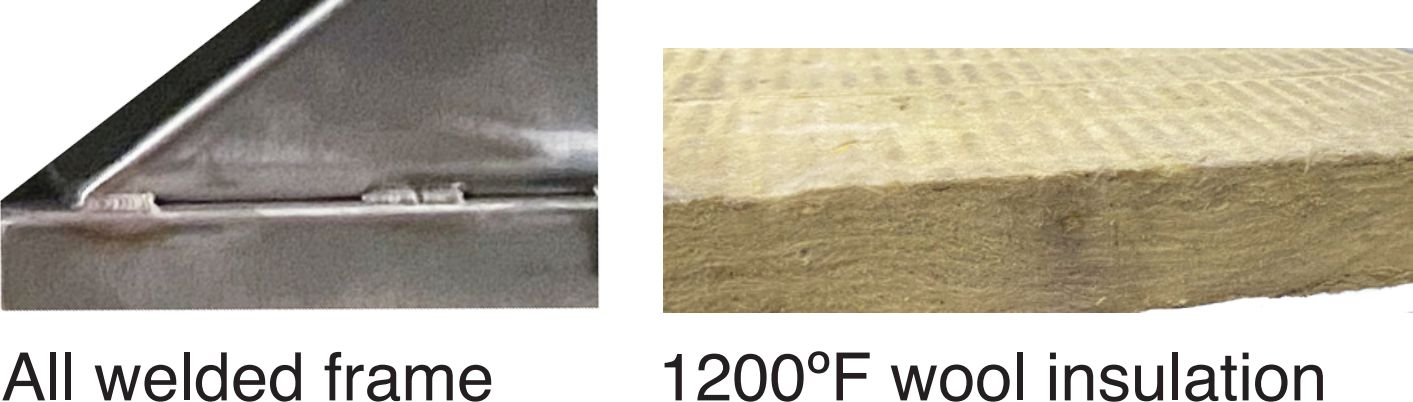

- Fully welded frame with lifetime warranty
- All stainless steel burner box
- 1,200°F mineral wool insulation
- Stainless steel drip tray/grease can
- Accommodates 18” x 26” full sheet pan
- Stainless steel front, sides, valve cover and kick plate including backguard and high shelf
- Stainless Steel oven “U” burner rated at 27,000 BTU/hr
- Oven pilot with 100% safety shut down
- Two piece, heavy duty lift off cast iron burner heads rated at 30,000 BTU/hr each
- 12” x 12” cast iron top grates with pilot shield
- Five position heavy gauge chrome rack guides
- One chrome rack per oven
- Five surface porcelain oven interior
- Stainless steel tubing for burners and pilots
- 3/4” thick polished steel griddle plate
Options and Accessories
- 6” high S/S stub back in lieu of high shelf
- 1” thick griddle plate
- Griddle on right (Left hand side standard)
- Chrome griddle plate
- Grooved griddle
- One thermostat per burner (GT Griddle Series)
- 12” hot top section - add suffix “-HT”
- 9” deep S/S landing ledge, with or without sauce pan cutouts
- Additional oven racks
- Open storage cabinet base - add suffix “-XB”
- Cabinet doors
- Intermediate shelf
- Wok burner head with 10” diameter S/S ring
- 48” quick disconnect and restraining cable
- 5” swivel casters (set of four - 2 locking)
Specifications

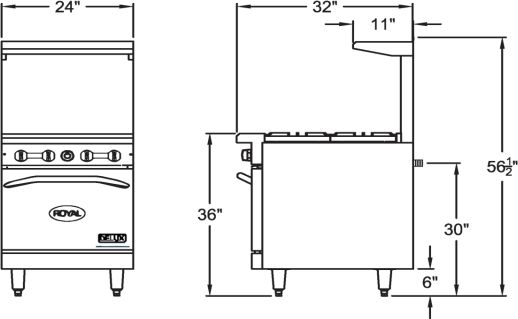

Dimensions
Width
24"
Depth
31.5"
Height
56.5"
Details
Weight
410 lb
Open Burners
4
Rear Step Up
2
Oven Size
20"
Mineral Wool Insulation
1,200°F
Accommodates Full Sheet Pan
18” x 26”
Burner Shape
U
Top Grates
Cast Iron
Top Grates Size
12” x 12”
Position Heavy Gauge Chrome Rack Guides
Five
Chrome Rack Per Oven
One
Surface Porcelain Oven Interior
Five
Thickness Steel Griddle Plate
0.75"
Gas Connection
3/4” NPT On The Right Hand
Total BTU
147,000
Gas Pressure (Natural)
5” W.C.
Gas Pressure (Propane)
10” W.C.
Clearances / Combustible / Rear
4"
Clearances / Combustible / Sides
15"
Model
RDR-4SU
Item Condition
New
Warranty / Certifications
Warranty
2 Years Limited Part And Labor Warranty
Certification
CSA Certified
Certification
NSF Certified
