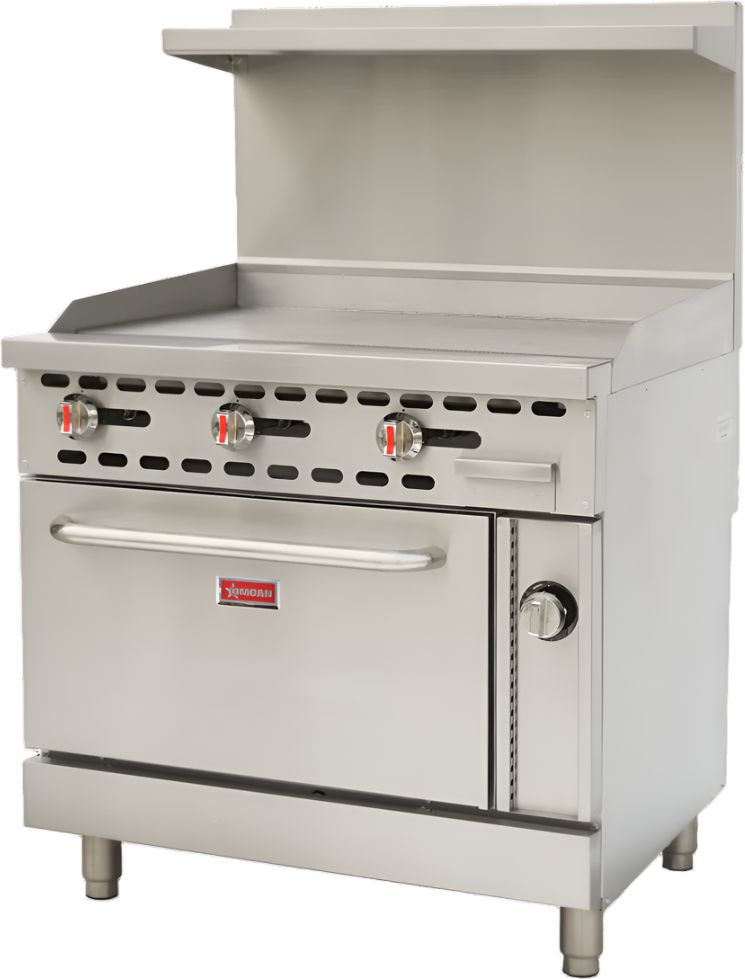

Omcan - 36" 93,000 BTU Commercial Natural Gas Range with 36" Griddle and Standard Oven - 48189
Model Number: OMCA-48189
Description
The Omcan 36" Commercial Natural Gas Range is a powerhouse in any professional kitchen, featuring a robust 36" griddle and a high-performance standard oven. With a total output of 93,000 BTU, this range boasts a U-shaped griddle burner that delivers 21,000 BTU/hr for natural gas and 23,000 BTU/hr for LPG. The oven's thermostat ranges from 250℉ to 550℉, ensuring precise temperature control for all your baking needs. Constructed with a welded frame for optimal stability, the range also includes a 36" x 22" griddle plate with a 5/8" thickness and splash guard, adjustable heavy-duty legs, and a convenient oil collector with a handle. The U-shaped oven burner provides 30,000 BTU/hr, complemented by a thermal coupling safety valve for enhanced security. Additional features include a stainless steel oven door with superior insulation, a durable stainless steel handle for the bottom oven, and an easy-access kick plate for servicing. Compatible with a ¾” NPT gas connection (gas hose sold separately), this range is a versatile and reliable choice for any commercial kitchen.
Key Features:
- Stainless steel front and galvanized sides
- U shape griddle burner with 21,000 BTU/hr for natural gas and 23, BTU/hr for LPG
- Thermostat (250℉- 550 ℉ ) controlled oven
- Welded frame structure for best stability
- 36 ” x 22″ griddle plate(5/8″ thickness) with splash guard
- Adjustable heavy-duty legs
- Oil collector with handle
- U-Shape oven burner with 30,000 BTU/hr
- Thermal coupling safety valve for the oven
- Stainless steel oven door with good insulation
- Stainless steel handle for bottom oven
- Kick plate at the bottom, easy access for servicing
- Compatible with ¾” NPT gas connection (Gas Hose sold separately)
Specifications
Dimensions
Width
36"
Depth
32.6"
Height
56.7"
Details
Net Weight
456 lb. or 207 Kg.
Exterior Material
Stainless Steel Front And Galvanized Sides
Gas Inlet Size
¾” Npt Gas Connection
Total Btu Per Hour
93,000 Btu
Griddle
21,000 X 3 Btu
Oven
30,000 Btu
Temperature Range
250°F - 550°F
Oven Temp. Range: 121.1°C - 287.8°C (250 - 550°F)
Oven Temp. Range: 121.1°C - 287.8°C (250 - 550°F)
Burner Style
Natural Gas (Ng)
Number Of Burners
3 Burner
Number Of Ovens
1 Standard Oven
Warranty / Certifications
Warranty
1 Year Parts And Labor
Certification
cETLus Listed
Certification
ETL
