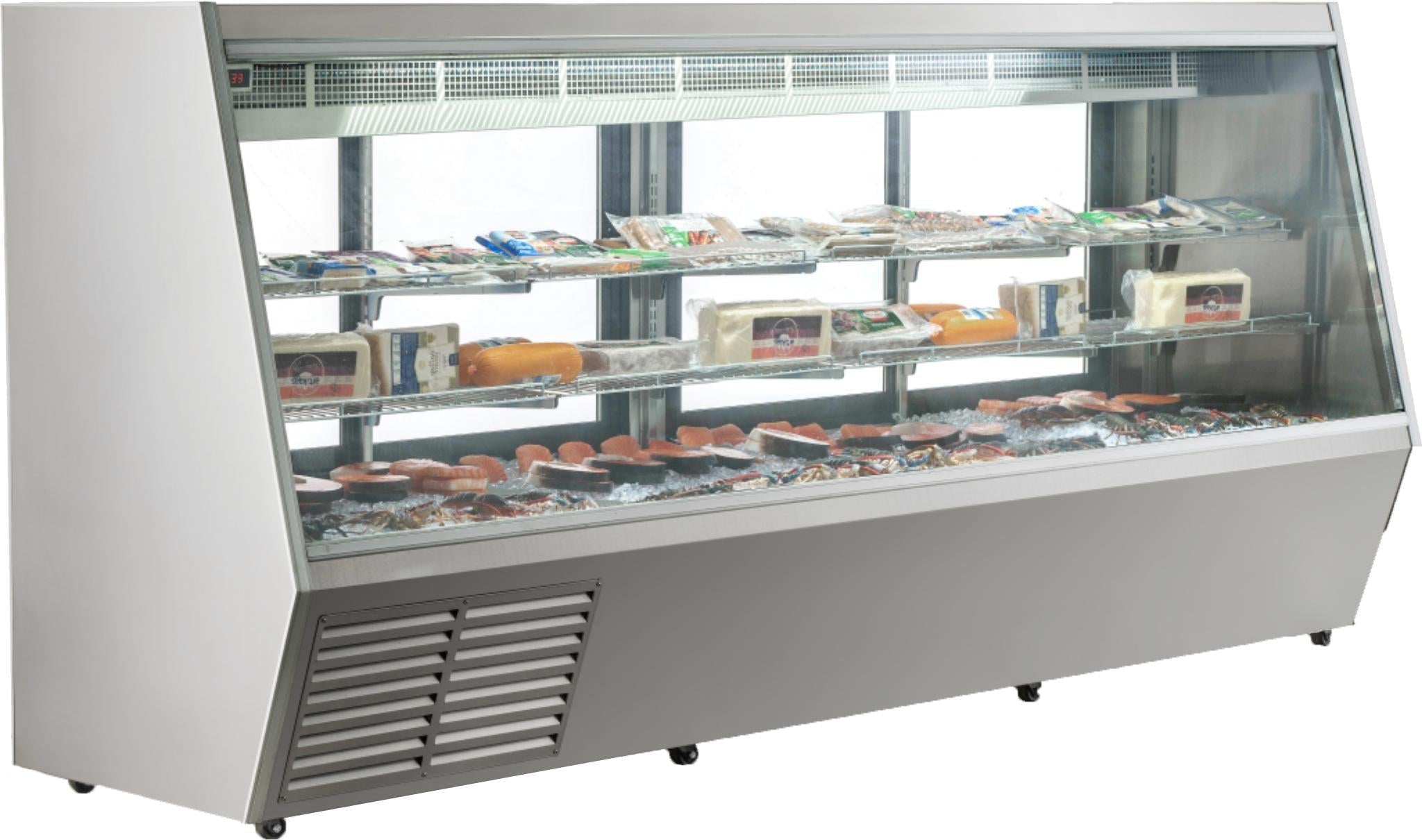

New Air - 96" Gravity Coil Refrigerated Deli Display Case - NDDC-96-GC
Model Number: DIST-NDDC-96-GC
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description
The New Air NDDC-96-GC is a 96" gravity coil deli case holding 1,668 L, or 58.9 cu. ft., in a single run. Eight feet of continuous display suits supermarket service departments and large specialty grocers that merchandise meat, cheese and prepared foods as one uninterrupted line. Cooling comes from a gravity coil, so no fan blows across the open product.
Everything visible is stainless steel, exterior and interior alike. Adjustable glass shelves take LED lighting above and below, and two rear sliding glass doors handle loading from the staff aisle. Despite the width, the case draws 550W at 5A and plugs into a single NEMA 5-15P receptacle on 110V. Shipping weight is 597 lbs in a 97.75" crate, so plan the receiving door and floor path before delivery.
Key Features:
- 1,668 L of refrigerated display, 58.9 cu. ft. in one 95.38" run
- Gravity coil refrigeration with the main cabinet at 2°C to 12°C and no forced airflow
- Stainless steel exterior and interior
- Two rear sliding glass doors serving the full display length
- LED lighting on top of and under each adjustable glass shelf
- R290 refrigerant on a single 110V circuit at 550W and 5A
Specifications
Dimensions
Dimensions (W x D x H)
95.38" x 33.63" x 55.38"
Boxed Dimensions (W x D x H)
97.75" x 36.00" x 61.50"
Net Weight
597 lbs (271 kg)
Details
Model
NDDC-96-GC
Total Capacity
1668 L / 58.9 Cu. Ft
Color
Stainless Steel Exterior & Interior
Cooling System
Gravity Coil
Shelves
Adjustable Glass Shelves
Lighting
LED On Top & Under Each Shelf
Refrigerant
R290 (CFC-Free)
Main Cabinet Temperature
2°C to 12°C
Lower Chamber Temperature
0°C to 4°C
Ambient Rating
30°C Max / 55% RH Max
Temperature Controller
Digital Controller with LED Display
No. Of Doors
2 (Rear Sliding Glass)
Power Consumption
550W
Voltage
110V
Amps
5.0A
Hertz
60
Phase
Single Phase
Nema
5-15P
Item Condition
New
Warranty / Certifications
Warranty
2 Years Parts & Labour, 5 Years Compressor
