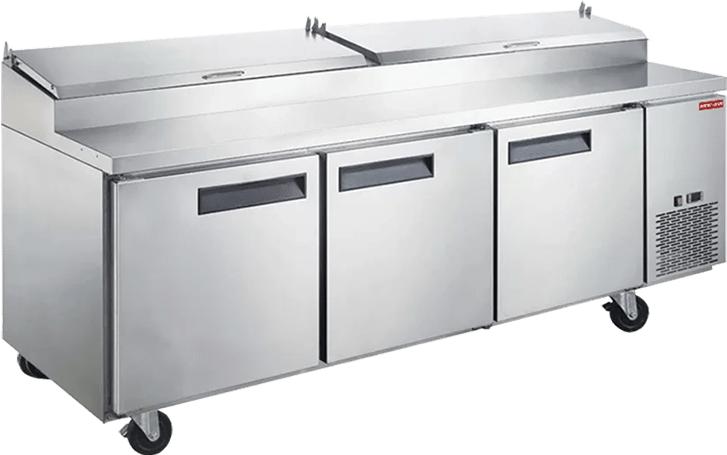

New Air - 90" Refrigerated Pizza Prep Table - NPT-092-PI
Model Number: DIST-NPT-092-PI
Description
The New Air NPT-092-PI is the largest refrigerated pizza prep table in this family, with three self-closing door sections and a rail holding 12 clear plastic 1/3 size pans. It suits high volume pizzerias and production kitchens that build to order across a long line. Refrigerated storage below runs to 684 L, more than a third again what the 70" model offers.
Stainless steel forms the interior and exterior with sealed interior floors, and 3 adjustable heavy duty shelves divide the cabinet. The interior measures 69.50" x 31.50" x 26.00", deep enough for full cases of dough balls rather than decanted tubs. A 620W rear-mounted compressor charged with R290 holds 0.5°C to 5°C and pulls 8.5A at 115V, so this unit wants its own 15A circuit even though it uses an ordinary NEMA 5-15P plug.
Key Features:

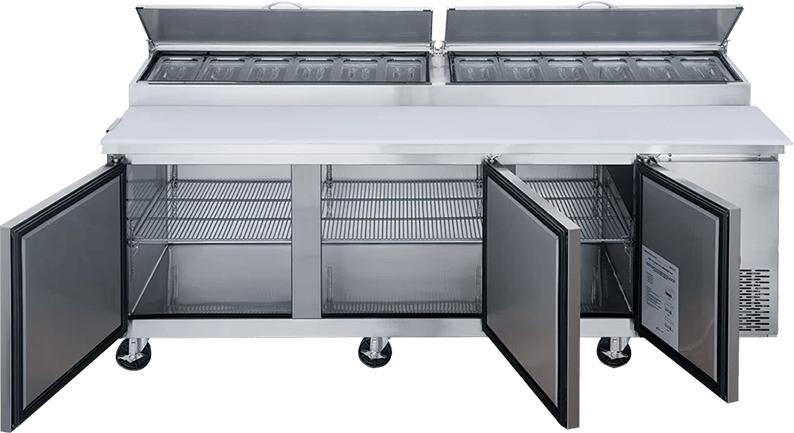

- 12 x 1/3 size pans on the rail, included with the table, cover a full-length topping line without a second station
- 684 L (24.15 Cu. Ft) behind three self-closing doors on 3 adjustable heavy duty shelves
- Interior of 69.50" x 31.50" x 26.00" takes full cases rather than requiring product to be broken down
- 19" deep cutting board runs the length of the rail for stretching and topping in place
- 620W R290 system with automatic defrost holds 0.5°C to 5°C across all three sections
- Delivered on casters, two with brakes, so a 423 lb cabinet can still be rolled out for cleaning
Specifications
Dimensions
Dimensions (W x D x H)
90.38" x 35.38" x 43.88"
Interior Dimensions (W x D x H)
69.50" x 31.50" x 26.00"
Cutting Board Depth
19.00"
Net Weight
423 lbs (191.8 kg)
Details
Model
NPT-092-PI
Capacity
684 L / 24.15 Cu. Ft
No. Of Doors
3 (Solid, Self-Closing With Stay-Open Feature)
No. Of Shelves
3 (Adjustable) Heavy Duty Shelves
Pan Capacity
12 x 1/3 Size Pans (Clear Plastic Pans Included)
Pan Size
1/3 Size Pan (12.75" x 7.00")
Refrigerant
R290 (CFC-Free)
Temperature Range
0.5°C to 5°C
Ambient Temperature
25°C
Ambient Humidity
55%
Temperature Controller
Front-Mounted Digital Control With On/Off Switch
Defrosting
Automatic
Power Consumption
620W
Voltage
115V
Amps
8.5A
Hertz
60
Nema
5-15P
Horsepower
1/2 HP (Embraco)
Compressor Location
Rear Mounted
Castors
2 With Brakes
Exterior Material
Stainless Steel
Interior Material
Stainless Steel, Sealed Interior Floors
Insulated Lids
Yes
Item Condition
New
Warranty / Certifications
Warranty
3 Years Parts & Labour / 2 Additional Years Compressor Coverage
