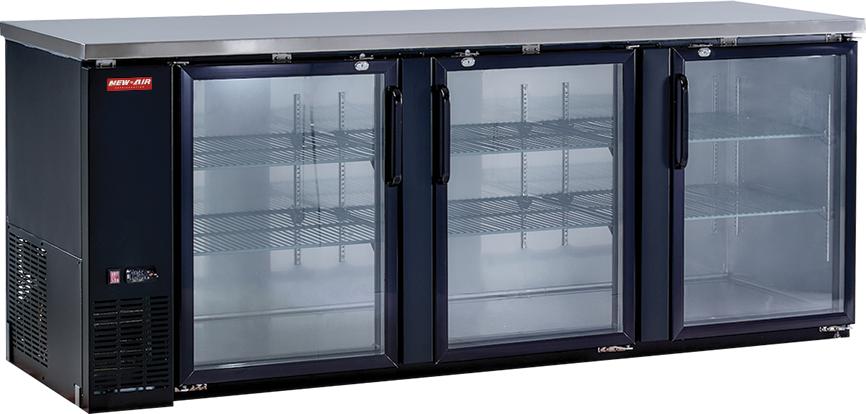

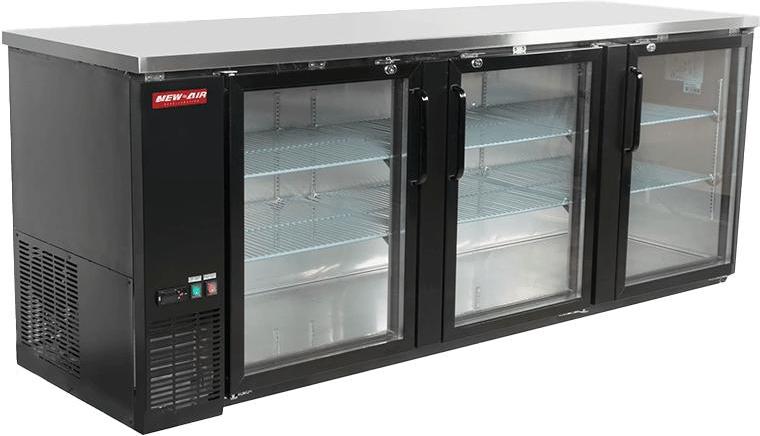

New Air - 90" Glass Door Back Bar Cooler - NBB-90-SG
Model Number: DIST-NBB-90-SG
Description
The NBB-90-SG is a 90.50" glass door back bar cooler carrying 916 L, or 32 cu. ft., behind three self-closing glass doors. It fits busy bars and hotel bars that want a long merchandised run of bottled product within reach of the pour station. Six adjustable shelves split the load across the three compartments.
Cabinet depth is 27.75" and height is 36.25", with an interior of 77.75" x 22.00" x 30.50" and shelves at 25.00" x 21.50". A 1/4 HP R290 circuit under Carel digital control holds 0°C to 5°C, and interior LED lighting keeps labels readable through the glass. The unit weighs 364 lbs net and draws 4.7 A at 115V/60Hz on a NEMA 5-15P plug.
Key Features:
- Three glass doors merchandise the full 916 L, so staff and guests can identify stock without opening the cabinet.
- Interior LED lighting lights a 77.75" wide display run and keeps labels legible.
- Six adjustable shelves at 25.00" x 21.50" reposition per compartment for cans or tall bottles.
- 1/4 HP R290 system maintains 0°C to 5°C over 32 cu. ft. through repeated door openings.
- Self-closing doors with locks mean the cabinet secures itself at end of service.
- Backed by 2 years parts and labour with 3 additional years on the compressor.
Specifications
Dimensions
Dimensions (W x D x H)
90.50" x 27.75" x 36.25"
Interior Dimensions (W x D x H)
77.75" x 22.00" x 30.50"
Shelf Dimensions (W x D)
25.00" x 21.50"
Net Weight
364 lbs
Gross Weight
381 lbs
Details
Model
NBB-90-SG
Capacity
916 L / 32 Cu. Ft
No. Of Doors
3
Door Type
Swing, Self-Closing, Glass With Lock
No. Of Shelves
6 (Adjustable)
Refrigerant
R290 (CFC-Free)
Temperature Range
0°C to 5°C
Temperature Controller
Carel Digital Temperature Controller
Voltage
115V
Amps
4.7A
Hertz
60
Nema
5-15P
Horsepower
1/4 HP
Lighting
Interior LED
Castors
Optional
Exterior Material
Stainless Steel Top
Item Condition
New
Warranty / Certifications
Warranty
2 Years Parts & Labour / 3 Additional Years On The Compressor
