New Air - 84" Gravity Coil Refrigerated Deli Display Case - NDDC-84-GC
Model Number: DIST-NDDC-84-GC
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description

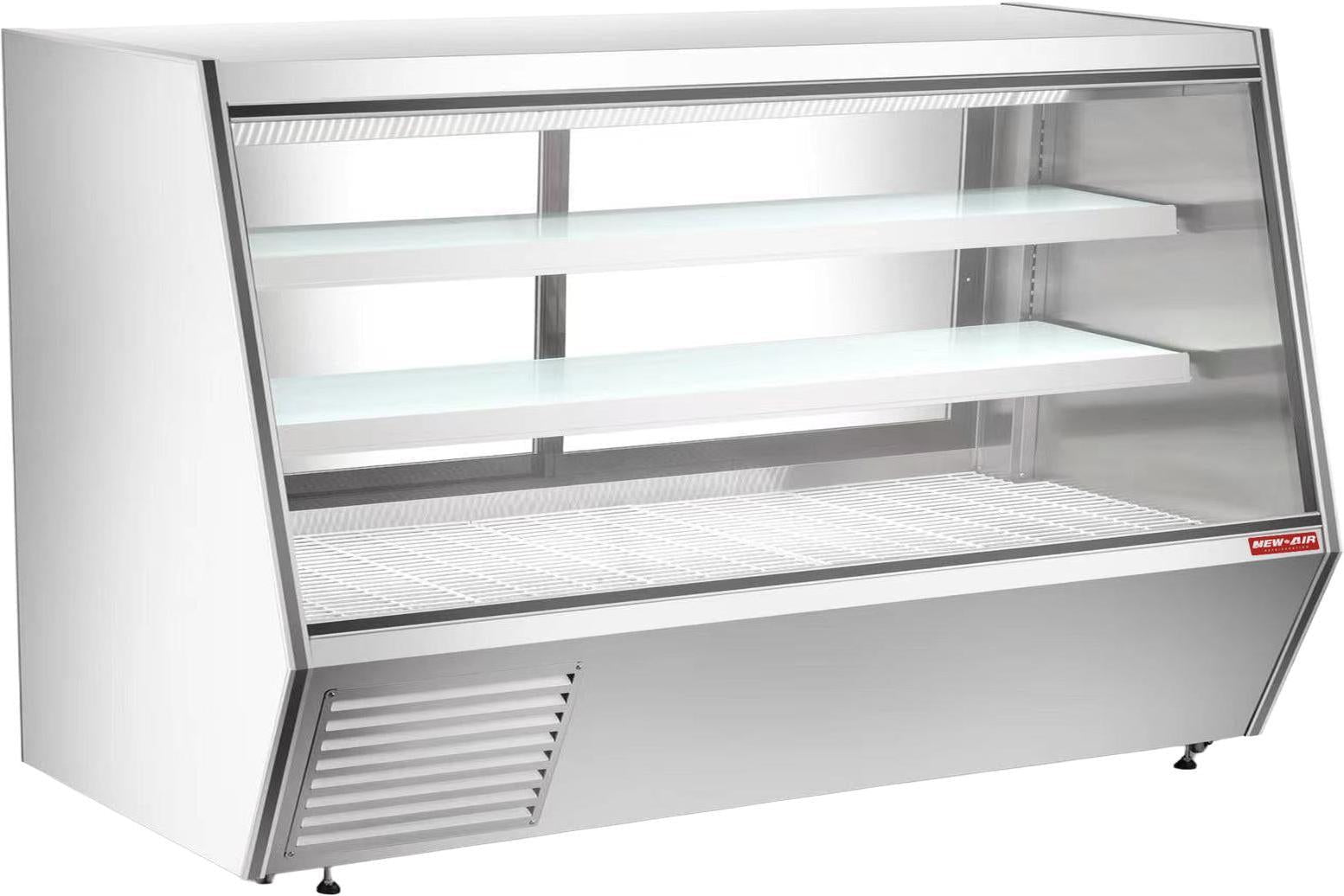

The New Air NDDC-84-GC is a 84" gravity coil deli case for high-volume service counters. Seven feet of frontage carries 1,148 L of display capacity with 295 L of refrigerated storage below, 50.9 cu. ft. in total, which is roughly double what the 48" model in this family holds. Grocery service departments and full-line butcher shops are the usual fit.
Stainless steel forms both the exterior and the interior, and adjustable glass shelves carry LED strips above and below. Gravity coil cooling drops chilled air over the product without a fan stream, so trays of sliced meat and cut cheese can sit out through a shift without crusting. Draw is 550W at 5A on 110V, still within a single NEMA 5-15P receptacle despite the length, and the case ships crated at 86.00" wide weighing 507 lbs.
Key Features:
- 1,148 L display cabinet plus 295 L of refrigerated lower storage, 50.9 cu. ft. together
- Gravity coil cooling with no forced air across open product, main cabinet 2°C to 12°C
- Stainless steel exterior and interior on an 84.00" service line
- Two rear sliding glass doors for staff-side loading
- LED lighting on top of and beneath each adjustable glass shelf
- 550W at 5A on one 110V NEMA 5-15P circuit, R290 refrigerant
Specifications
Dimensions
Dimensions (W x D x H)
84.00" x 33.63" x 55.38"
Boxed Dimensions (W x D x H)
86.00" x 36.00" x 61.50"
Net Weight
507 lbs (230 kg)
Details
Model
NDDC-84-GC
Main Cabinet Capacity
1148 L / 40.5 Cu. Ft
Lower Chamber Capacity
295 L / 10.4 Cu. Ft
Total Capacity
1443 L / 50.9 Cu. Ft
Color
Stainless Steel Exterior & Interior
Cooling System
Gravity Coil
Shelves
Adjustable Glass Shelves
Lighting
LED On Top & Under Each Shelf
Refrigerant
R290 (CFC-Free)
Main Cabinet Temperature
2°C to 12°C
Lower Chamber Temperature
0°C to 4°C
Ambient Rating
30°C Max / 55% RH Max
Temperature Controller
Digital Controller with LED Display
No. Of Doors
2 (Rear Sliding Glass)
Power Consumption
550W
Voltage
110V
Amps
5.0A
Hertz
60
Phase
Single Phase
Nema
5-15P
Item Condition
New
Warranty / Certifications
Warranty
2 Years Parts & Labour, 5 Years Compressor
