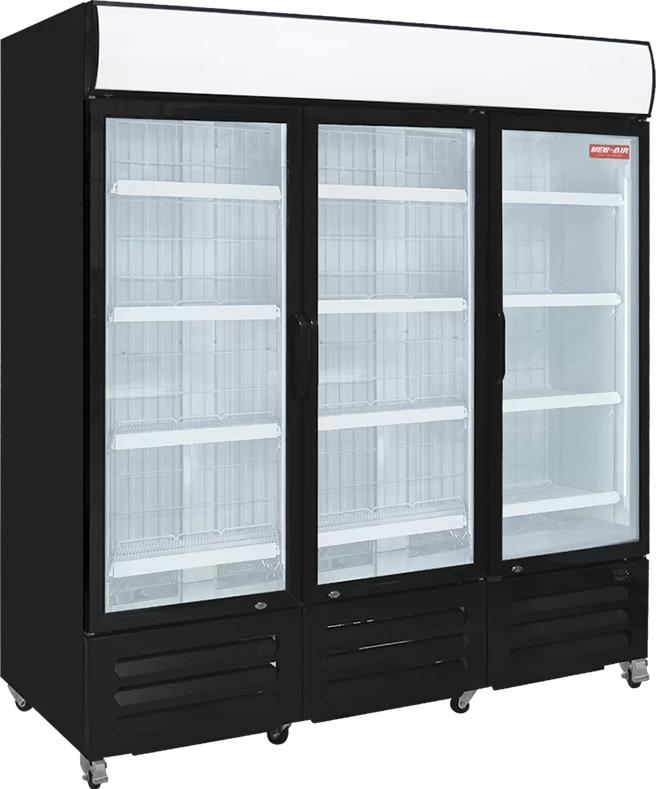

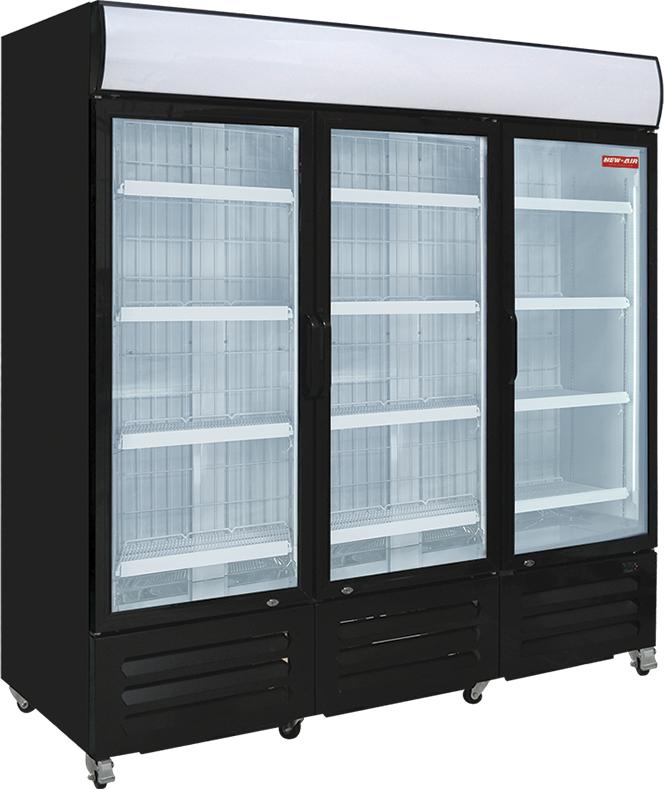

New Air - 78" Triple Glass Door Freezer Merchandiser with Illuminated Canopy - NGF-182-H
Model Number: DIST-NGF-182-H
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description
The NGF-182-H is a 78" triple glass door freezer merchandiser for supermarkets and large-format convenience stores that need a full frozen wall in one cabinet. Three hinged doors front 1750 L (61.8 cu. ft.) held at -18°C to -22°C. Two compressors carry the cooling load across the 73.25" wide interior.
Twelve adjustable shelves measuring 25.00" x 25.00" give four levels behind each door, so a planogram can run consistently from end to end. Triple-pane tempered glass fronts the black cabinet and a backlit canopy spans all three doors for signage. The R290 system is controlled by a Carel digital controller with an LED display and draws 15.9 A through a NEMA 5-20P plug, so it needs a 20 A circuit rather than a standard 15 A outlet.
Key Features:
- Three hinged glass doors covering 1750 L (61.8 cu. ft.) in a single 78.13" wide cabinet
- Twelve adjustable 25.00" x 25.00" shelves across a 73.25" wide interior
- Dual compressors sized for the largest cabinet in the NGF canopy series
- Backlit LED canopy display sign running the full width above all three doors
- Triple-pane tempered glass holding -18°C to -22°C with a clear view of product
- Carel digital controller with LED display and a 15.9 A draw on a NEMA 5-20P plug
Specifications
Dimensions
Dimensions (W x D x H)
78.13" x 32.13" x 78.63"
Interior Dimensions (W x D x H)
73.25" x 25.50" x 48.00"
Shelf Dimensions (W x D)
25.00" x 25.00"
Net Weight
441 lbs
Details
Model
NGF-182-H
Capacity
1750 L / 61.8 Cu. Ft
Color
Black Exterior
No. Of Doors
3 (Hinged, Self-Closing With Stay-Open)
No. Of Shelves
12 (Adjustable)
Glass Type
Triple-Pane Tempered Glass
Lighting
LED Interior Lighting
Canopy / Header
Backlit LED Canopy Display Sign
Temperature Range
-18°C to -22°C
Temperature Controller
Carel Digital Controller With LED Display
Defrosting
Automatic
Refrigerant
R290 (CFC-Free)
Compressors
2
Casters
Yes (With Front Brakes)
Ambient Temperature
Less Than Or Equal To 25°C
Ambient Humidity
Less Than Or Equal To 55%
Voltage
100V
Amps
15.9A
Hertz
60
Phase
Single Phase
Nema
5-20P
Item Condition
New
Warranty / Certifications
Warranty
3 Years Parts & Labour / 2 Additional Years Compressor Coverage
