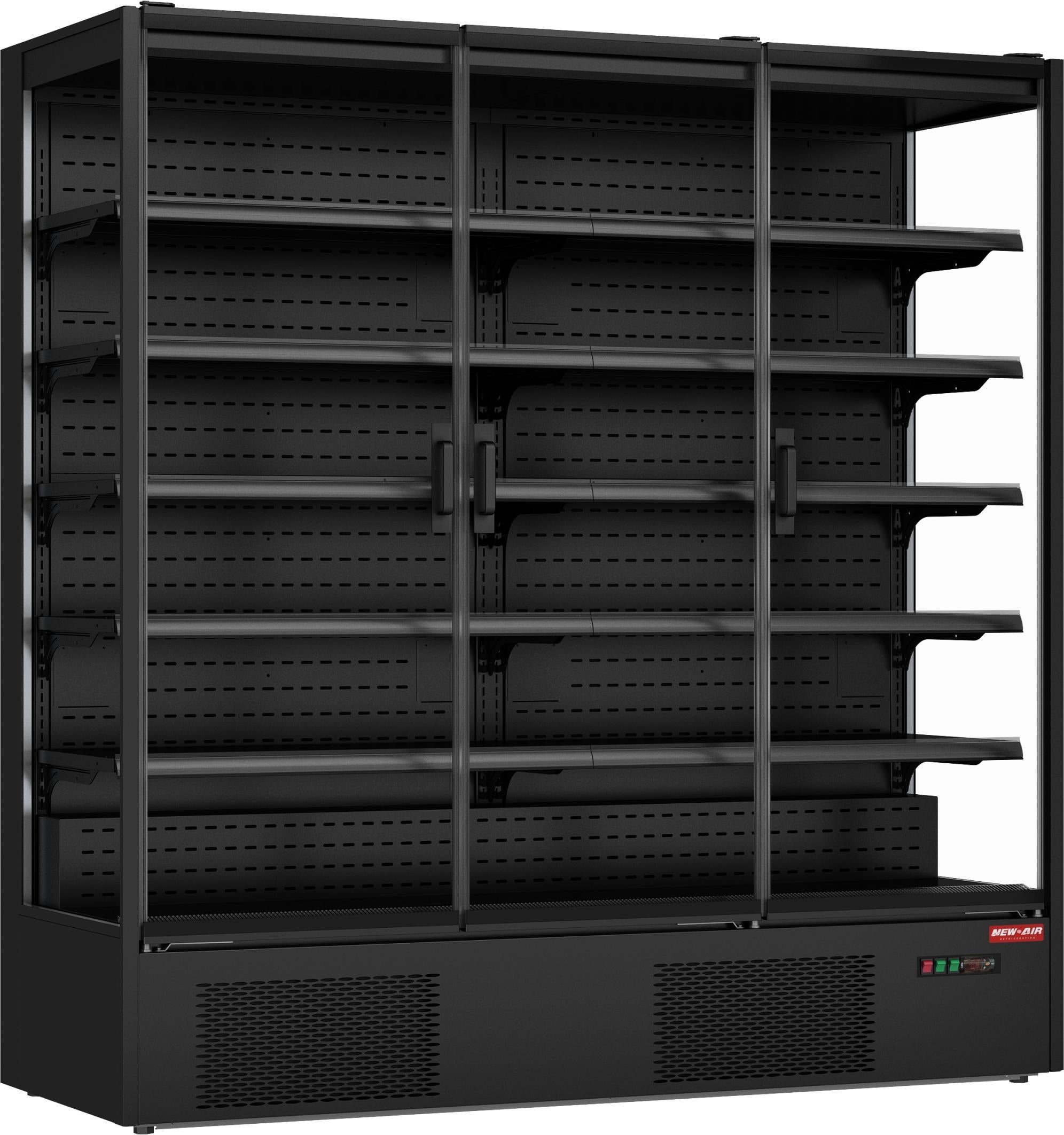

New Air - 74" Three Door Panoramic Multi Deck Refrigerated Merchandiser - NMD-74-3H
Model Number: DIST-NMD-74-3H
Description
Three hinged doors across a 73.88" cabinet give the NMD-74-3H a wide merchandising face for grocery and convenience retail. The frameless anti-glare glass doors carry glass side walls, so the display reads as one continuous run of product rather than three separate boxes. Capacity is 40.5 cu. ft.
Fifteen shelves sit across five levels, each one heavy duty and adjustable, with a price tag channel along the front edge for labelling without stick-on holders. Servicing happens from the front: a magnetic grill pulls off and the condenser slides out, so the cabinet does not have to be dragged away from the wall. The unit holds -1°C to 5°C, cold enough for dairy and packaged meats.
Key Features:
- 40.5 cu. ft. (1147 L) of display space behind three hinged, self-closing doors
- 15 shelves over 5 levels, each adjustable and fitted with a price tag channel for front edge labelling
- Frameless anti-glare glass doors with glass side walls across the full 73.88" face
- LED lighting on top of and under every shelf so the lower levels stay readable
- Magnetic front grill with a pull-out condenser, so cleaning is done from the aisle side
- -1°C to 5°C on R290 CFC-free refrigerant, drawing 7.0 A at 110V / 60Hz
Specifications
Dimensions
Dimensions (W x D x H)
73.88" x 29.13" x 78.75"
Net Weight
815.7 lbs (370 kg)
Details
Model
NMD-74-3H
Capacity
1147 L / 40.5 Cu. Ft
No. Of Doors
3 (Hinged, Self-Closing)
No. Of Shelves
15 (5 Levels, Heavy Duty Adjustable With Price Tag Channel)
Glass Type
Frameless Anti-Glare Glass Doors With Glass Side Walls
Lighting
LED On Top Of And Under Each Shelf
Refrigerant
R290 (CFC-Free)
Temperature Range
-1°C to 5°C (30°F to 41°F)
Ambient Temperature
≤ 25°C
Ambient Humidity
≤ 60%
Condenser
Pull-Out Condenser Behind Magnetic Front Grill
Controls
Front Mounted On/Off Switch
Voltage
110V
Amps
7.0A
Hertz
60
Nema
5-15P
Item Condition
New
Warranty / Certifications
Warranty
2 Years Parts & Labour / 5 Years Compressor (Per Omni Food Equipment Listing)
