New Air - 74" Black Triple Glass Door Refrigerated Merchandiser - NGR-74-HB
Model Number: DIST-NGR-74-HB
Description

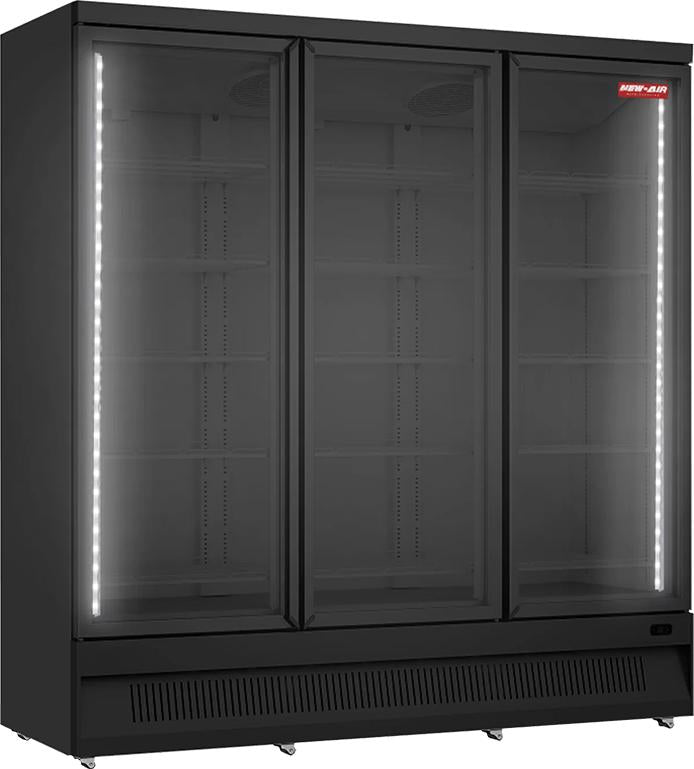

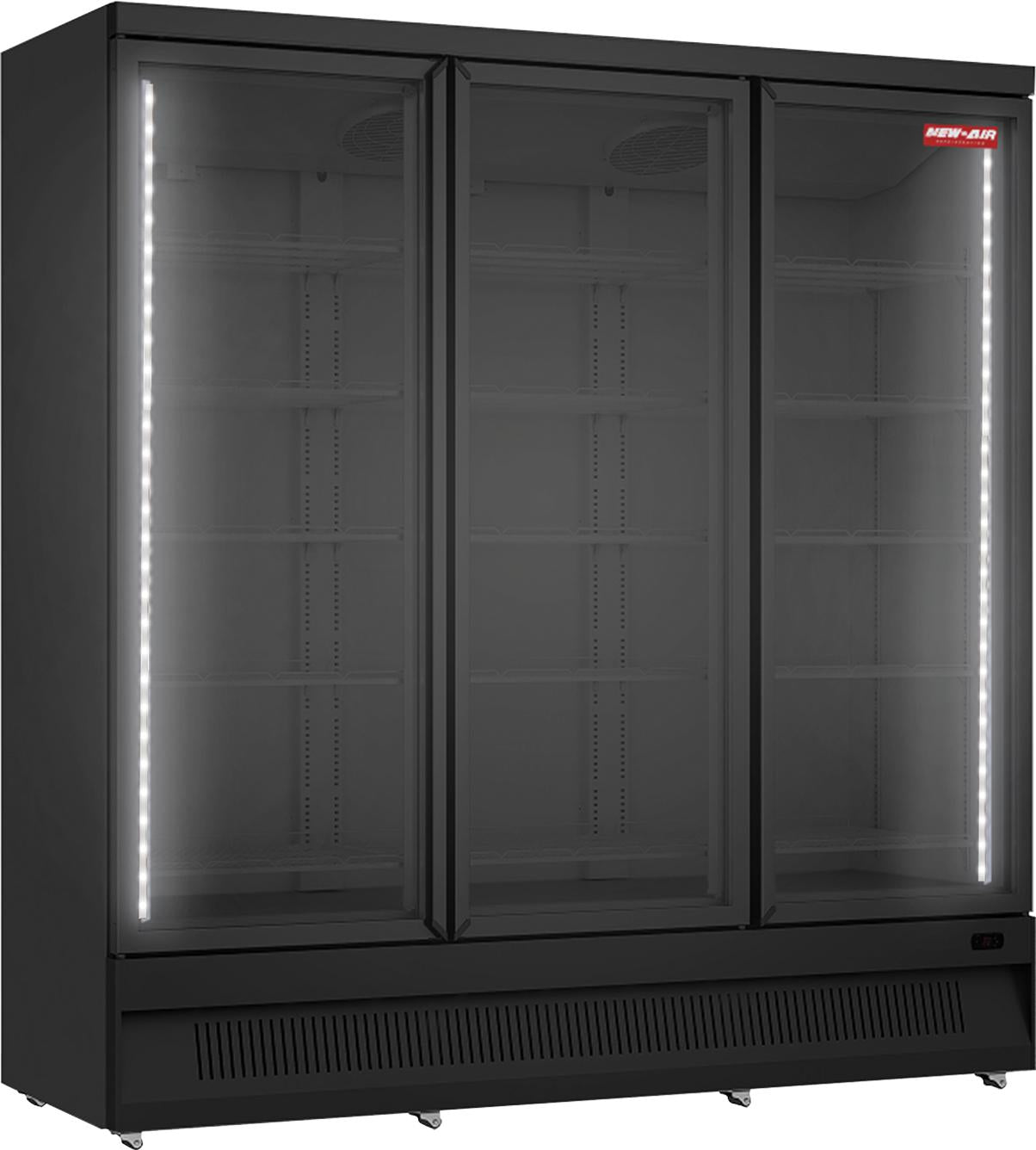

The NGR-74-HB is a three-door refrigerated merchandiser measuring 74 inches across, with 1664 litres of interior volume. It is the largest cabinet in the NGR glass-door range and works as a primary beverage or dairy wall in convenience stores, grocery and larger cafés. Fifteen adjustable shelves divide the case into five levels behind each of the three doors.
Each shelf measures 24 by 21 inches and the interior runs a full 72 inches wide, since the motor is integrated into the base and the aluminum door frames are narrow. A Carel digital controller with LED display holds 1°C to 10°C on R290 refrigerant. Despite the width, the whole cabinet runs at 7.4 amps on a single 115V outlet, the same draw as the two-door NGR-49-HB.
Key Features:
- 1664 L behind three hinged doors, the largest capacity in the NGR glass-door range
- Fifteen adjustable shelves at 24.00" x 21.00" across a 72.00" wide interior
- Three doors spread traffic across the case so several customers can shop it at once
- 7.4 A on one 115V / 60Hz NEMA 5-15P circuit, no higher service than the 49" two-door model
- Carel digital controller with LED display holding 1°C to 10°C on R290 CFC-free refrigerant
- Patented i-light lighting across double-pane tempered Low-E glass, with no canopy above the doors
Specifications
Dimensions
Dimensions (W x D x H)
74.00" x 29.13" x 80.25"
Interior Dimensions (W x D x H)
72.00" x 21.38" x 58.88"
Net Weight
458.5 lbs
Details
Model
NGR-74-HB
Capacity
1664 L / 58.75 Cu. Ft
Color
Black
No. Of Doors
3 (Hinged, Self-Closing With Lock)
No. Of Shelves
15 (Adjustable)
Shelf Dimensions (W x D)
24.00" x 21.00"
Glass Type
Double-Pane Tempered Low-E Glass
Lighting
Patented i-light Anti-Glare LED Interior Lighting
Temperature Range
1°C to 10°C
Temperature Controller
Carel Digital Controller With LED Display
Refrigerant
R290 (CFC-Free)
Compressor
Integrated Motor
Cabinet Construction
Aluminum Frame With Stainless Steel Interior And Base
Mobility
Wheels With Rear Stoppers
Ambient Conditions
32°C Max, 55% Relative Humidity Max
Voltage
115V
Amps
7.4A
Hertz
60
Nema
5-15P
Item Condition
New
Warranty / Certifications
Warranty
3 Years Parts & Labour / 5 Years Compressor
