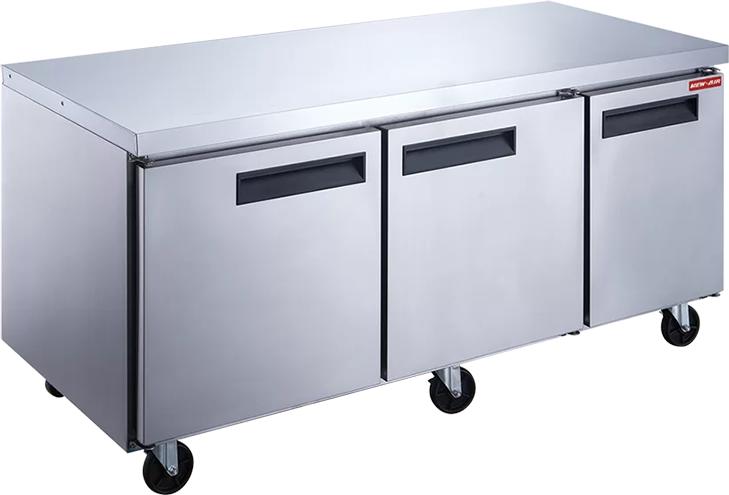

New Air - 72" Stainless Steel Three Door Undercounter Freezer - NUF-072-SS
Model Number: DIST-NUF-072-SS
Description
Three doors and 537 L of capacity make the NUF-072-SS the largest undercounter freezer in the New Air NUF line. It runs -22°C to -17°C across an 18.96 cu. ft. cabinet. Large production kitchens and cafeteria lines use a unit this size as the frozen holding point for a whole cook station.
The 72.50" wide cabinet is stainless steel inside and out, with three adjustable epoxy-coated wire shelves in a 68.00" x 27.00" x 25.00" interior. Refrigeration comes from a rear-mounted 0.75 HP Embraco compressor rated 1050W, which is why this model needs 12.4A rather than the 8.0A the narrower models draw. Three of the swivel casters carry brakes to hold 242 lbs in place.
Key Features:

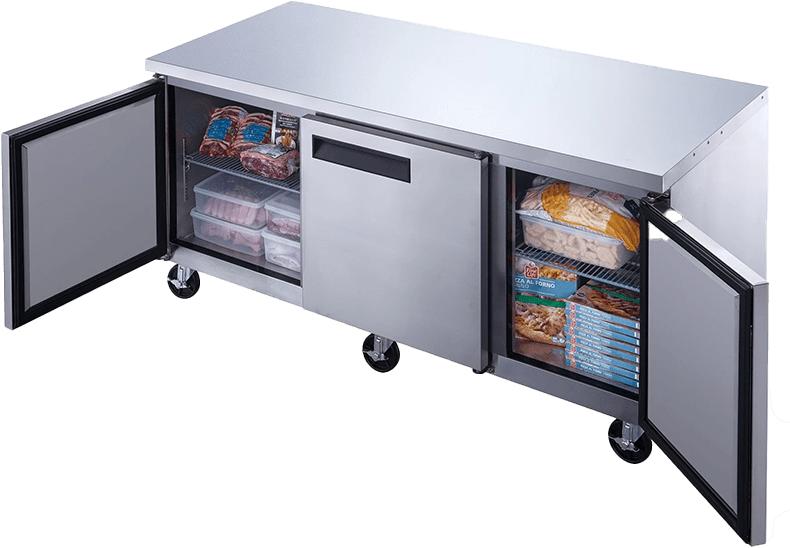

- Three self-closing doors so a single section opens at a time on a 72.50" cabinet
- 537 L / 18.96 cu. ft., the largest capacity in the NUF undercounter range
- Three adjustable epoxy-coated wire shelves across a 68.00" wide interior
- 0.75 HP Embraco compressor, 1050W, drawing 12.4A on 115V through a NEMA 5-15P plug
- Dixell digital control with automatic defrost holding -22°C to -17°C
- Swivel casters with three brakes to lock a 242 lb cabinet after positioning
Specifications
Dimensions
Dimensions (W x D x H)
72.50" x 31.50" x 35.88"
Interior Dimensions (W x D x H)
68.00" x 27.00" x 25.00"
Shipping Dimensions (W x D x H)
74.00" x 33.00" x 39.00"
Net Weight
242 lbs
Gross Weight
362 lbs
Details
Model
NUF-072-SS
Capacity
537 L / 18.96 Cu. Ft
No. Of Doors
3
Door Type
Self-Closing With Stay-Open Feature
No. Of Shelves
3 (Adjustable)
Shelf Material
Epoxy-Coated Wire
Refrigerant
R290 (CFC-Free)
Temperature Range
-22°C to -17°C
Temperature Controller
Dixell Digital Control
Defrosting
Automatic
Power Consumption
1050W
Voltage
115V
Amps
12.4A
Hertz
60
Nema
5-15 P
Horsepower
0.75 HP (Embraco Compressor)
Compressor Location
Rear Mounted
Castors
Swivel (3 With Brakes)
Ambient Temperature
25°C
Ambient Humidity
55%
Exterior Material
Stainless Steel
Interior Material
Stainless Steel
Item Condition
New
Warranty / Certifications
Warranty
3 Years Parts & Labour / 2 Additional Years On The Compressor
