New Air - 72" Gravity Coil Refrigerated Deli Display Case - NDDC-72-GC
Model Number: DIST-NDDC-72-GC
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description

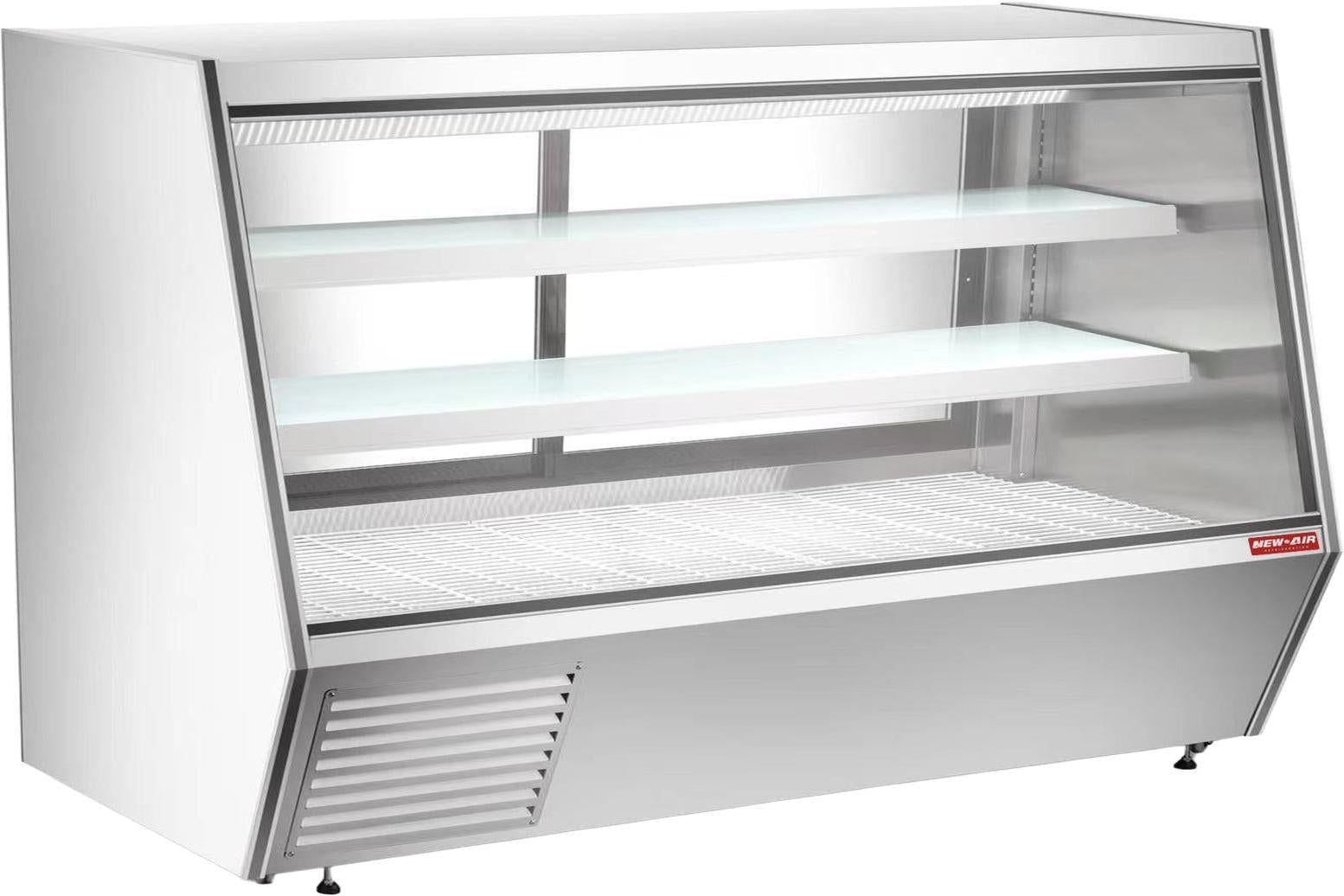

The New Air NDDC-72-GC is a 72" gravity coil deli case finished in stainless steel inside and out. Six feet of display line makes it a fit for supermarket service counters and butcher shops that need to run several product categories side by side without crowding them. The display cabinet holds 978 L and a further 240 L sits in the refrigerated chamber below, 43.0 cu. ft. across both.
Stainless cladding on the exterior takes wipe-downs and cart contact better than a painted panel, which matters on a case this long. Gravity coil cooling avoids the drying effect that forced air has on unwrapped product, and adjustable glass shelves let the merchandising change without tools. Two rear sliding glass doors serve the whole 72" run, and the R290 system draws 500W at 4.55A.
Key Features:
- 978 L display cabinet plus a 240 L refrigerated lower chamber, 43.0 cu. ft. combined
- Stainless steel exterior and interior throughout for heavy service environments
- Gravity coil cooling with the main cabinet running 2°C to 12°C
- Two rear sliding glass doors along a 72.00" service face
- LED lighting above and under each adjustable glass shelf
- R290 refrigerant at 500W and 4.55A, NEMA 5-15P
Specifications
Dimensions
Dimensions (W x D x H)
72.00" x 33.63" x 55.38"
Boxed Dimensions (W x D x H)
74.25" x 36.00" x 61.50"
Net Weight
443 lbs (201 kg)
Details
Model
NDDC-72-GC
Main Cabinet Capacity
978 L / 34.5 Cu. Ft
Lower Chamber Capacity
240 L / 8.5 Cu. Ft
Total Capacity
1218 L / 43.0 Cu. Ft
Color
Stainless Steel Exterior & Interior
Cooling System
Gravity Coil
Shelves
Adjustable Glass Shelves
Lighting
LED On Top & Under Each Shelf
Refrigerant
R290 (CFC-Free)
Main Cabinet Temperature
2°C to 12°C
Lower Chamber Temperature
0°C to 4°C
Ambient Rating
30°C Max / 55% RH Max
Temperature Controller
Digital Controller with LED Display
No. Of Doors
2 (Rear Sliding Glass)
Power Consumption
500W
Voltage
110V
Amps
4.55A
Hertz
60
Phase
Single Phase
Nema
5-15P
Item Condition
New
Warranty / Certifications
Warranty
2 Years Parts & Labour, 5 Years Compressor
