New Air - 72" Curved Glass Refrigerated Display Case - NDC-72-CG
Model Number: DIST-NDC-72-CG
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description

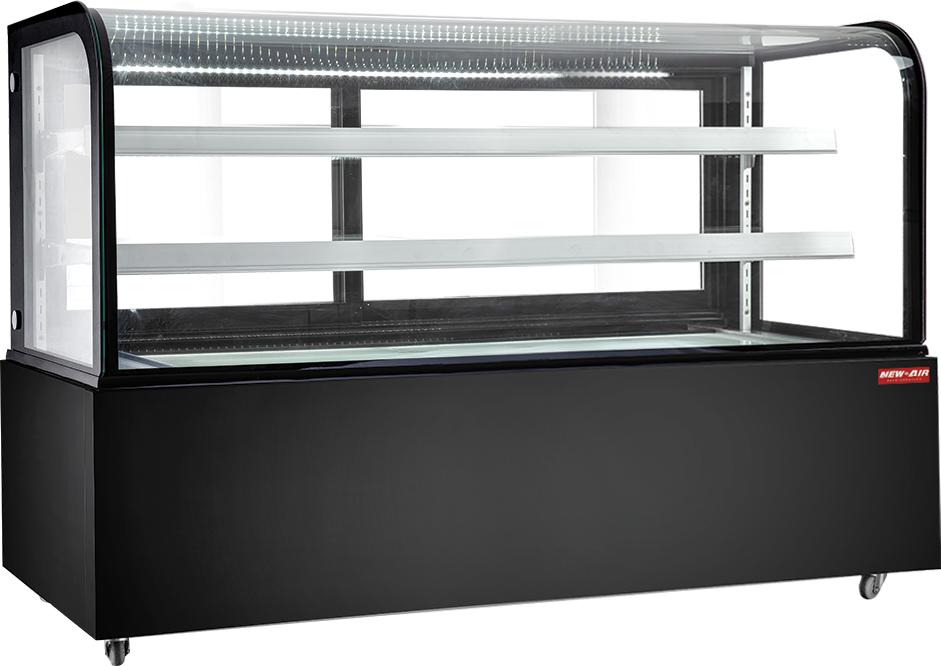

The New Air NDC-72-CG is the widest case in the curved glass series at 72.50", built for high-volume pastry counters, supermarket service departments and hotel buffet lines that merchandise a full assortment of chilled product in one run. Capacity is 570 L, or 20.12 cu. ft. Double tempered glass surrounds the cabinet, with a curved front that keeps the product legible to a customer standing at the counter.
Inside, 67.00" of display width carries two glass shelves adjustable for height and angle, which lets a single case hold tall cakes at one end and low trays at the other. The body is black brushed stainless steel, air ducts on three sides strip condensation from the glass, and rear sliding doors keep restocking on the staff side. R290 refrigerant works across a 2°C to 12°C range and the case still plugs into a standard 120V outlet at 4.9A.
Key Features:
- 570 L / 20.12 cu. ft., the largest capacity in the curved glass range, in a 72.50" x 27.00" x 47.00" cabinet
- 67.00" of interior display width for long product runs across two adjustable glass shelves
- Double tempered glass all around with a curved front face
- LED lighting under each shelf to light the product on the shelf beneath
- Air ducts on three sides keep the viewing glass free of condensation
- CFC-free R290 refrigerant, 2°C to 12°C, on a single 120V, 4.9A, NEMA 5-15P circuit
Specifications
Dimensions
Dimensions (W x D x H)
72.50" x 27.00" x 47.00"
Interior / Display Dimensions (W x D x H)
67.00" x 23.00" x 25.50"
Shipping Weight
780.00 lbs
Details
Model
NDC-72-CG
Capacity
570 L / 20.12 Cu. Ft
Color
Black
No. Of Shelves
2
Shelf Material
Glass, Adjustable For Angle And Height
Glass Type
Double Tempered Glass All Around, Curved Front
Lighting
LED Under Each Shelf
Refrigerant
R290 (CFC-Free)
Temperature Range
2°C to 12°C
Doors
Rear Sliding
Ventilation
Air Ducts On 3 Sides To Remove Condensation
Voltage
120V
Amps
4.9A
Hertz
60
Phase
Single Phase
Nema
5-15 P
Castors
Included
Construction Material
Black Brushed Stainless Steel With Tempered Glass
Item Condition
New
Warranty / Certifications
Warranty
2 Years Parts & Labour
Warranty (Compressor)
5 Years
