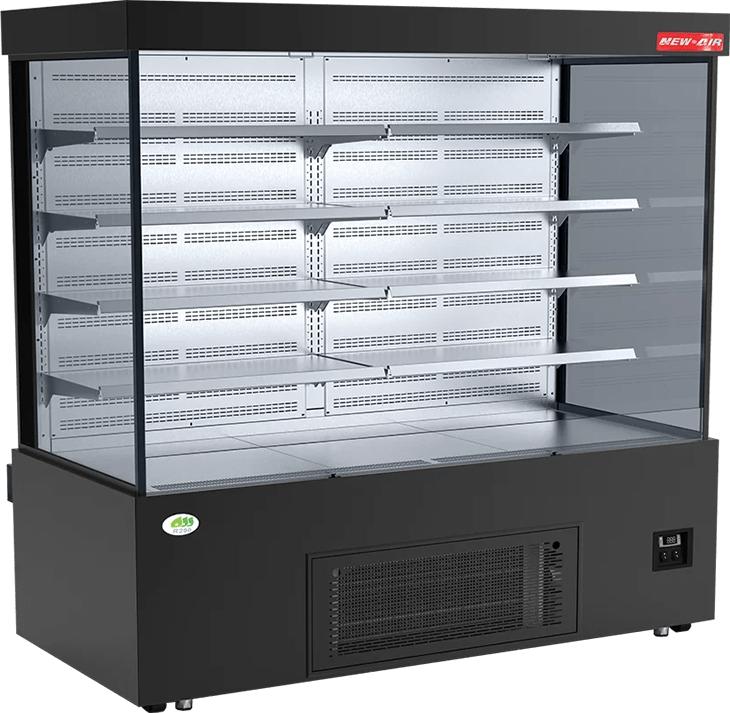

New Air - 71" Refrigerated Vertical Open Merchandiser, Shallow Depth - NOM-71-S
Model Number: DIST-NOM-71-S
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description
The NOM-71-S is the largest open merchandiser in this range, 70.25" wide on the spec sheet and holding 872 litres, or 30.8 cubic feet. One case at this width replaces two mid-size units in a supermarket fresh-food aisle and gives a continuous run of product rather than a break between fixtures. There are no doors; a refrigerated air curtain seals the face.
Eight adjustable shelves stand over a base display deck in an interior 65.50" wide by 24.00" deep by 48.25" high, with cool-toned LED under every shelf and a price tag channel on each. The sheet calls for 230V, 60Hz service at 12.6A through a NEMA 6-20P plug, so an electrician sets the receptacle before install day. A heated drain pan evaporates condensate, and the front-facing condenser filter is cleaned from the aisle without moving the case.
Key Features:
- 872 L / 30.8 cu. ft. behind 70.25" of open frontage, the largest capacity in this merchandiser range
- Eight adjustable shelves over a base display deck in a 65.50" x 24.00" x 48.25" interior
- Air-curtain front holding 2°C to 5°C, with a pull-down night curtain for after hours
- 230V / 60Hz at 12.6A on a NEMA 6-20P plug, which keeps the current draw low for the capacity
- Front-facing condenser with a removable filter, serviceable without pulling a 70" case away from the wall
- Heated drain pan evaporates condensate so the position needs no floor drain
Specifications
Dimensions
Dimensions (W x D x H)
70.25" x 33.13" x 78.75"
Interior Dimensions (W x D x H)
65.50" x 24.00" x 48.25"
Details
Model
NOM-71-S
Capacity
872 L / 30.8 Cu. Ft
Color
Black
Exterior
Black Brushed Stainless Steel
Glass
Double Tempered Glass
No. Of Shelves
8 (Adjustable) + Base Display Deck
Shelf Arrangement
8 Adjustable Shelves Above A Base Display Deck
Air Curtain
Yes (Open Front, No Doors)
Night Curtain
Pull-Down Night Curtain
Lighting
Cool-Toned LED On Top And Under Each Shelf
Price Tag Channel
Yes
Temperature Range
2°C to 5°C
Temperature Controller
Digital Temperature Controls With Separate Light Controls
Condenser
Front-Facing With Easy-To-Clean Filter
Drain
Heated Drain Pan For Condensation Evaporation
Ambient Temperature
≤ 30°C
Ambient Humidity
≤ 55%
Voltage
230V
Amps
12.6A
Hertz
60
Phase
Single Phase
Nema
6-20P
Item Condition
New
Warranty / Certifications
Warranty
3 Years Parts & Labour / 5 Years Compressor
