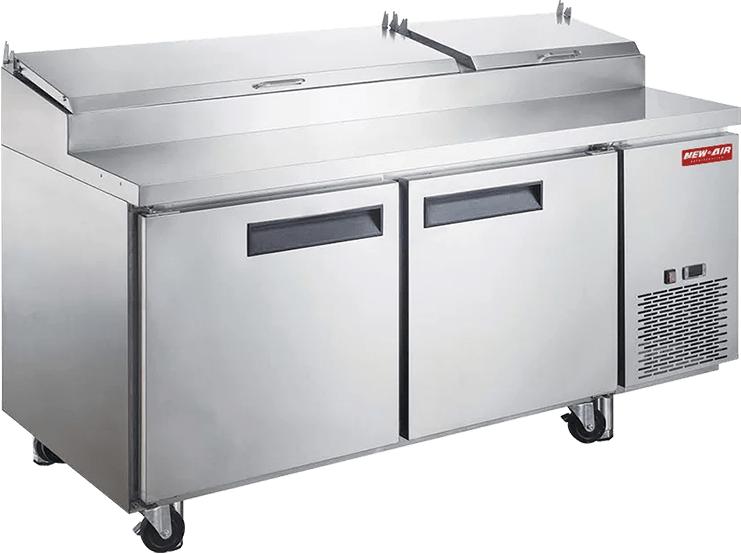

New Air - 70" Refrigerated Pizza Prep Table - NPT-070-PI
Model Number: DIST-NPT-070-PI
Description
The New Air NPT-070-PI is a 70" refrigerated pizza prep table sized for restaurants and pizzerias running a steady lunch and dinner line. Two self-closing door sections sit under a rail that carries 9 clear plastic 1/3 size pans, half again the topping selection of the 44" model. Storage below comes to 497.81 L, held between 0.5°C and 5°C.
The body is stainless steel inside and out with sealed interior floors, and each section takes heavy duty adjustable shelves so case goods and prepped tubs can share the cabinet. A 19" deep cutting board spans the front of the pan rail. Cooling runs on R290 through a 310W rear-mounted compressor drawing 2.8A at 115V, and insulated lids sit over the rail to hold temperature when the line goes quiet.
Key Features:
- 9 x 1/3 size pans on the rail, supplied with the table, give a wider topping selection than a single-section prep unit
- Two self-closing doors with a stay-open function open onto 497.81 L of refrigerated storage on adjustable heavy duty shelves
- 70.00" x 35.38" x 43.88" body drops into a standard line at a 43.88" working height
- 19" deep cutting board keeps stretching and topping at the same station as the pans
- R290 refrigerant with a 310W compressor and automatic defrost maintains 0.5°C to 5°C without a manual defrost stop
- Insulated lids close over the rail between rushes to slow warming in the pans
Specifications
Dimensions
Dimensions (W x D x H)
70.00" x 35.38" x 43.88"
Interior Dimensions (W x D x H)
48.50" x 25.00" x 23.00"
Cutting Board Depth
19.00"
Net Weight
297 lbs (134.6 kg)
Gross Weight
315 lbs (143 kg)
Details
Model
NPT-070-PI
Capacity
497.81 L / 17.58 Cu. Ft
No. Of Doors
2 (Solid, Self-Closing With Stay-Open Feature)
No. Of Shelves
2 (Adjustable) Heavy Duty Shelves
Pan Capacity
9 x 1/3 Size Pans (Clear Plastic Pans Included)
Pan Size
1/3 Size Pan (12.75" x 7.00")
Refrigerant
R290 (CFC-Free)
Temperature Range
0.5°C to 5°C
Ambient Temperature
25°C
Ambient Humidity
55%
Temperature Controller
Front-Mounted Digital Control With On/Off Switch
Defrosting
Automatic
Power Consumption
310W
Voltage
115V
Amps
2.8A
Hertz
60
Nema
5-15P
Horsepower
1/4 HP (Embraco)
Compressor Location
Rear Mounted
Castors
2 With Brakes
Exterior Material
Stainless Steel
Interior Material
Stainless Steel, Sealed Interior Floors
Insulated Lids
Yes
Item Condition
New
Warranty / Certifications
Warranty
3 Years Parts & Labour / 2 Additional Years Compressor Coverage
