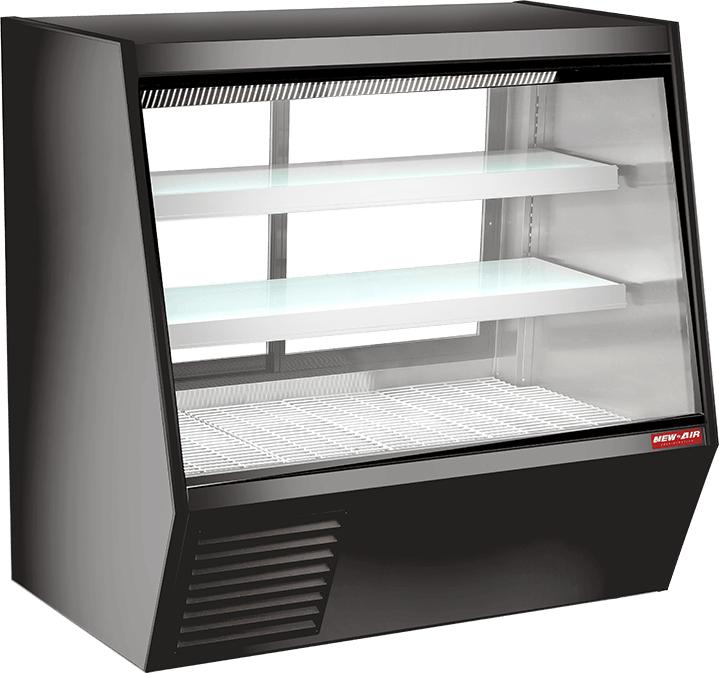

New Air - 60" Gravity Coil Refrigerated Deli Display Case - NDDC-60-GC
Model Number: DIST-NDDC-60-GC
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description
The New Air NDDC-60-GC is a 60" gravity coil deli case built for counters that move more volume than a compact unit can hold. Delis, cheese counters and prepared-food departments get 808 L of lit display space with another 185 L of refrigerated storage below it, 35.0 cu. ft. altogether. Cold air reaches the product by falling from a gravity coil rather than by fan pressure.
Construction is a black exterior over stainless steel, with glass shelves that reposition as the merchandising plan changes. The gentler airflow matters most on high-turn items like sliced deli meat and salads, which dry out and discolour under a forced-air stream. Two rear sliding glass doors open onto the service aisle, and the whole case runs on 500W at 4.55A through a NEMA 5-15P outlet using R290.
Key Features:
- 808 L lit display cabinet with a 185 L refrigerated chamber below, 35.0 cu. ft. total
- Gravity coil cooling keeps air off the product surface, main cabinet 2°C to 12°C
- Two rear sliding glass doors for loading from the staff side
- Adjustable glass shelves with LED lighting above and under each shelf
- R290 refrigerant at 500W and 4.55A on a standard 110V circuit
- 60.00" wide by 33.63" deep, ships in a 62.38" crate
Specifications
Dimensions
Dimensions (W x D x H)
60.00" x 33.63" x 55.38"
Boxed Dimensions (W x D x H)
62.38" x 36.00" x 61.50"
Net Weight
388 lbs (176 kg)
Details
Model
NDDC-60-GC
Main Cabinet Capacity
808 L / 28.5 Cu. Ft
Lower Chamber Capacity
185 L / 6.5 Cu. Ft
Total Capacity
993 L / 35.0 Cu. Ft
Color
Black Exterior / Stainless Steel Interior
Cooling System
Gravity Coil
Shelves
Adjustable Glass Shelves
Lighting
LED On Top & Under Each Shelf
Refrigerant
R290 (CFC-Free)
Main Cabinet Temperature
2°C to 12°C
Lower Chamber Temperature
0°C to 4°C
Ambient Rating
30°C Max / 55% RH Max
Temperature Controller
Digital Controller with LED Display
No. Of Doors
2 (Rear Sliding Glass)
Power Consumption
500W
Voltage
110V
Amps
4.55A
Hertz
60
Phase
Single Phase
Nema
5-15P
Item Condition
New
Warranty / Certifications
Warranty
2 Years Parts & Labour, 5 Years Compressor
