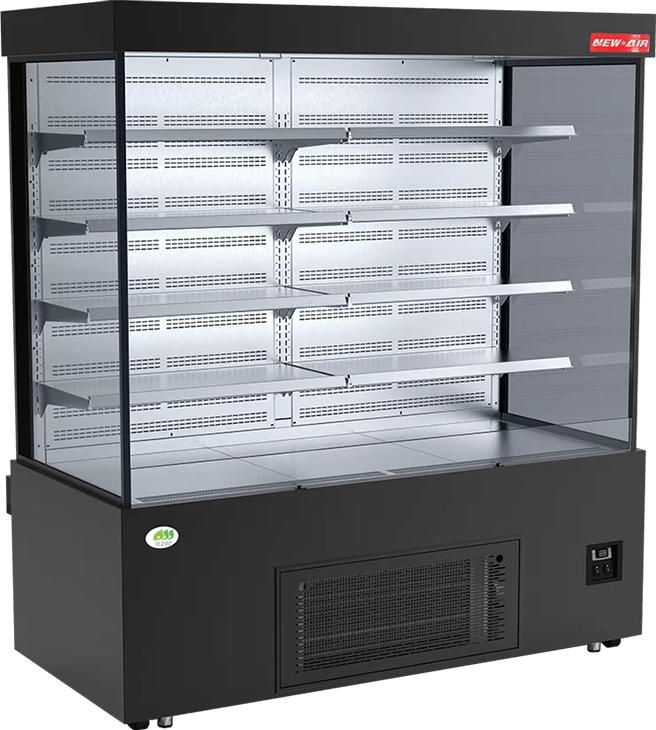

New Air - 59" Refrigerated Vertical Open Merchandiser, Shallow Depth - NOM-59-S
Model Number: DIST-NOM-59-S
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description
The NOM-59-S is a 59.25" wide open merchandiser built on a deeper 33.13" body, which lifts capacity to 768 litres, or 27.1 cubic feet. Supermarkets and larger convenience formats use this size to run a complete fresh-food set in one fixture. It is the point in the range where the electrical requirement changes.
Power comes from a 208V, 60Hz single-phase circuit at 12.6A on a NEMA 6-20P plug, so the receptacle has to be in place before the unit is delivered. Inside, eight adjustable shelves sit above a base display deck in a 54.50" wide by 24.00" deep by 48.25" high interior, and each shelf carries a price tag channel with cool-toned LED underneath. Black brushed stainless steel and double tempered glass form the cabinet, and a heated drain pan evaporates condensate on site.
Key Features:
- 768 L / 27.1 cu. ft. behind a 59.25" open face, with an air curtain in place of doors
- Deeper 24.00" interior shelf space compared with the 40" and 52" models, which takes larger case packs
- Eight adjustable shelves above a base display deck, each with an integrated price tag channel
- 208V / 60Hz single-phase at 12.6A on a NEMA 6-20P plug, so the electrical work is planned before install
- Pull-down night curtain closes the opening overnight and reduces the standing refrigeration load
- Heated drain pan evaporates condensate, removing the need for a plumbed floor drain
Specifications
Dimensions
Dimensions (W x D x H)
59.25" x 33.13" x 78.75"
Interior Dimensions (W x D x H)
54.50" x 24.00" x 48.25"
Details
Model
NOM-59-S
Capacity
768 L / 27.1 Cu. Ft
Color
Black
Exterior
Black Brushed Stainless Steel
Glass
Double Tempered Glass
No. Of Shelves
8 (Adjustable) + Base Display Deck
Shelf Arrangement
8 Adjustable Shelves Above A Base Display Deck
Air Curtain
Yes (Open Front, No Doors)
Night Curtain
Pull-Down Night Curtain
Lighting
Cool-Toned LED On Top And Under Each Shelf
Price Tag Channel
Yes
Temperature Range
2°C to 5°C
Temperature Controller
Digital Temperature Controls With Separate Light Controls
Condenser
Front-Facing With Easy-To-Clean Filter
Drain
Heated Drain Pan For Condensation Evaporation
Ambient Temperature
≤ 30°C
Ambient Humidity
≤ 55%
Voltage
208V
Amps
12.6A
Hertz
60
Phase
Single Phase
Nema
6-20P
Item Condition
New
Warranty / Certifications
Warranty
3 Years Parts & Labour / 5 Years Compressor
