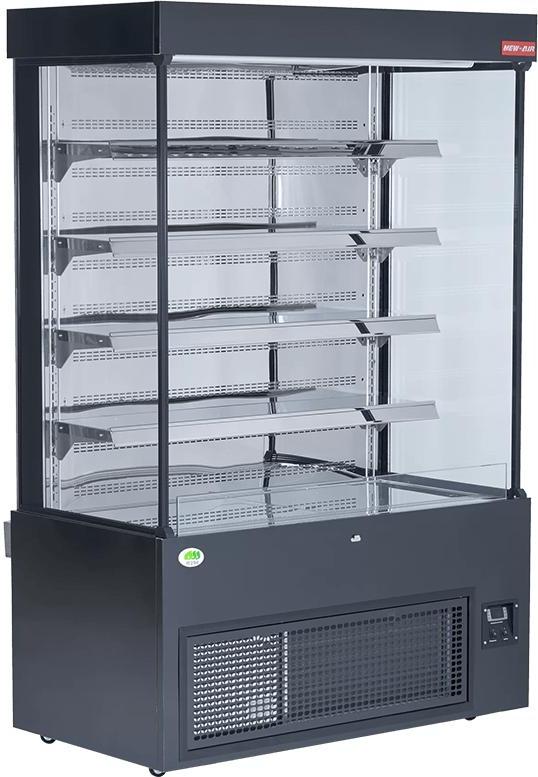

New Air - 52" Refrigerated Vertical Open Merchandiser, Shallow Depth - NOM-52-S
Model Number: DIST-NOM-52-S
Description
The NOM-52-S widens the shallow-depth open merchandiser to 51.25" and raises capacity to 676.77 litres, 23.9 cubic feet. That width lets a store run two product groups side by side in one fixture, sandwiches on one half and cold drinks on the other, instead of buying two cases. The face stays open behind a refrigerated air curtain.
Eight adjustable shelves and a base display deck line a 46.50" wide by 22.00" deep by 48.25" high interior, with a price tag channel and a cool-toned LED strip on each shelf. The body is black brushed stainless steel with double tempered glass ends, and the depth stays at 27.63" so a wider case does not cost more aisle. Its R290 circuit pulls 1470W at 14A, and a heated drain pan evaporates condensate so the unit needs no floor drain.
Key Features:
- 676.77 L / 23.9 cu. ft. across 51.25" of frontage, enough to consolidate two smaller cases into one
- Eight adjustable shelves over a base display deck inside a 46.50" x 22.00" x 48.25" interior
- Shallow 27.63" depth, the same body depth as the 40" model, so the extra width costs no extra aisle
- Open air-curtain front holding 2°C to 5°C with a pull-down night curtain for overnight closure
- Heated drain pan evaporates condensate, which removes the need for a plumbed floor drain
- R290 CFC-free refrigerant, 1470W at 14.0A on 115V / 60Hz through a NEMA 5-20P plug
Specifications
Dimensions
Dimensions (W x D x H)
51.25" x 27.63" x 78.75"
Interior Dimensions (W x D x H)
46.50" x 22.00" x 48.25"
Gross Weight
699 lbs
Details
Model
NOM-52-S
Capacity
676.77 L / 23.9 Cu. Ft
Color
Black
Exterior
Black Brushed Stainless Steel
Glass
Double Tempered Glass
No. Of Shelves
8 (Adjustable) + Base Display Deck
Shelf Arrangement
8 Adjustable Shelves Above A Base Display Deck
Air Curtain
Yes (Open Front, No Doors)
Night Curtain
Pull-Down Night Curtain
Lighting
Cool-Toned LED On Top And Under Each Shelf
Price Tag Channel
Yes
Refrigerant
R290 (CFC-Free)
Temperature Range
2°C to 5°C
Temperature Controller
Digital Temperature Controls With Separate Light Controls
Condenser
Front-Facing With Easy-To-Clean Filter
Drain
Heated Drain Pan For Condensation Evaporation
Ambient Temperature
≤ 30°C
Ambient Humidity
≤ 55%
Power Consumption
1470W
Voltage
115V
Amps
14A
Hertz
60
Nema
5-20P
Item Condition
New
Warranty / Certifications
Warranty
3 Years Parts & Labour / 5 Years Compressor
