New Air - 49" Black Double Glass Door Refrigerated Merchandiser - NGR-49-HB
Model Number: DIST-NGR-49-HB
Description

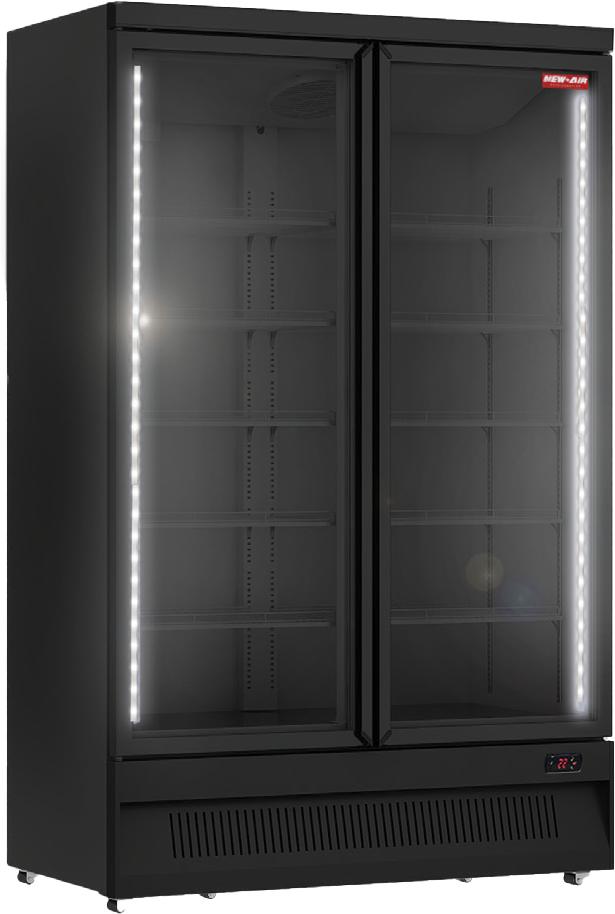

The NGR-49-HB is a two-door refrigerated merchandiser with 1081 litres, or 38 cubic feet, of display space across ten adjustable shelves. Convenience stores and grocery front ends run it as a beverage wall where a single-door cabinet cannot hold the facings. Two hinged glass doors let two customers shop the case at once without blocking each other.
The doors are double-pane tempered Low-E glass in narrow aluminum frames, and the motor is integrated into the base so more of the 80.25-inch height goes to product. A Carel digital controller with an LED display holds 1°C to 10°C on R290 refrigerant, drawing 7.4 amps from a standard 115V outlet. The cabinet weighs 493 pounds and rides on wheels with rear stoppers.
Key Features:
- 1081 L across two hinged doors, roughly the volume of two single-door 30-inch cabinets in one frame
- Ten adjustable shelves at 46.00" x 20.00" for full-width facings on every level
- Two doors let two shoppers work the case at the same time during peak service
- Carel digital controller with LED display holding 1°C to 10°C on R290 CFC-free refrigerant
- Integrated base motor and slim door frames convert cabinet height into display height
- 7.4 A at 115V / 60Hz on a NEMA 5-15P plug, no three-phase or dedicated high-amp service needed
Specifications
Dimensions
Dimensions (W x D x H)
49.38" x 29.88" x 80.25"
Interior Dimensions (W x D x H)
46.00" x 20.50" x 57.63"
Net Weight
493 lbs
Details
Model
NGR-49-HB
Capacity
1081 L / 38 Cu. Ft
Color
Black
No. Of Doors
2 (Hinged, Self-Closing With Lock)
No. Of Shelves
10 (Adjustable)
Shelf Dimensions (W x D)
46.00" x 20.00"
Glass Type
Double-Pane Tempered Low-E Glass
Lighting
Patented i-light Anti-Glare LED Interior Lighting
Temperature Range
1°C to 10°C
Temperature Controller
Carel Digital Controller With LED Display
Refrigerant
R290 (CFC-Free)
Compressor
Integrated Motor
Cabinet Construction
Aluminum Frame With Stainless Steel Interior And Base
Mobility
Wheels With Rear Stoppers
Ambient Conditions
32°C Max, 55% Relative Humidity Max
Voltage
115V
Amps
7.4A
Hertz
60
Nema
5-15P
Item Condition
New
Warranty / Certifications
Warranty
3 Years Parts & Labour / 5 Years Compressor
