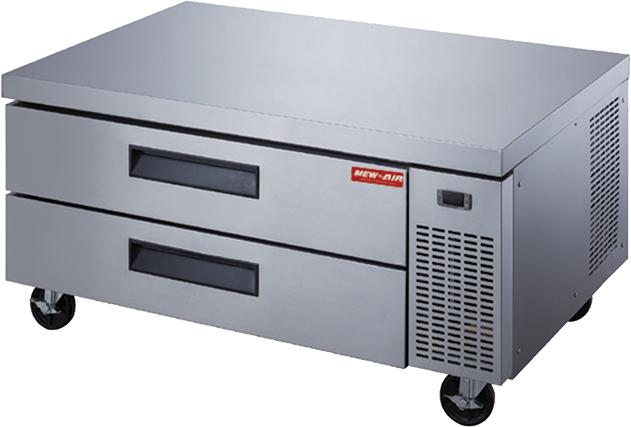

New Air - 48" Two Drawer Refrigerated Chef Base - NCB-048-SS
Model Number: DIST-NCB-048-SS
Description
The NCB-048-SS is a 48" refrigerated chef base built to sit under countertop cooking equipment in restaurant lines and food trucks. Two removable drawers hold prepped product within arm's reach of the range, and a digital controller holds the cabinet between 0.5°C and 3°C. The footprint is 48.00" wide by 32.25" deep and 26.63" high, which matches standard counter run heights.
Exterior and interior are stainless steel with rounded corners, so wipe-downs do not leave trapped soil in the seams. Drawer rails are rated for heavy loads and the drawers lift out for cleaning. R290 hydrocarbon refrigerant runs the system, and the unit draws 1.7 A on a 115V / 60Hz circuit through a NEMA 5-15P plug, so it shares an ordinary wall outlet.
Key Features:
- Two removable drawers keep cold product at the cook line without a trip to the walk-in
- Digital temperature control with adjustable defrost frequency maintains 0.5°C to 3°C
- Stainless steel exterior and interior with rounded corners speeds daily cleaning
- Heavy duty casters with front brakes let staff roll the base out for floor washing
- R290 CFC-free refrigerant with a 1.7 A draw on a standard 115V NEMA 5-15P outlet
- Drawer layout takes 15 x 1/6 pans, 4 x 1/2 pans plus 3 x 1/6 pans, or 2 full-size pans plus 3 x 1/6 pans
Specifications
Dimensions
Dimensions (W x D x H)
48.00" x 32.25" x 26.63"
Packaged Dimensions (W x D x H)
49.00" x 34.25" x 29.13"
Net Weight
180 lbs
Details
Model
NCB-048-SS
No. Of Drawers
2 (Removable)
Pan Capacity
15 x 1/6 Pans, or 4 x 1/2 Pans Plus 3 x 1/6 Pans, or 2 x Full-Size Pans Plus 3 x 1/6 Pans (Pans Not Included)
Refrigerant
R290 (CFC-Free)
Temperature Range
0.5°C to 3°C
Temperature Controller
Digital Control
Defrosting
Automatic, Adjustable Defrost Frequency
Voltage
115V
Amps
1.7A
Hertz
60
Nema
5-15P
Exterior Material
Stainless Steel With Rounded Corners
Interior Material
Stainless Steel With Rounded Corners
Castors
Heavy Duty Casters (With Front Brakes)
Item Condition
New
Warranty / Certifications
Warranty
3 Years Parts & Labour / 5 Years Compressor
Certification
ETL Tested
