Description

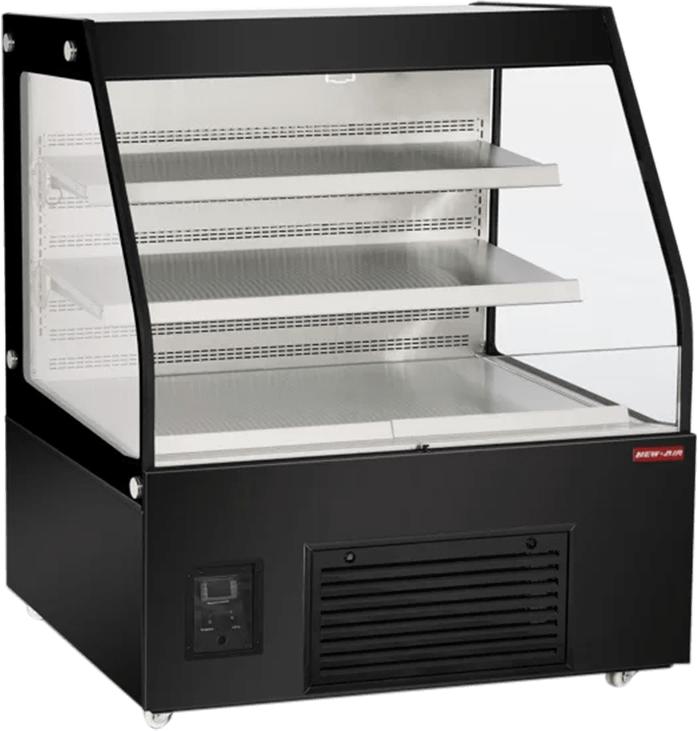

The NOM-48-CDS is the wider of New Air's two medium-profile open merchandisers, 47.25" across and 53.50" tall, carrying 258 litres or 9.11 cubic feet of refrigerated display. Its low height keeps sightlines open across a servery, a market floor or a hotel breakfast area where a full-height case would block the view. Product sits behind an air curtain rather than a door.
The interior runs 43.25" wide by 23.00" deep by 28.00" high, with two shelves that adjust for height and angle above a base display deck. Cool-toned LED sits on top and under each shelf, and each shelf carries a price tag channel so pricing stays with the product. The unit draws 8.5A at 115V through a NEMA 5-15P plug, the same standard-outlet load as the 36" model despite the extra 67 litres of capacity.
Key Features:
- 258 L / 9.11 cu. ft. across 47.25" of frontage while staying only 53.50" tall
- Two shelves adjust for height and angle over a base display deck in a 43.25" x 23.00" x 28.00" interior
- Open air-curtain face held at 2°C to 5°C by digital control with a separate light switch
- Pull-down night curtain covers the opening after service to reduce standing load
- 8.5A at 115V / 60Hz on a NEMA 5-15P plug, no different from the smaller 36" model
- Drain pan heating element evaporates condensation, so the case needs no plumbed drain
Specifications
Dimensions
Dimensions (W x D x H)
47.25" x 35.25" x 53.50"
Interior Dimensions (W x D x H)
43.25" x 23.00" x 28.00"
Details
Model
NOM-48-CDS
Capacity
258 L / 9.11 Cu. Ft
Color
Black
Exterior
Black Brushed Stainless Steel
Glass
Double Tempered Glass
No. Of Shelves
2 (Adjustable For Height And Angle) + Base Display Deck
Shelf Arrangement
2 Adjustable Shelves Above A Base Display Deck
Air Curtain
Yes (Open Front, No Doors)
Night Curtain
Pull-Down Night Curtain
Lighting
Cool-Toned LED On Top And Under Each Shelf
Price Tag Channel
Yes
Temperature Range
2°C to 5°C
Temperature Controller
Digital Temperature Control With Separate Light Switch
Condenser
Front-Facing With Easy-To-Clean Filter
Drain
Drain Pan Heating Element For Condensation Evaporation
Ambient Temperature
≤ 30°C
Ambient Humidity
≤ 55%
Voltage
115V
Amps
8.5A
Hertz
60
Phase
Single Phase
Nema
5-15P
Item Condition
New
Warranty / Certifications
Warranty
3 Years Parts & Labour / 5 Years Compressor
