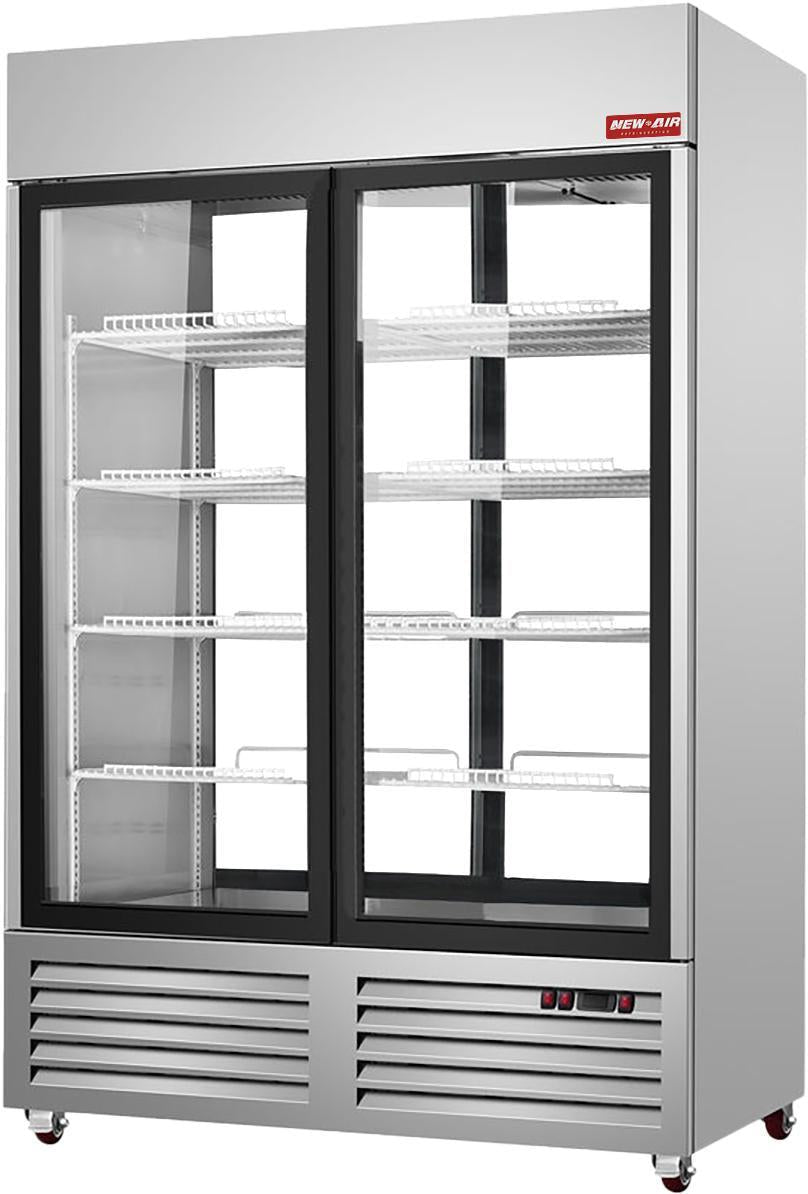

New Air - 48" Double Glass Door Stainless Steel Pass-Thru Reach-In Refrigerator - NSGR-48-PT
Model Number: DIST-NSGR-48-PT
Description
The New Air NSGR-48-PT is a pass-thru refrigerator, meaning it carries glass doors on the front of the cabinet and matching doors on the back so it can be loaded from one side and served from the other. Four sliding glass doors, two per face, open into 33.77 cu. ft. (956 L) held at 1°C to 4°C. Set it into a wall between prep and service and stock never has to travel around the line.
The doors use heated glass, which keeps condensation off the pane in a warm room instead of forcing staff to wipe it down. The exterior is 430 stainless steel and the interior liner is 304 stainless steel, and interior LED lighting keeps the eight epoxy coated adjustable wire shelves readable from either face. Foam insulation and 0.7mm bent copper tubing make up the sealed system, which runs on R290 at 7.5 A.
Key Features:
- Pass-thru cabinet with four sliding glass doors, two on the front face and two on the rear, for load-behind and serve-in-front workflow
- Heated glass on the doors resists condensation in a warm service area
- 304 stainless steel interior liner with a 430 stainless steel exterior
- Interior LED lighting and eight epoxy coated adjustable stainless steel wire shelves for visibility from both sides
- 956 L (33.77 cu. ft.) held at 1°C to 4°C by a digital control with an LED display
- Sealed system uses R290 and leak-resistant 0.7mm bent copper tubing, drawing 7.5 A at 115V / 60Hz
Specifications
Dimensions
Dimensions (W x D x H)
48.13" x 30.13" x 78.88"
Net Weight
506 lbs (230 kg)
Details
Model
NSGR-48-PT
Capacity
956 L / 33.77 Cu. Ft
Configuration
Pass-Thru (Doors On Front And Rear Of Cabinet)
No. Of Doors
4 (Sliding Glass, Heated)
No. Of Shelves
8 (Adjustable)
Shelf Material
Epoxy Coated Stainless Steel Wire
Lighting
Interior LED Lighting
Temperature Range
1°C to 4°C
Temperature Controller
Digital Control With LED Display
Insulation
Foam Insulation
Tubing
0.7mm Thick Bent Copper Tubing (Leak-Resistant)
Condenser
Positioned For Optimal Evaporation
Refrigerant
R290 (CFC-Free)
Voltage
115V
Amps
7.5A
Hertz
60
Nema
5-15P
Exterior Material
430 Stainless Steel
Interior Material
304 Stainless Steel
Castors
Adjustable Front Locking Casters
Ambient Temperature
25°C
Ambient Humidity
60%
Item Condition
New
