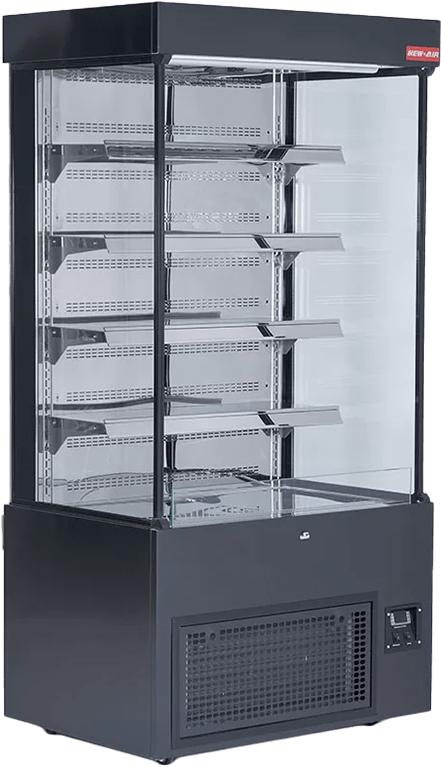

New Air - 40" Refrigerated Vertical Open Merchandiser, Shallow Depth - NOM-40-S
Model Number: DIST-NOM-40-S
Description
The NOM-40-S is a 39.50" wide vertical open merchandiser carrying 509.7 litres, or 18 cubic feet, of chilled grab-and-go product. Convenience stores, cafeterias and hospital retail use this size where one column of shelving is enough to cover the fresh-food offer. The front is open behind a refrigerated air curtain, so nobody has to pull a handle to buy a sandwich.
Four adjustable shelves sit above a base display deck inside a 32.38" wide by 22.00" deep by 48.25" high interior, and the shallow 27.63" cabinet depth keeps the case out of the traffic lane. Black brushed stainless steel forms the body with double tempered glass at the ends, and the condenser faces forward behind a filter that pulls out for cleaning. The R290 circuit draws 1400W at 14A, which puts it on a NEMA 5-20P receptacle rather than a general-purpose outlet.
Key Features:
- 509.7 L / 18 cu. ft. of display in a 39.50" x 27.63" footprint, shallow enough for a narrow aisle
- Four adjustable shelves over a base display deck, each shelf fitted with a price tag channel
- Open air-curtain front holding 2°C to 5°C with no door between the customer and the product
- Pull-down night curtain closes the face after hours to reduce overnight running cost
- Front-facing condenser with a removable filter, so servicing does not require pulling the case off the wall
- R290 CFC-free refrigerant, 1400W input at 14A on a 115V / 60Hz NEMA 5-20P supply
Specifications
Dimensions
Dimensions (W x D x H)
39.50" x 27.63" x 78.75"
Interior Dimensions (W x D x H)
32.38" x 22.00" x 48.25"
Gross Weight
590 lbs
Details
Model
NOM-40-S
Capacity
509.7 L / 18 Cu. Ft
Color
Black
Exterior
Black Brushed Stainless Steel
Glass
Double Tempered Glass
No. Of Shelves
4 (Adjustable) + Base Display Deck
Shelf Arrangement
4 Adjustable Shelves Above A Base Display Deck
Air Curtain
Yes (Open Front, No Doors)
Night Curtain
Pull-Down Night Curtain
Lighting
Cool-Toned LED On Top And Under Each Shelf
Price Tag Channel
Yes
Refrigerant
R290 (CFC-Free)
Temperature Range
2°C to 5°C
Temperature Controller
Digital Temperature Controls With Separate Light Controls
Condenser
Front-Facing With Easy-To-Clean Filter
Drain
Heated Drain Pan For Condensation Evaporation
Ambient Temperature
≤ 30°C
Ambient Humidity
≤ 55%
Power Consumption
1400W
Voltage
115V
Amps
14A
Hertz
60
Nema
5-20P
Item Condition
New
Warranty / Certifications
Warranty
3 Years Parts & Labour / 5 Years Compressor
