New Air - 40" Heated Vertical Open Merchandiser, Shallow Depth - NOM-40-HT
Model Number: DIST-NOM-40-HT
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description

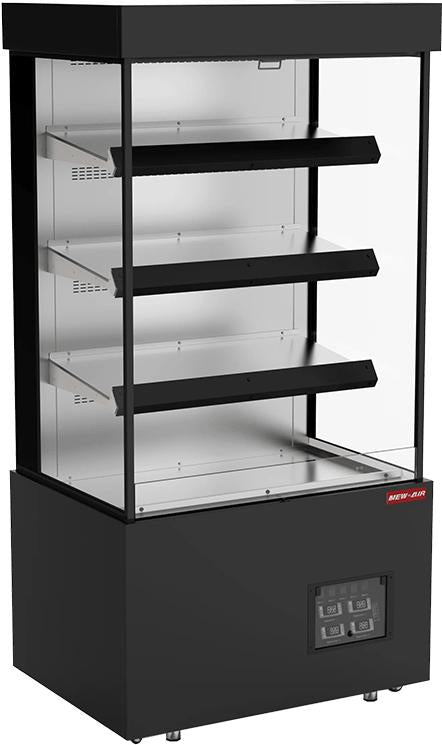

The NOM-40-HT is a heated vertical open merchandiser built for narrow service runs, measuring 39.50" wide by 27.63" deep. It holds 388 L (13.7 cu. ft.) of packaged hot food between 65°C and 71°C on three adjustable shelves and a base level. Convenience store hot counters and cafe queues are where a case this shallow tends to go.
Interior space measures 36.88" x 18.00" x 49.00", and the 18.00" shelf depth favours single-depth facings over double-stacked trays. Black brushed stainless steel wraps the exterior, double-pane tempered glass closes the sides, and a pull-down night curtain covers the front overnight. Power is 208V to 240V single phase, drawing up to 20.0A through a NEMA 6-30P cord.
Key Features:
- 27.63" cabinet depth fits service runs where a full-depth case would crowd the aisle
- 388 L (13.7 cu. ft.) held at 65°C to 71°C on three adjustable shelves plus the base
- Separate digital temperature control per shelf, with the light switch on its own circuit
- Warm-toned LED above and under each shelf lights product from both sides
- Pull-down night curtain keeps heat in the cabinet after close
- Four casters and two front legs allow the unit to be rolled out for cleaning behind
Specifications
Dimensions
Dimensions (W x D x H)
39.50" x 27.63" x 76.88"
Interior Dimensions (W x D x H)
36.88" x 18.00" x 49.00"
Details
Model
NOM-40-HT
Capacity
388 L / 13.7 Cu. Ft
Color
Black Brushed Stainless Steel
No. Of Shelves
3 (Adjustable) + Base
Glass Type
Double-Pane Tempered Glass
Night Curtain
Pull-Down
Temperature Range
65°C to 71°C
Temperature Controller
Digital Control, Independent Per Shelf
Lighting
Warm Toned LED Above And Under Each Shelf
Light Switch
Separate From Temperature Control
Voltage
208V - 240V
Amps
17.12A (208V) / 20.0A (240V)
Hertz
60
Phase
Single Phase
Nema
6-30 P
Ambient Rating
30°C Max / 55% Max Humidity
Castors
4 Casters + 2 Front Legs
Item Condition
New
Warranty / Certifications
Warranty
3 Years Parts & Labour
Certification
Intertek ETL Tested
