New Air - 36" Two Drawer Refrigerated Chef Base - NCB-036-SS
Model Number: DIST-NCB-036-SS
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description

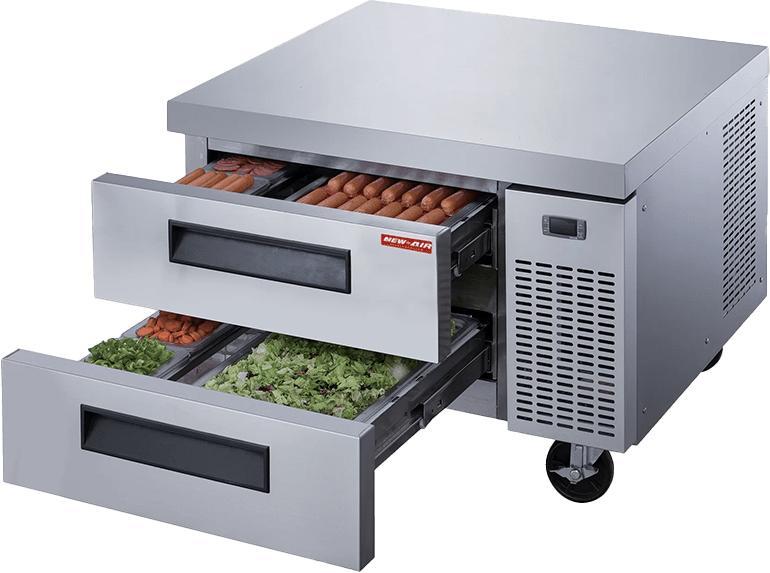

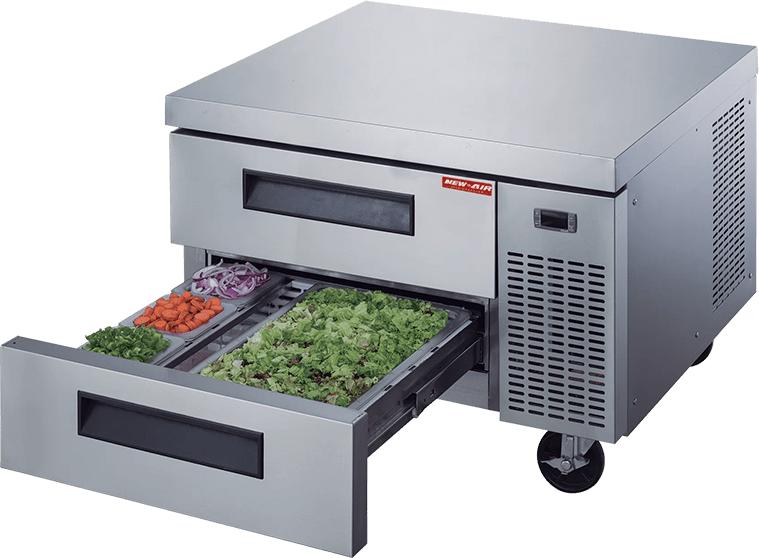

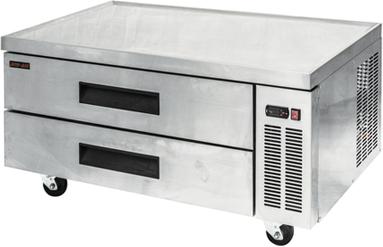

The New Air NCB-036-SS is a 36" refrigerated chef base built to sit under a griddle, charbroiler or hot plate and hold the day's mise en place within arm's reach. Two removable drawers give 167 L of cold storage in a footprint 32.25" deep, which suits food trucks, line cooks working a tight cook station, and any kitchen that needs prep storage where the heat is. Each drawer takes three full-size 12" x 20" pans, so a full line setup lives in one cabinet.
Construction is 304 stainless steel inside and 430 stainless steel outside, with rounded interior corners that wipe down without a scraper. The top is a single piece with a raised V edge that keeps spills from running off onto the floor, and four 2.50" swivel casters (two braked) let the unit roll out for cleaning behind the line. A 1/6 HP side-mounted system running R290 holds 0.5°C to 5°C, and the whole unit draws 287 W on a standard 115V/60Hz outlet through a NEMA 5-15P cord.
Key Features:
- Holds the line's cold prep in 167 L across two removable drawers, three full-size 12" x 20" pans per drawer
- Doubles as an equipment stand at 36.00" wide by 32.25" deep by 26.63" high, sized to carry a countertop griddle or hot plate
- One-piece top with a V edge contains spills instead of letting them run onto the floor
- 304 stainless interior with rounded corners and a 430 stainless exterior clean up fast in a greasy cook-line environment
- R290 hydrocarbon refrigerant and a 1/6 HP compressor hold 0.5°C to 5°C on 287 W, so it plugs into an ordinary 115V outlet
- Four 2.50" swivel casters, two with brakes, so the unit rolls out for cleaning and locks back in place
Specifications
Dimensions
Dimensions (W x D x H)
36.00" x 32.25" x 26.63"
Packaged Dimensions (W x D x H)
37.63" x 34.25" x 29.13"
Caster Diameter
2.50"
Net Weight
176 lbs
Gross Weight
216 lbs
Details
Model
NCB-036-SS
Capacity
167 L / 6 Cu. Ft
No. Of Drawers
2 (Removable)
Pan Capacity
3 Full-Size 12" x 20" Pans Per Drawer (6 Total)
Access Type
Drawers
Refrigerant
R290 (CFC-Free)
Temperature Range
0.5°C to 5°C
Temperature Controller
Digital Control
Defrosting
Automatic, Adjustable Defrost Frequency
Compressor Location
Side Mounted
Horsepower
1/6 HP
Power Consumption
287W
Voltage
115V
Amps
1.7A
Hertz
60
Phase
Single Phase
Nema
5-15 P
Exterior Material
430 Stainless Steel
Interior Material
304 Stainless Steel With Rounded Corners
Top Design
One-Piece Cabinet Top With Drip-Resistant V Edge
Castors
4 Swivel (2 With Brakes)
Drawer Rails
Heavy-Duty, High Weight Bearing
Plumbing Required
No
Item Condition
New
Warranty / Certifications
Warranty
2 Years Parts & Labor / 3 Additional Years Compressor Part Coverage
Certification
cETLus Listed
