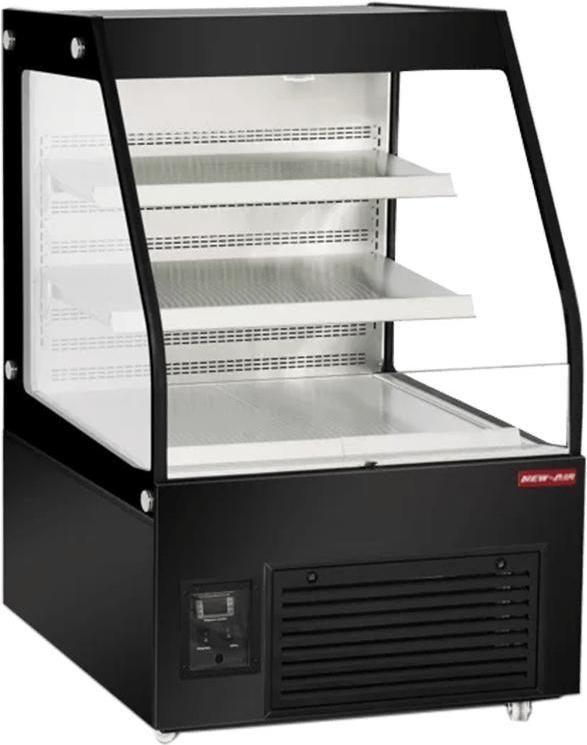

New Air - 36" Refrigerated Low Vertical Open Merchandiser - NOM-36-CDS
Model Number: DIST-NOM-36-CDS
Description
The NOM-36-CDS is a medium-profile refrigerated open merchandiser that stops at 53.50" tall, low enough to see across. Delis, coffee shops and hotel breakfast counters use this height when a full-height case would wall off the room. It holds 191 litres, 6.74 cubic feet, behind an air curtain with no doors.
Two shelves adjust for both height and angle, so packaged salads and sandwiches can be tilted forward toward the customer above the base display deck. The 35.75" deep cabinet is wrapped in black brushed stainless steel with double tempered glass at the ends, and a heating element in the drain pan evaporates condensate. It plugs into a standard 115V outlet at 8.5A on a NEMA 5-15P, so no electrical work is needed before it is switched on.
Key Features:
- 53.50" overall height keeps sightlines open across a servery or market floor
- Two shelves adjust for height and angle, letting packaged product face the customer above the base deck
- 191 L / 6.74 cu. ft. of refrigerated display in a 35.50" x 35.75" footprint
- Open air-curtain front holding 2°C to 5°C, with a pull-down night curtain for overnight closure
- 8.5A on a 115V / 60Hz NEMA 5-15P plug, which is a standard outlet in most rooms
- Drain pan heating element evaporates condensation, so no floor drain is needed at the position
Specifications
Dimensions
Dimensions (W x D x H)
35.50" x 35.75" x 53.50"
Interior Dimensions (W x D x H)
33.50" x 23.00" x 28.00"
Details
Model
NOM-36-CDS
Capacity
191 L / 6.74 Cu. Ft
Color
Black
Exterior
Black Brushed Stainless Steel
Glass
Double Tempered Glass
No. Of Shelves
2 (Adjustable For Height And Angle) + Base Display Deck
Shelf Arrangement
2 Adjustable Shelves Above A Base Display Deck
Air Curtain
Yes (Open Front, No Doors)
Night Curtain
Pull-Down Night Curtain
Lighting
Cool-Toned LED On Top And Under Each Shelf
Price Tag Channel
Yes
Temperature Range
2°C to 5°C
Temperature Controller
Digital Temperature Control With Separate Light Switch
Condenser
Front-Facing With Easy-To-Clean Filter
Drain
Drain Pan Heating Element For Condensation Evaporation
Ambient Temperature
≤ 30°C
Ambient Humidity
≤ 55%
Voltage
115V
Amps
8.5A
Hertz
60
Nema
5-15P
Item Condition
New
Warranty / Certifications
Warranty
3 Years Parts & Labour / 5 Years Compressor
