New Air - 36" Curved Glass Refrigerated Display Case - NDC-36-CG
Model Number: DIST-NDC-36-CG
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description

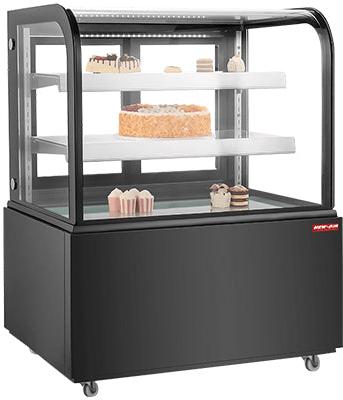

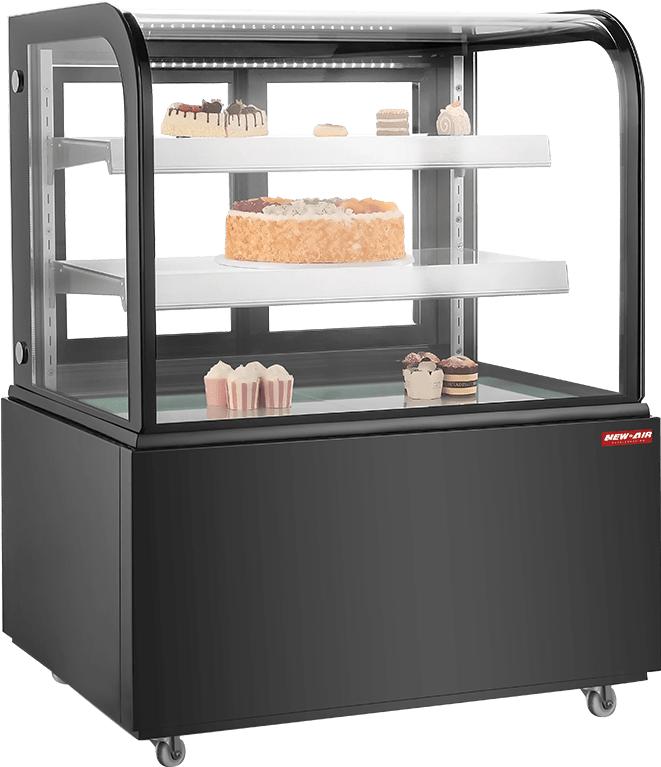

The New Air NDC-36-CG is a 36" curved glass refrigerated display case for bakeries, pastry shops, cafes and grocery counters where product sells on sight. It gives an operator 270 L, or 9.53 cu. ft., of merchandised space and holds 2°C to 12°C off a single 120V circuit. The curved front glass brings the upper shelf toward the customer instead of hiding it behind a flat pane.
The cabinet is black brushed stainless steel with double tempered glass all around, and air ducts on three sides pull condensation away so the glass stays clear through a long service period. Both glass shelves adjust for height and angle, so a tray of pastry and a deli platter can share the same case. Staff load from the back through sliding doors, which leaves the customer face undisturbed. Casters let one person roll the unit out to clean behind it.
Key Features:
- 270 L of display space, 9.53 cu. ft., inside a 34.00" x 23.00" x 25.50" interior that occupies a 37.00" x 27.00" footprint
- Holds 2°C to 12°C on R290 hydrocarbon refrigerant with automatic defrost, so the case does not need to be shut down mid-shift
- LED lighting under each shelf puts light on the product from close range instead of washing it out from one overhead source
- Double tempered glass all around with air ducts on three sides to keep condensation off the viewing surface
- Two glass shelves adjust for both angle and height, the top at 31.70" x 12.40" and the middle at 31.70" x 14.76"
- Runs on a standard 120V/60Hz outlet at 4.5 A, single phase, on a NEMA 5-15P cord
Specifications
Dimensions
Dimensions (W x D x H)
37.00" x 27.00" x 47.75"
Interior / Display Dimensions (W x D x H)
34.00" x 23.00" x 25.50"
Top Shelf (W x D)
31.70" x 12.40"
Middle Shelf (W x D)
31.70" x 14.76"
Net Weight
339.51 lbs
Details
Model
NDC-36-CG
Capacity
270 L / 9.53 Cu. Ft
Color
Black
No. Of Shelves
2
Shelf Material
Glass, Adjustable For Angle And Height
Glass Type
Double Tempered Glass All Around, Curved Front
Lighting
LED Under Each Shelf
Refrigerant
R290 (CFC-Free)
Temperature Range
2°C to 12°C
Temperature Controller
Digital Control With LED Display
Defrosting
Automatic
Ambient Rating
30°C Max / 55% Max Humidity
No. Of Doors
2 (Rear Sliding)
Compressor Location
Bottom Mounted
Power Consumption
380W
Voltage
120V
Amps
4.5A
Hertz
60
Phase
Single Phase
Nema
5-15 P
Castors
4 Heavy-Duty
Construction Material
Black Brushed Stainless Steel With Tempered Glass
Air Ducts
3 Sides, To Remove Condensation Around The Glass
Item Condition
New
Warranty / Certifications
Warranty
1 Year Parts & Labor
Certification
ETL Listed
