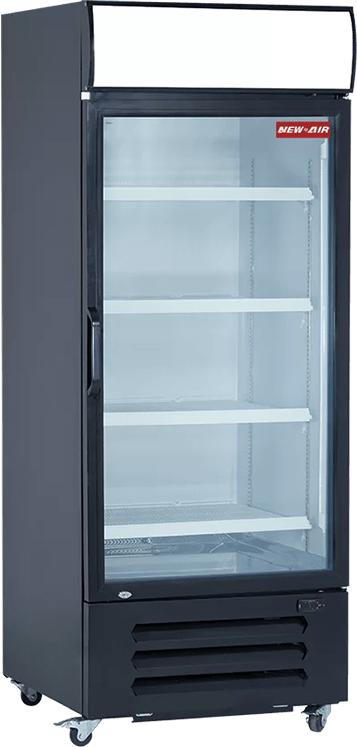

New Air - 30" Single Glass Door Refrigerated Merchandiser with Illuminated Canopy - NGR-068-H
Model Number: DIST-NGR-068-H
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
120V
This product requires 120V.
NEMA 5-15P
Single Phase
This product requires single phase power, common in commercial establishments and restaurants.
ETL lntertek
NSF Certified
This product has met requirements for safety, quality, sustainability & performance standards set by the NSF group.
CSA
Description
The New Air NGR-068-H puts 683 L (24.12 cu. ft.) of refrigerated display behind one hinged glass door in a 30.00" wide cabinet. Grocery front-ends and restaurant service areas use it for bottled drinks and grab-and-go food that has to stay cold and stay visible. The controller holds the box between 0°C and 7°C.
Depth is what buys the capacity here. At 32.13" front to back the cabinet is over seven inches deeper than the 24" model in the same series, so each of the four adjustable 20.00" x 19.00" shelves carries more rows of stock. The door glazing is double-pane tempered glass and it self-closes with a stay-open detent for restocking. R290 refrigerant and a 2.85 A draw at 115V/60Hz keep it on an ordinary wall circuit.
Key Features:
- 683 L (24.12 cu. ft.) behind a single hinged door in a 30.00" wide footprint
- 32.13" cabinet depth gives four adjustable 20.00" x 19.00" shelves room for deeper facings
- Self-closing door with a stay-open detent so staff can restock without holding it
- Carel digital controller with LED display maintains 0°C to 7°C
- Backlit canopy display and interior LED lighting keep the door front readable from the aisle
- R290 refrigerant, 115V/60Hz, 2.85 A on a NEMA 5-15P plug
Specifications
Dimensions
Dimensions (W x D x H)
30.00" x 32.13" x 78.63"
Interior Dimensions (W x D x H)
20.50" x 19.88" x 48.00"
Shelf Dimensions (W x D)
20.00" x 19.00"
Net Weight
126 lbs
Details
Model
NGR-068-H
Capacity
683 L / 24.12 Cu. Ft
Color
Black Exterior
No. Of Doors
1 (Hinged, Self-Closing With Stay-Open)
No. Of Shelves
4 (Adjustable)
Glass Type
Double-Pane Tempered Glass
Lighting
LED Interior Lighting
Canopy / Header
Backlit LED Canopy Display Sign
Temperature Range
0°C to 7°C
Temperature Controller
Carel Digital Control With LED Display
Defrosting
Automatic
Refrigerant
R290 (CFC-Free)
Compressor
Embraco
Voltage
115V
Amps
2.85A
Hertz
60
Phase
Single Phase
Nema
5-15 P
Castors
Swivel, 2 With Brakes, With Rear Stoppers
Ambient Rating
38°C Max / 55% Max Humidity
Item Condition
New
Warranty / Certifications
Warranty
3 Years Parts & Labour / 5 Years Compressor
Certification
Intertek ETL Tested, Conforms To UL STD. 471, NSF/ANSI STD. 7 And CSA STD. C22.2 No. 120
Reviews
New Air is shipped free across Canada on orders over $149. New Air Refrigeration is a trusted Canadian partner offering quality, competitively priced commercial refrigeration equipment. Specializing in glass door refrigerators and ice cream freezers, New Air provides advanced solutions designed to meet a variety of commercial refrigeration needs.
