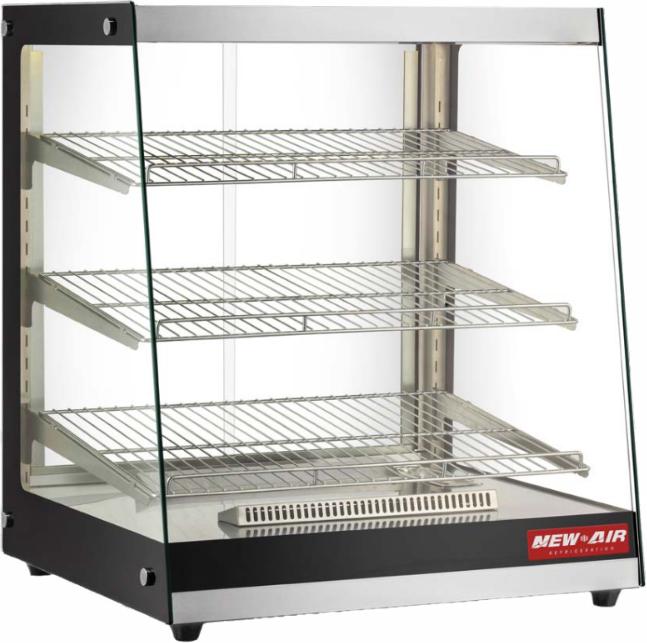

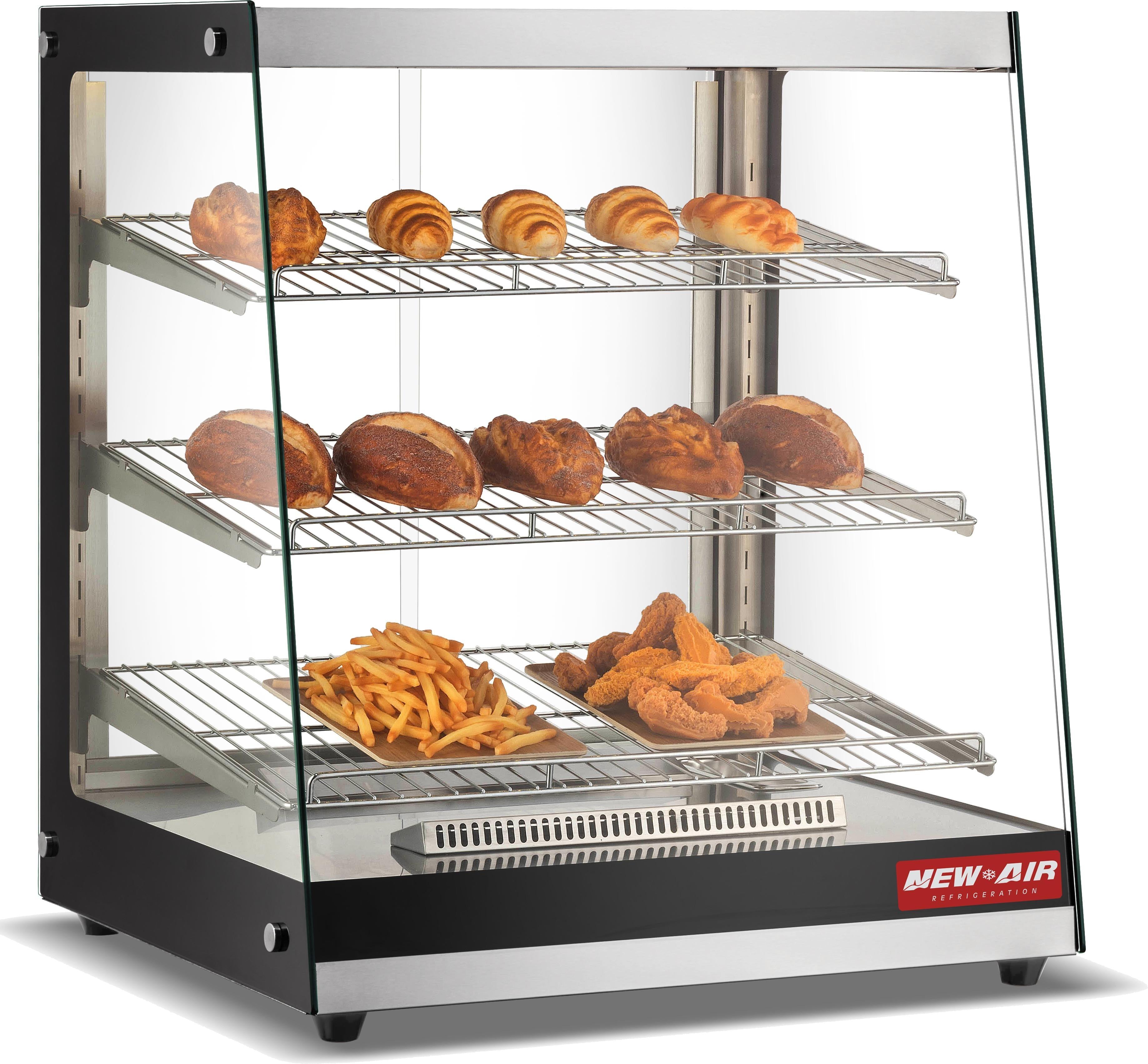

New Air - 30" Heated Countertop Display Case - NCHD-30-35SQ
Model Number: DIST-NCHD-30-35SQ
Description
The NCHD-30-35SQ is a heated countertop display case holding 7.24 cu. ft. (205 L) at temperatures between 30°C and 70°C. It is aimed at delis and bakery counters that need hot product held in view rather than hidden in a warming drawer. A digital controller sets the cabinet temperature and a switch at the rear handles power.
Double pane glass on all four sides means the product reads from the front and both ends, and LED lighting inside keeps the surface bright. Three shelves adjust in angle so a tray of pastry can be tilted toward the customer. A built-in vent system limits condensation on the panes. The cabinet occupies 29.13" x 25.75" of counter and draws 7.4 A at 120 V, 60 Hz.
Key Features:
- Heated holding from 30°C to 70°C under digital control across 7.24 cu. ft. (205 L)
- Double pane glass on all four sides so hot product is visible from the front and both ends of the counter
- Three angle-adjustable shelves for tilting trays toward the customer
- Rear sliding glass door keeps restocking behind the display
- Built-in vents limit condensation so the glass stays readable while the cabinet is hot
- 7.4 A at 120 V, 60 Hz on a NEMA 5-15P plug in a 29.13" x 25.75" x 33.50" body
Specifications
Dimensions
Dimensions (W x D x H)
29.13" x 25.75" x 33.50"
Packaged Dimensions (W x D x H)
31.13" x 28.13" x 35.00"
Net Weight
142.00 lbs
Details
Model
NCHD-30-35SQ
Capacity
205 L / 7.24 Cu. Ft
No. Of Shelves
3 (Adjustable Angles)
No. Of Doors
1 (Rear Sliding Glass)
Temperature Range
30°C to 70°C
Temperature Controller
Digital, Rear Mounted
Ambient Rating
30°C Max / 55% Max Humidity
Lighting
LED Interior Lighting
Glass Type
Double Pane Glass On All 4 Sides
Condensation Control
Built-In Ventilation System
Power Switch
Rear Mounted On/Off
Voltage
120V
Amps
7.4A
Hertz
60
Nema
5-15P
Item Condition
New
Warranty / Certifications
Warranty
1 Year Parts & Labour
