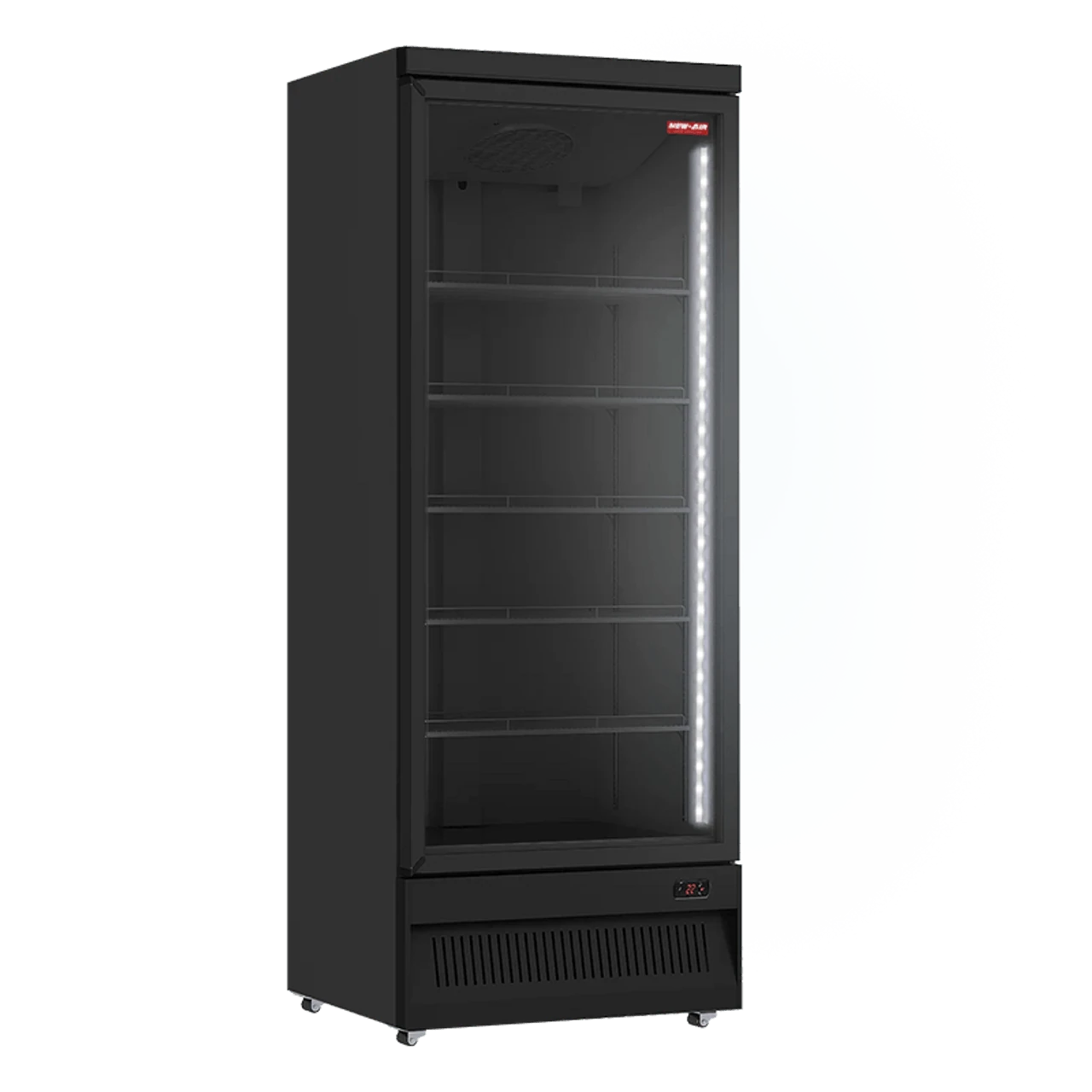

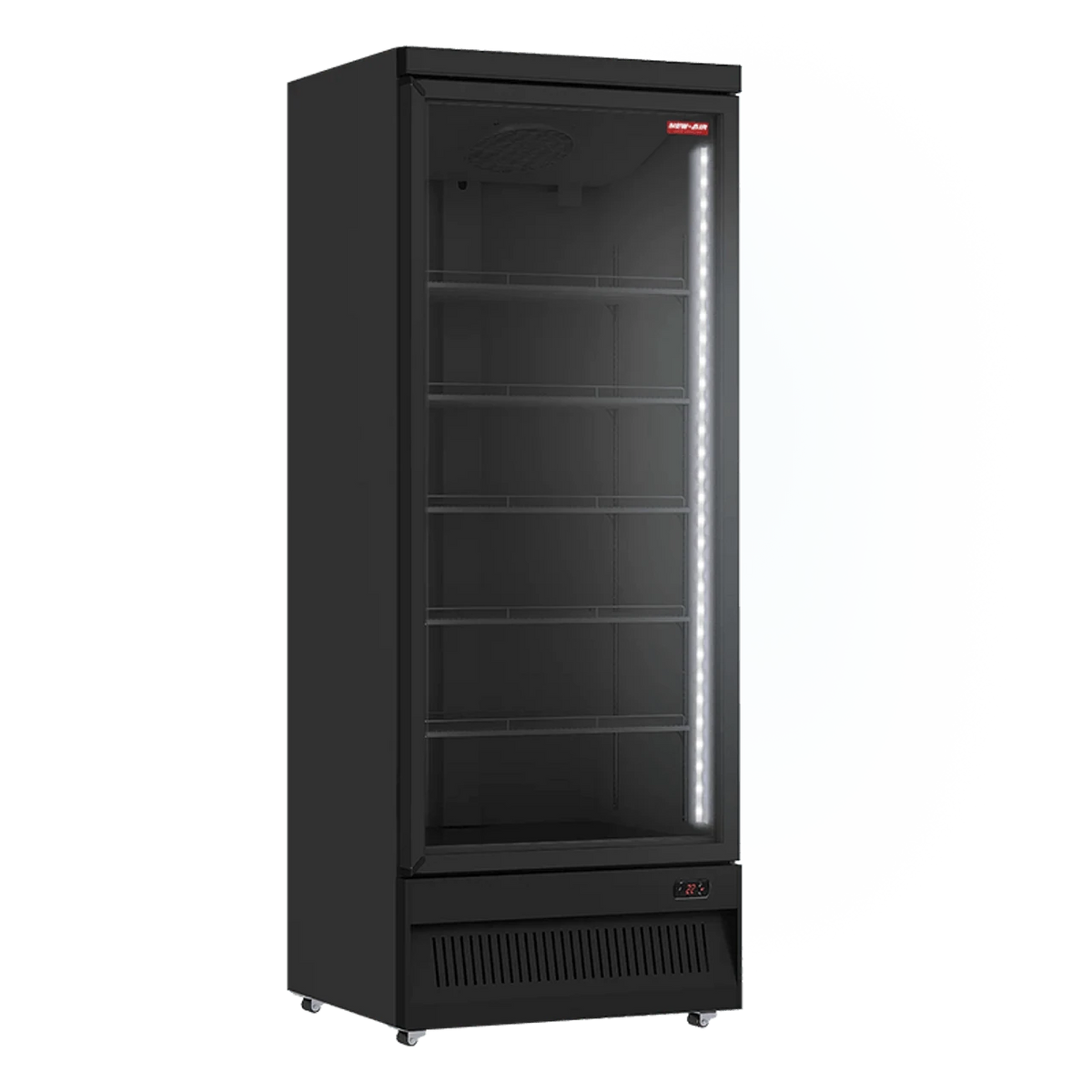

New Air - 30" Black Single Glass Door Refrigerated Merchandiser - NGR-30-HB
Model Number: DIST-NGR-30-HB
Description
The NGR-30-HB is a 30-inch-class single-door refrigerated merchandiser holding 614 litres, or 21.68 cubic feet. It is the entry point into New Air's HB cabinet platform, the same shell used for the 49-inch and 74-inch multi-door units, so a single-door store can later match finishes across a longer run. Five adjustable shelves sit behind one hinged glass door.
Interior lighting uses New Air's patented i-light system, which spreads light across the shelf faces instead of glaring off the glass. Temperature is set on a Carel digital controller with an LED display and held between 1°C and 10°C on R290 refrigerant. The cabinet is built on an aluminum frame with a stainless steel interior and base, weighs 286.6 pounds, and draws 6.75 amps at 115V.
Key Features:
- 614 L of display volume through a single hinged door, so one aisle position covers a full category
- Carel digital controller with LED display for reading and setting the 1°C to 10°C band without opening the door
- Patented i-light interior lighting reduces glare across the double-pane tempered Low-E glass
- Aluminum frame with a stainless steel interior and base, and an integrated motor that keeps the frame slim
- R290 CFC-free refrigerant running at 6.75 A on a 115V / 60Hz NEMA 5-15P circuit
- Wheels with rear stoppers for pulling a 286.6 lb cabinet out to clean behind it
Specifications
Dimensions
Dimensions (W x D x H)
29.00" x 25.00" x 77.88"
Interior Dimensions (W x D x H)
29.00" x 25.00" x 62.50"
Net Weight
286.6 lbs
Details
Model
NGR-30-HB
Capacity
614 L / 21.68 Cu. Ft
Color
Black
No. Of Doors
1 (Hinged, Self-Closing With Lock)
No. Of Shelves
5 (Adjustable)
Glass Type
Double-Pane Tempered Low-E Glass
Lighting
Patented i-light Anti-Glare LED Interior Lighting
Temperature Range
1°C to 10°C
Temperature Controller
Carel Digital Controller With LED Display
Refrigerant
R290 (CFC-Free)
Compressor
Integrated Motor
Cabinet Construction
Aluminum Frame With Stainless Steel Interior And Base
Mobility
Wheels With Rear Stoppers
Voltage
115V
Amps
6.75A
Hertz
60
Nema
5-15P
Item Condition
New
Warranty / Certifications
Warranty
2 Years Parts & Labour / 5 Years Compressor
