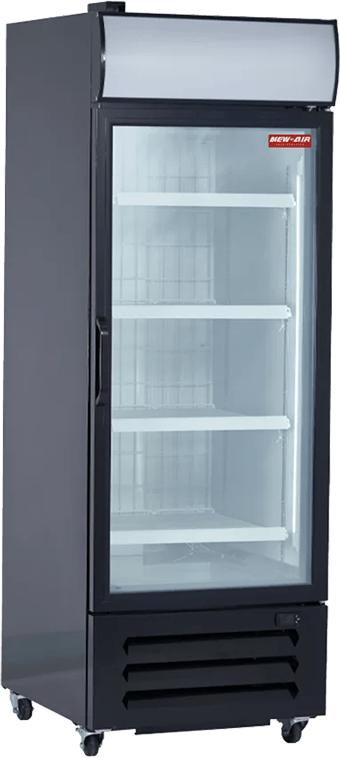

New Air - 27" Single Glass Door Freezer Merchandiser with Illuminated Canopy - NGF-054-H
Model Number: DIST-NGF-054-H
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description
The NGF-054-H is a single glass door freezer merchandiser sized for convenience stores, grocery front-of-house and cafes that sell frozen product from the sales floor. One hinged door fronts 554 L (19.56 cu. ft.) of storage held at -18°C to -22°C. A backlit canopy above the door carries branded signage at eye level.
The cabinet is finished in black and glazed with triple-pane tempered glass, which keeps the view clear while limiting heat gain at freezer temperatures. Four adjustable shelves measuring 22.00" x 25.00" divide a 48.00" tall interior, and casters with front brakes let staff roll the unit out for cleaning. A Carel digital controller with an LED display holds the setpoint, and the R290 system draws 7.0 A through a NEMA 5-15P plug.
Key Features:
- Backlit LED canopy display sign above a single hinged glass door
- 554 L (19.56 cu. ft.) of frozen storage in a 27.00" wide cabinet
- Triple-pane tempered glass to cut heat gain across the -18°C to -22°C range
- Carel digital controller with an LED display for setpoint and readout
- Four adjustable 22.00" x 25.00" shelves in a 48.00" tall interior
- R290 refrigerant drawing 7.0 A at 115 V, 60 Hz on a NEMA 5-15P plug
Specifications
Dimensions
Dimensions (W x D x H)
27.00" x 32.88" x 78.63"
Interior Dimensions (W x D x H)
22.00" x 25.50" x 48.00"
Shelf Dimensions (W x D)
22.00" x 25.00"
Net Weight
275.5 lbs
Gross Weight
320 lbs
Details
Model
NGF-054-H
Capacity
554 L / 19.56 Cu. Ft
Color
Black Exterior
No. Of Doors
1 (Hinged, Self-Closing With Stay-Open)
No. Of Shelves
4 (Adjustable)
Glass Type
Triple-Pane Tempered Glass
Lighting
LED Interior Lighting
Canopy / Header
Backlit LED Canopy Display Sign
Temperature Range
-18°C to -22°C
Temperature Controller
Carel Digital Controller With LED Display
Defrosting
Automatic
Refrigerant
R290 (CFC-Free)
Casters
Yes (With Front Brakes)
Ambient Temperature
Less Than Or Equal To 25°C
Ambient Humidity
Less Than Or Equal To 55%
Voltage
115V
Amps
7.0A
Hertz
60
Phase
Single Phase
Nema
5-15P
Item Condition
New
Warranty / Certifications
Warranty
3 Years Parts & Labour / 2 Additional Years Compressor Coverage
Reviews
New Air is shipped free across Canada on orders over $149. New Air Refrigeration is a trusted Canadian partner offering quality, competitively priced commercial refrigeration equipment. Specializing in glass door refrigerators and ice cream freezers, New Air provides advanced solutions designed to meet a variety of commercial refrigeration needs.
