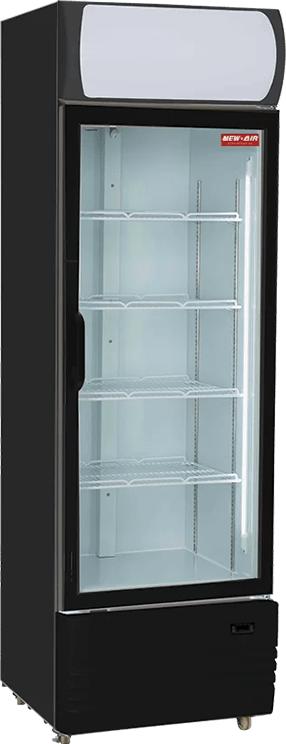

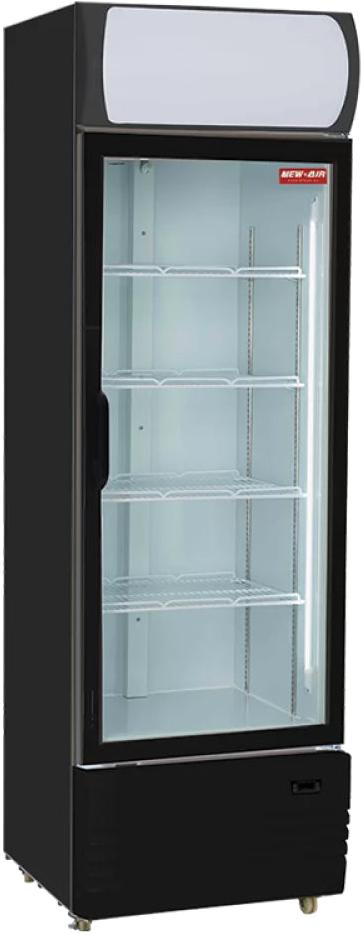

New Air - 24" Single Glass Door Refrigerated Merchandiser with Illuminated Canopy - NGR-036-H
Model Number: DIST-NGR-036-H
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description
The New Air NGR-036-H is a 24" single glass door refrigerated merchandiser for convenience stores, cafes and grocery front-ends that need cold product on display in a narrow footprint. It holds 12.7 cubic feet behind one self-closing hinged door and runs from 1°C to 10°C. A backlit LED canopy sits above the door and carries branding or price messaging at customer eye level.
The cabinet is finished black outside and white inside, with double-pane tempered glass in the door to hold temperature through a busy service period. A Carel digital controller with LED display sets the temperature and handles automatic defrost, while the R290 bottom-mounted system circulates air upward across four adjustable shelves. Castors and rear stoppers let staff roll the unit out to reach the condenser, and a built-in lock secures stock after hours.
Key Features:
- 12.7 cu. ft. (360 L) of merchandising space on four adjustable shelves measuring 20.00" x 19.00"
- Backlit LED canopy display and interior LED lighting keep product visible and branded
- Carel digital controller with LED display and automatic defrost holds 1°C to 10°C
- Double-pane tempered glass with a self-closing hinged door limits warm air infiltration
- R290 refrigerant with a bottom-mounted 0.25 HP Wanbo compressor and upward air circulation
- Runs on a standard 115V/60Hz single-phase circuit at 2.85 A through a NEMA 5-15P cord
Specifications
Dimensions
Dimensions (W x D x H)
24.00" x 25.00" x 77.63"
Interior Dimensions (W x D x H)
20.50" x 19.88" x 48.00"
Shelf Dimensions (W x D)
20.00" x 19.00"
Crate / Shipping Dimensions (W x D x H)
26.00" x 27.00" x 83.00"
Net Weight
154 lbs
Gross Weight
175 lbs
Details
Model
NGR-036-H
Capacity
360 L / 12.7 Cu. Ft
Color
Black Exterior / White Interior
No. Of Doors
1 (Hinged, Self-Closing)
Hinge Location
Right
No. Of Shelves
4 (Adjustable)
Glass Type
Double-Pane Tempered Glass
Lighting
LED Interior Lighting
Canopy / Header
Backlit LED Canopy Display Sign
Temperature Range
1°C to 10°C
Temperature Controller
Carel Digital Control With LED Display
Defrosting
Automatic
Refrigerant
R290 (CFC-Free)
Compressor
Wanbo, Bottom Mounted
Horsepower
0.25 HP
Air Circulation
Upward
Power Consumption
285W
Voltage
115V
Amps
2.85A
Hertz
60
Phase
Single Phase
Nema
5-15 P
Castors
Swivel 2.50" Diameter, 2 With Brakes, With Rear Stoppers
Lock
Built-In
Ambient Rating
32°C Max / 55% Max Humidity
Item Condition
New
Warranty / Certifications
Warranty
3 Years Parts & Labor / 2 Additional Years Compressor Part Coverage
Certification
cETLus Listed
