New Air - 24" Single Glass Door Refrigerated Merchandiser with Illuminated Canopy, Left Hinge - NGR-036L-H
Model Number: DIST-NGR-036L-H
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
120V
This product requires 120V.
NEMA 5-15P
Single Phase
This product requires single phase power, common in commercial establishments and restaurants.
ETL lntertek
NSF Certified
This product has met requirements for safety, quality, sustainability & performance standards set by the NSF group.
CSA
Description

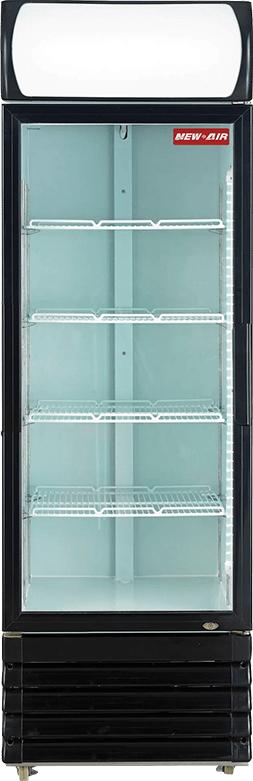

The New Air NGR-036L-H is a 24" refrigerated merchandiser with its single glass door hinged on the left, which is the version to order when the cabinet sits at the end of a run or against a wall that would block a right-hand swing. It carries 360 L (12.7 cu. ft.) of chilled product and holds 1°C to 10°C. Convenience stores and cafe front counters are the usual home for a cabinet this narrow.
The self-closing door is glazed with double-pane tempered glass and fitted with a built-in lock. Four adjustable wire shelves measuring 20.00" x 19.00" divide the 20.50" x 19.88" x 48.00" interior, so spacing can follow whatever mix of cans and packaged food is on display. A Carel digital controller runs the R290 system, and the cabinet draws 2.85 A from a standard 115V/60Hz outlet through a NEMA 5-15P cord.
Key Features:
- Left-hand door hinge clears adjacent walls and end-of-aisle positions that a right hinge would foul
- 360 L (12.7 cu. ft.) on four adjustable shelves of 20.00" x 19.00" in a cabinet only 24.00" wide
- Carel digital controller with LED display holds the box between 1°C and 10°C
- Backlit LED canopy display carries branding above the door, with LED lighting inside the cabinet
- Double-pane tempered glass and a self-closing door limit warm air pull-in during service
- R290 hydrocarbon refrigerant on a 115V/60Hz, 2.85 A circuit with a NEMA 5-15P plug
Specifications
Dimensions
Dimensions (W x D x H)
24.00" x 24.00" x 77.63"
Interior Dimensions (W x D x H)
20.50" x 19.88" x 48.00"
Shelf Dimensions (W x D)
20.00" x 19.00"
Net Weight
286.6 lbs
Details
Model
NGR-036L-H
Capacity
360 L / 12.7 Cu. Ft
Color
Black Exterior / White Interior
No. Of Doors
1 (Hinged, Self-Closing)
Hinge Location
Left
No. Of Shelves
4 (Adjustable Wire)
Glass Type
Double-Pane Tempered Glass
Lighting
LED Interior Lighting
Canopy / Header
Backlit LED Canopy Display Sign
Temperature Range
1°C to 10°C
Temperature Controller
Carel Digital Control With LED Display
Refrigerant
R290 (CFC-Free)
Voltage
115V
Amps
2.85A
Hertz
60
Phase
Single Phase
Nema
5-15 P
Lock
Built-In
Castors
Heavy Duty
Ambient Rating
32°C Max / 55% Max Humidity
Item Condition
New
Warranty / Certifications
Warranty
3 Years Parts & Labour / 5 Years Compressor
Certification
Intertek ETL Tested, Conforms To UL STD. 471, NSF/ANSI STD. 7 And CSA STD. C22.2 No. 120
