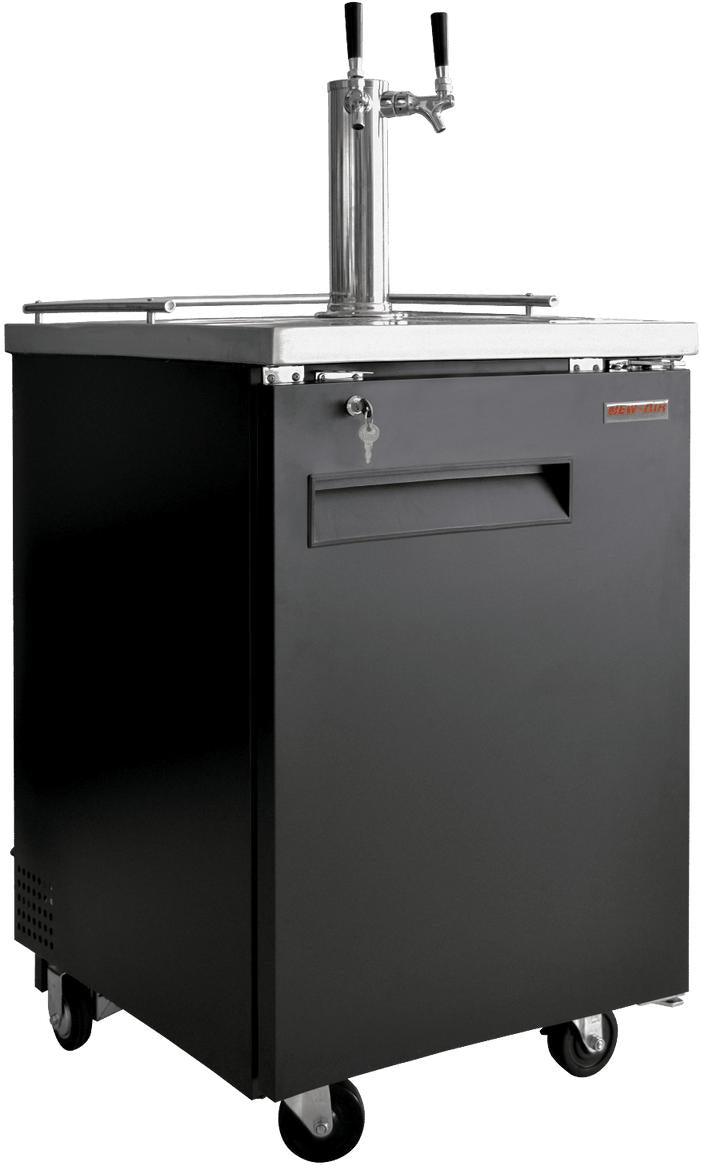

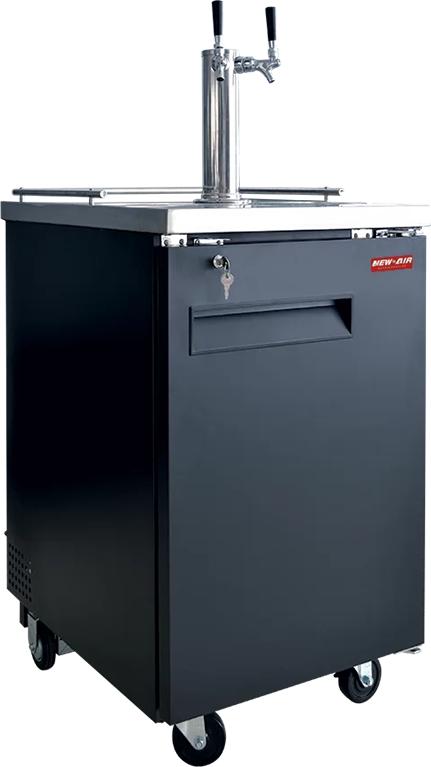

New Air - 23" Single Solid Door Beer Dispenser - NBD-23-SB
Model Number: DIST-NBD-23-SB
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description
The New Air NBD-23-SB is a 23.50" wide draft beer dispenser for bars and pubs running a single house tap. One half-barrel keg sits inside the 6.5 cubic foot cabinet, and the Talos beer tower kit ships with two keg couplers so the line can be hooked up on delivery. A Carel digital controller holds the cabinet between 0°C and 5°C, with an interior thermometer for a read at the bar.
The exterior is black coated steel with a 304 stainless steel top and safety bar, and galvanized steel on the back and bottom panels. A side mounted evaporator keeps the 19.50" x 26.00" x 29.00" interior clear for the keg, and the condenser coil stays reachable for cleaning. Two shelves are included for bottle storage between keg changes. The unit rolls on casters, two of them braked, so staff can pull it out for line service.
Key Features:
- Serves one half-barrel keg from a 6.5 cubic foot (184 L) cabinet measuring 23.50" W x 30.75" D x 39.75" H
- Carel digital temperature controller holds 0°C to 5°C, backed by an interior thermometer
- Talos beer tower kit with faucet, two keg couplers and a removable drip tray are included, so nothing extra is needed to pour
- R290 hydrocarbon refrigerant, CFC free, driven by a 1/6 HP Embraco compressor
- Interior LED lighting and a self-closing door with a lock keep product visible and secured
- Runs on a standard 115V, 60 Hz circuit through a NEMA 5-15P cord, drawing 216 W
Specifications
Dimensions
Dimensions (W x D x H)
23.50" x 30.75" x 39.75"
Overall Height With Beer Tower
54.50"
Interior Dimensions (W x D x H)
19.50" x 26.00" x 29.00"
Beer Tower Height
14.70"
Beer Tower Diameter
3.00"
Net Weight
154 lbs
Gross Weight
176 lbs
Details
Model
NBD-23-SB
Capacity
184 L / 6.5 Cu. Ft
Color
Black
Keg Capacity
1 x 1/2 Barrel Keg
No. Of Doors
1 (Solid Swing, Self-Closing With Lock)
Beer Tower
1 x Talos Beer Tower Kit With Faucet
Keg Couplers
2 Included
No. Of Shelves
2
Drip Tray
Removable
Refrigerant
R290 (CFC-Free)
Temperature Range
0°C to 5°C
Temperature Controller
Carel Digital Control With Interior Thermometer
Evaporator
Side Mounted
Compressor
Embraco, 1/6 HP
Power Consumption
216W
Voltage
115V
Amps
4.7A
Hertz
60
Phase
Single Phase
Nema
5-15 P
Lighting
Interior LED
Castors
Included, 2 With Brakes
Exterior Material
Black Coated Steel
Top Panel
304 Stainless Steel With Safety Bar
Back & Bottom Panels
Galvanized Steel
Item Condition
New
Warranty / Certifications
Warranty
2 Years Parts & Labor / 3 Additional Years Compressor Part Coverage
Certification
cETLus Listed
