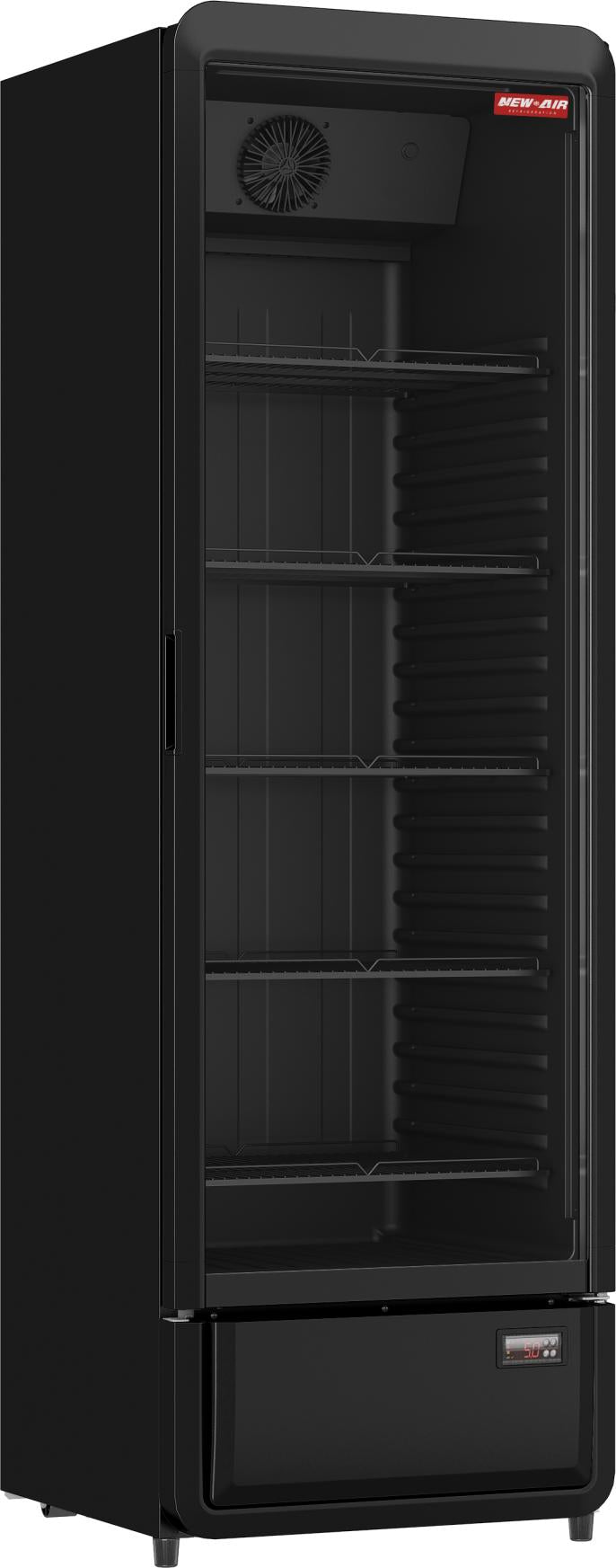

New Air - 23" Black Single Glass Door Refrigerated Merchandiser - NGR-23-71H
Model Number: DIST-NGR-23-71H
Description
The NGR-23-71H is a 23-inch-wide single-door refrigerated merchandiser holding 377 litres, the largest single-door cabinet in the compact end of the NGR range. Grocery front ends, restaurants and cafés use it where a 30-inch cabinet is too wide for the run. Five shelves at 20.25 inches wide carry more facings per shelf than the narrower models.
This model moves up to R290 refrigerant and a digital temperature controller, holding 1°C to 10°C rather than the 0°C to 10°C of the mechanical-control units below it. The cabinet has rounded corners, a black interior and exterior, and casters with front stabilizing feet, so it rolls out for cleaning and then sits fixed. Net weight is 132 pounds and the draw is 3.5 amps at 115V.
Key Features:
- 377 L behind a single hinged door, the deepest single-door capacity in the compact NGR line
- Digital temperature control holding 1°C to 10°C, a step up from the mechanical thermostats on the 17" and 21" cabinets
- Five shelves at 20.25" x 16.25" for wider facings per level
- R290 CFC-free refrigerant, the same charge used across the larger HB cabinets
- Casters with front stabilizing feet let a 132 lb unit be rolled out and then locked in place
- Double-pane tempered Low-E glass door with LED interior lighting and no canopy
Specifications
Dimensions
Dimensions (W x D x H)
23.50" x 24.00" x 74.00"
Interior Dimensions (W x D x H)
20.13" x 19.13" x 57.00"
Net Weight
132 lbs
Details
Model
NGR-23-71H
Capacity
377 L
Color
Black
No. Of Doors
1 (Hinged)
No. Of Shelves
5 (Adjustable)
Shelf Dimensions (W x D)
20.25" x 16.25"
Glass Type
Double-Pane Tempered Low-E Glass
Lighting
LED Interior Lighting
Temperature Range
1°C to 10°C
Temperature Controller
Digital Temperature Control
Refrigerant
R290 (CFC-Free)
Mobility
Casters With Front Stabilizing Feet
Ambient Conditions
35°C Max, 75% Relative Humidity Max
Voltage
115V
Amps
3.5A
Hertz
60
Nema
5-15P
Item Condition
New
Warranty / Certifications
Warranty
2 Years Parts & Labour / 5 Years Compressor
