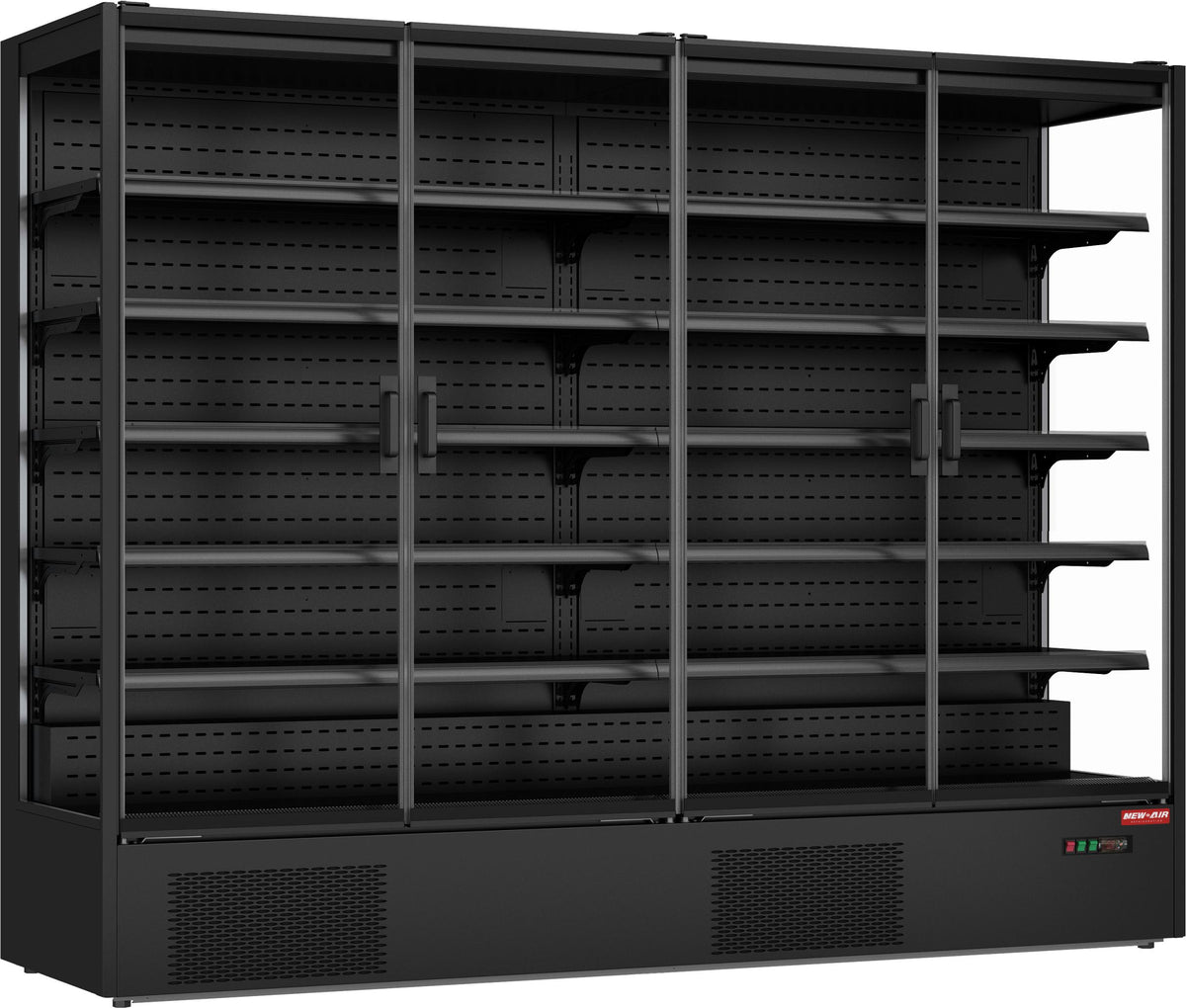

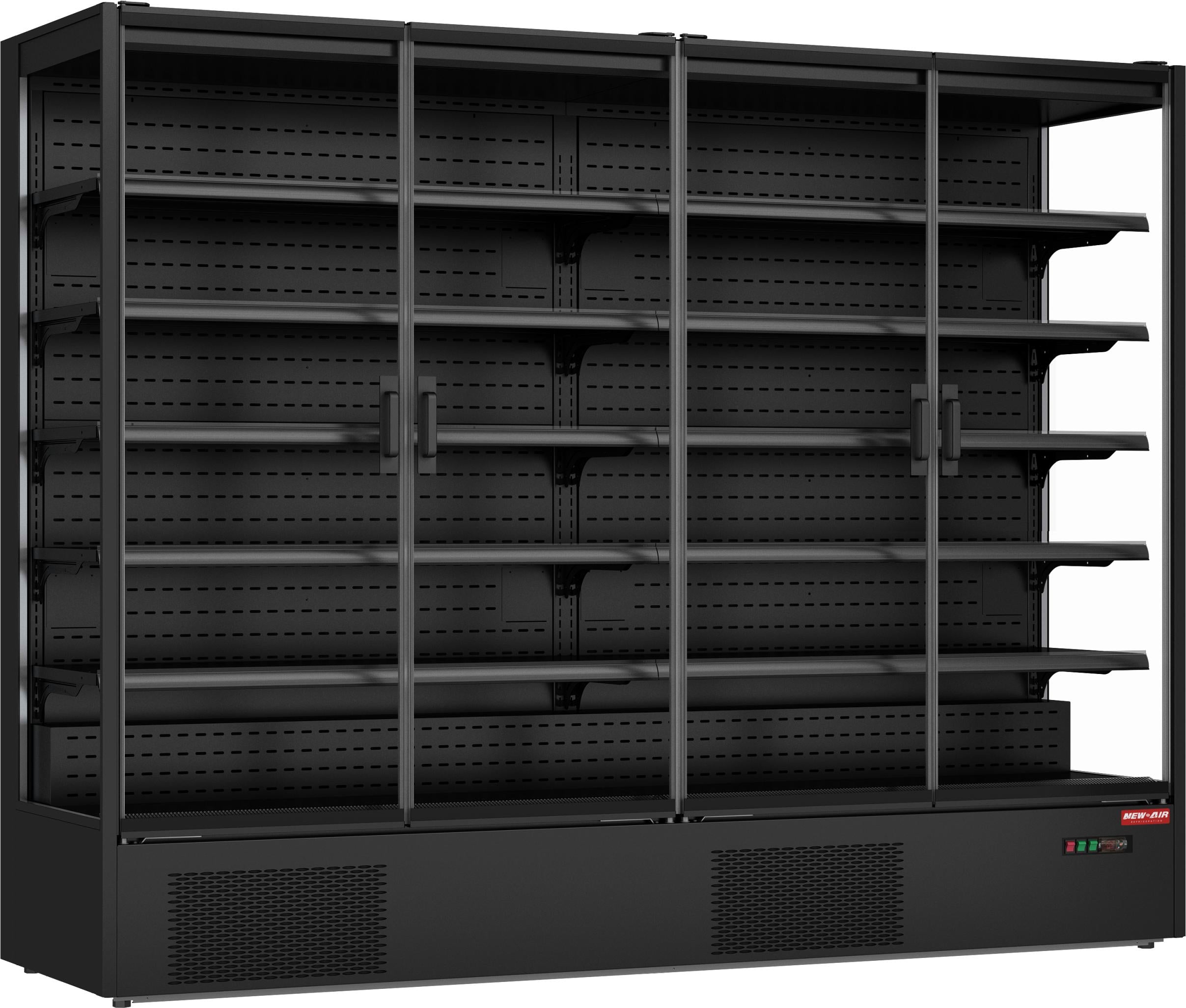

New Air - 100" Four Door Panoramic Multi Deck Refrigerated Merchandiser - NMD-100-4H
Model Number: DIST-NMD-100-4H
Description
The NMD-100-4H runs four hinged glass doors across 98.50" of width and holds 54 cu. ft., making it the largest unit in New Air's panoramic multi deck line. It suits supermarket grab-and-go walls and larger convenience formats that need one long refrigerated run instead of several separate cabinets. Frameless anti-glare glass and glass side walls hold the sightline across all four doors.
Twenty shelves across five levels adjust in height, and each carries a price tag channel along the front edge. LED lighting sits above and below every shelf, so the bottom level stays lit across the full width. Despite the size, the cabinet draws 7.0 A and plugs into one standard NEMA 5-15P outlet, and the condenser pulls out from behind a magnetic front grill for cleaning.
Key Features:
- 54 cu. ft. (1529 L) behind four hinged, self-closing doors, the largest capacity in the series
- 98.50" of continuous frameless anti-glare glass with glass side walls
- 20 heavy duty adjustable shelves over 5 levels, each with a built-in price tag channel
- LED lighting above and below every shelf keeps the lower levels lit across the full run
- Magnetic front grill and pull-out condenser allow servicing from the aisle, not from behind
- Holds -1°C to 5°C on R290 while drawing only 7.0 A from a single 110V / 60Hz NEMA 5-15P outlet
Specifications
Dimensions
Dimensions (W x D x H)
98.50" x 29.13" x 78.75"
Net Weight
970 lbs (440 kg)
Details
Model
NMD-100-4H
Capacity
1529 L / 54 Cu. Ft
No. Of Doors
4 (Hinged, Self-Closing)
No. Of Shelves
20 (5 Levels, Heavy Duty Adjustable With Price Tag Channel)
Glass Type
Frameless Anti-Glare Glass Doors With Glass Side Walls
Lighting
LED On Top Of And Under Each Shelf
Refrigerant
R290 (CFC-Free)
Temperature Range
-1°C to 5°C (30°F to 41°F)
Ambient Temperature
≤ 25°C
Ambient Humidity
≤ 60%
Condenser
Pull-Out Condenser Behind Magnetic Front Grill
Controls
Front Mounted On/Off Switch
Voltage
110V
Amps
7.0A
Hertz
60
Nema
5-15P
Item Condition
New
Warranty / Certifications
Warranty
2 Years Parts & Labour / 5 Years Compressor (Per Omni Food Equipment Listing)
