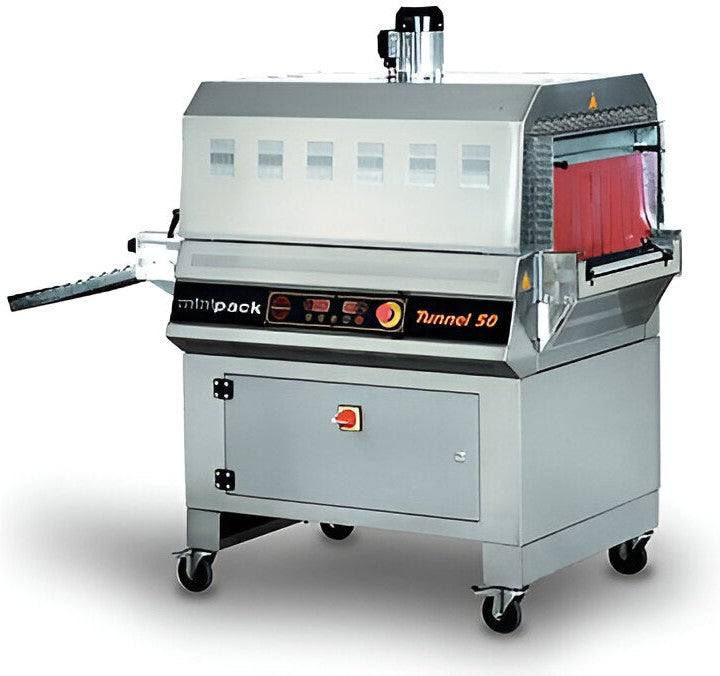

MiniPack - 208V, 28" Stainless Steel Tunnel Heating System - Tunnel 50SS
Model Number: GBS-Tunnel 50SS
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
Description
The Tunnel 50 Heating System is specifically designed for the food and pharmaceutical industries, providing maximum efficacy and versatility with a wide range of shrink films. This robust and efficient heating system ensures high-quality packaging results for various applications. The Minipack Tunnel 50 Heating System is the ideal solution for those in the food and pharmaceutical industries looking for a reliable, efficient, and versatile packaging system. Its advanced features and durable construction ensure it meets the high demands of industrial packaging applications.
Key Features:
Heating Area:
-
- Tunnel Inlet: 16" x 9" H
- Tunnel Length: 28"
- Shrink Film Types: All
Performance:
-
- Tunnel Heater Wattage: 7KW
- Power Supply: 208V / 3ph / 21A
Display & Controls:
-
- Water Resistant LED Display
- Digital Display
- Customizable Programs: 9
Operational Features:
-
- Programmable Conveyor Speed
- Adjustable Air Flow
- Automatic Cool-Down
- Adjustable Conveyor Height
- Self-Rotating Conveyor Rolls
- Double-Insulated Walls
- Exit Roll Conveyor: 18”
Service:
-
- Easy Frontal Access
- Indicating Display
- Error Codes
- 1 Year Limited Warranty
Housing & Dimensions:
-
- Material: Stainless Steel
- Machine Size (W x L x H): 50.39" x 33.46" x 57.87"
- Working Height: 34"
- Locking Casters
- Shipping Weight: 520lbs
Specifications
Dimensions
Length
33.46"
Width
50.39"
Height
57.87"
Details
Weight
520 lbs
Tunnel Inlet
16" x 9"H
Tunnel Length
28"
Shrink Film Types
All
Voltage
208V
Product Type
Tunnel Heating System
Warranty / Certifications
Warranty
1 Year Limited Warranty
