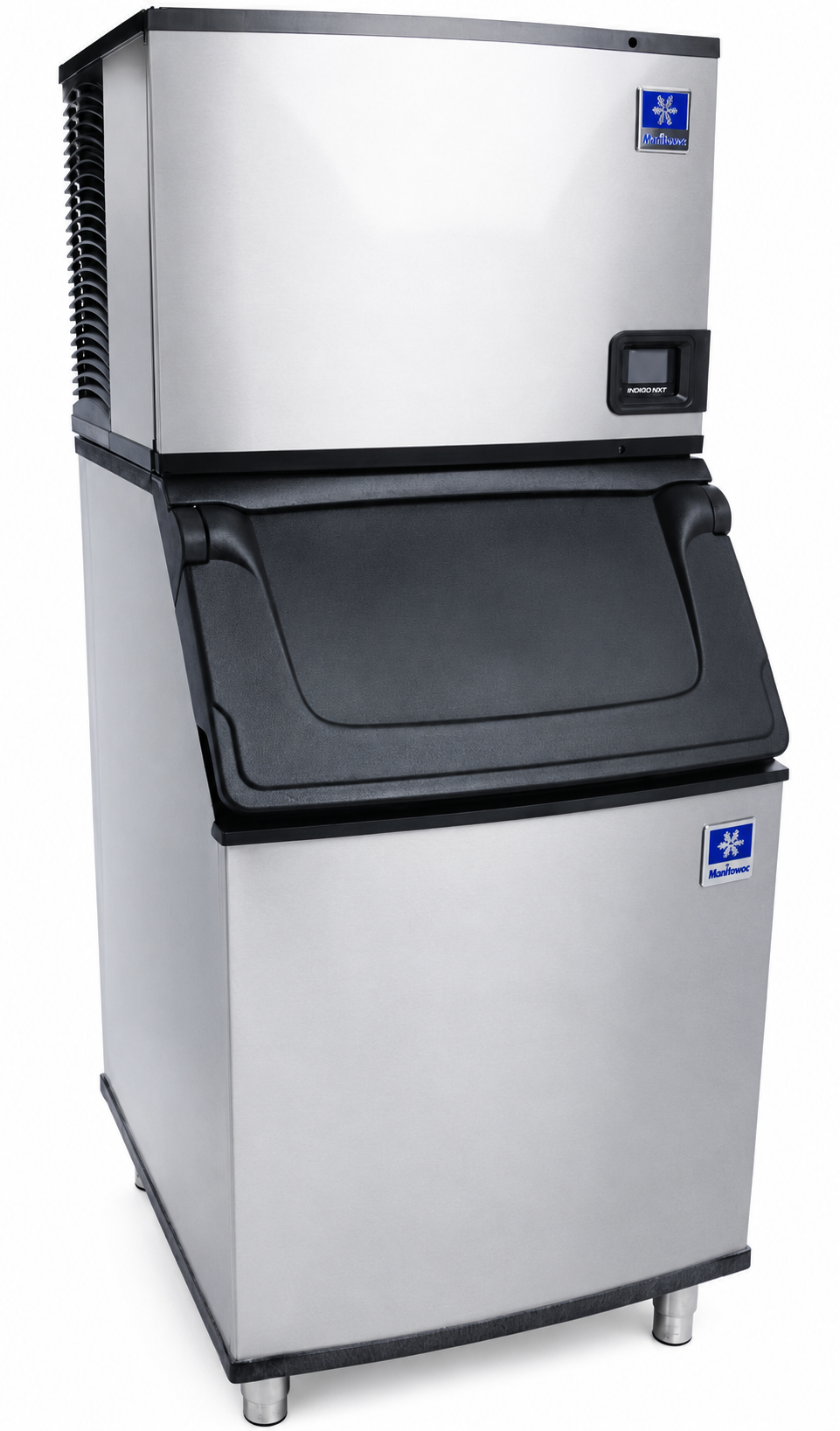

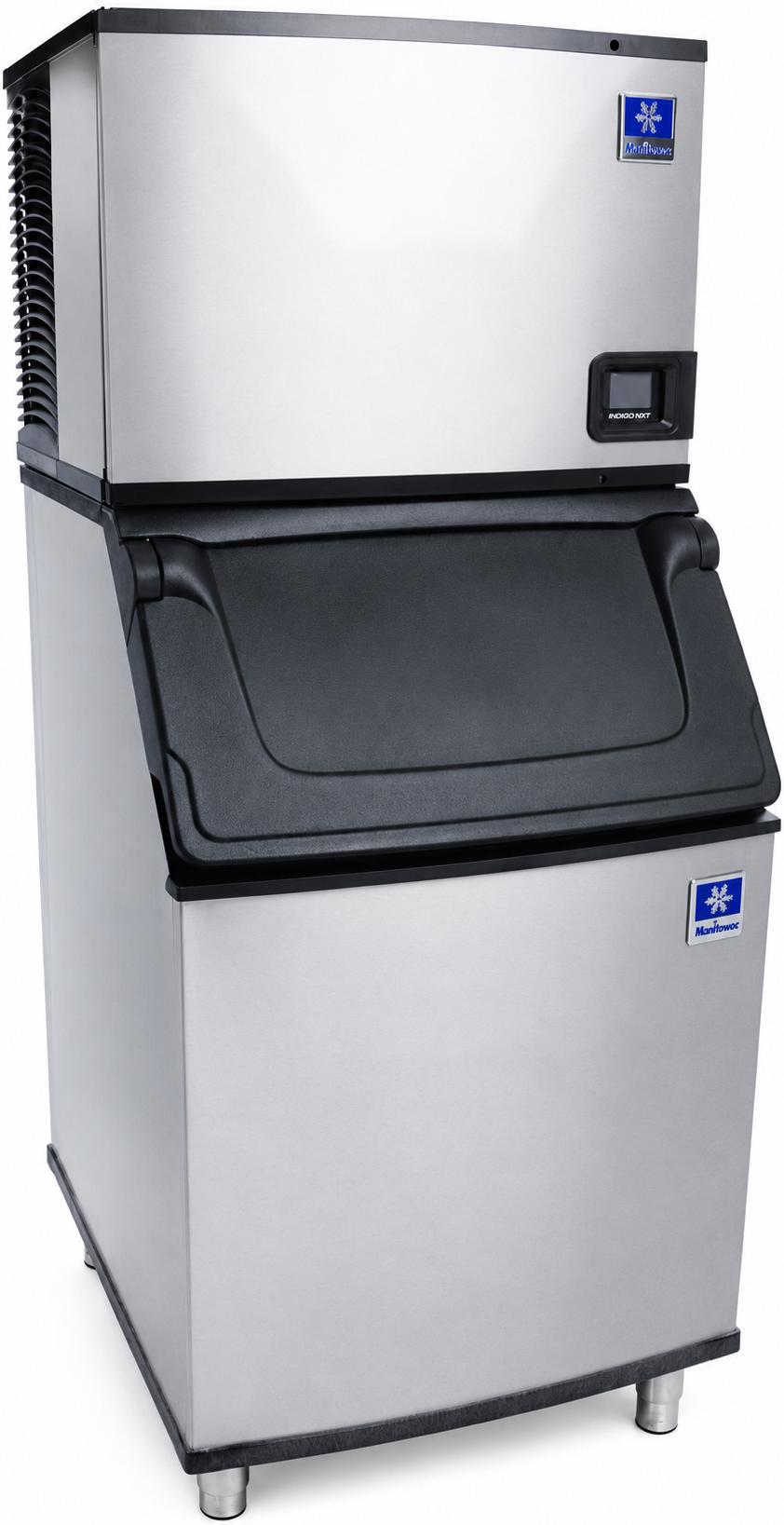

Manitowoc - Indigo NXT 115V 30" Water Cooled Full Dice Ice Cube Machine with 478 lbs Production Per 24 Hours - IDP-0450W-161

The Manitowoc Indigo NXT IDP-0450W-161 is a 30" water-cooled full dice ice cube machine designed to produce up to 478 lbs of ice per 24 hours. It makes full dice cubes measuring 7/8" x 7/8" x 7/8", giving foodservice operations a dependable cube format for beverage service and general ice needs.

This Indigo NXT ice machine uses R290 refrigerant and includes an icon-based easyTouch display to simplify operation. A hinged front door and removable internal components provide access for cleaning, while select parts feature AlphaSan antimicrobial protection. The DuraTech exterior is designed for corrosion resistance and resists fingerprints and dirt for easier upkeep.

Key Features:

• Produces up to 478 lbs of ice per 24 hours
• Water-cooled ice machine
• Full dice cube size: 7/8" x 7/8" x 7/8"
• 30" wide ice machine configuration
• R290 refrigerant with zero ozone depletion potential and low global warming potential
• easyTouch icon-based display
• Hinged front door for interior access
• Removable water trough, tube, curtain, probe, and pump for cleaning
• Select parts feature AlphaSan antimicrobial protection
• DuraTech exterior resists corrosion, fingerprints, and dirt
• Acoustical probe and Active Sense help support consistent ice production
• 24-hour diagnostics support preventative maintenance
• Bluetooth connectivity for setup and machine information
• Ice machine must be installed indoors
• Ice machine and bin sold separately


Electrical:

• Power: 115/60/1
• Water-cooled 115V minimum circuit ampacity: 11.2 amps
• Water-cooled 115V maximum fuse size: 15 amps
• Electrical entrance: two options

Water Connections

• Water condenser inlet: 3/8" F.P.T.
• Water condenser outlet: 1/2" F.P.T.
• Ice making inlet: 3/8" F.P.T.
• Ice making drain: 1/2" F.P.T.
• Auxiliary base drain socket: 1/2"
• Bin drain: 3/4"

Operating Limits:

• Ambient temperature range: 40°F to 110°F
• Water temperature range: 40°F to 90°F
• Ice maker water pressure: 20 psi minimum; 80 psi maximum
• Condenser inlet water pressure: 20 psi minimum; 276 psi maximum

Installation:

• Indoor installation required
• Minimum top and side clearance: 8"
• Minimum back clearance: 5"
• Ice machine and bin sold separately
