Lamber - 30 Rack/Hr High Temperature Undercounter Dishwasher with Drain & Chemical Pumps - DSP4EKDPS
Model Number: EUR-DSP4EKDPS
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
208-240V
This product requires 208V-240V.
Energy Star Approved
Energy Star certified appliances are built to energy efficient standards, saving you money in the kitchen.
ETL Certified
This product meets the electrical product safety standards imposed by the ETL for use in the US and Canada.
Hardwired
This product must be hardwired; it does not plug into a standard wall outlet.
NSF Certified
This product has met requirements for safety, quality, sustainability & performance standards set by the NSF group.
Single Phase
This product requires single phase power, common in commercial establishments and restaurants.
UL Certified
This product has been tested and meets safety standards imposed by hte Underwriters Laboratories.
Description

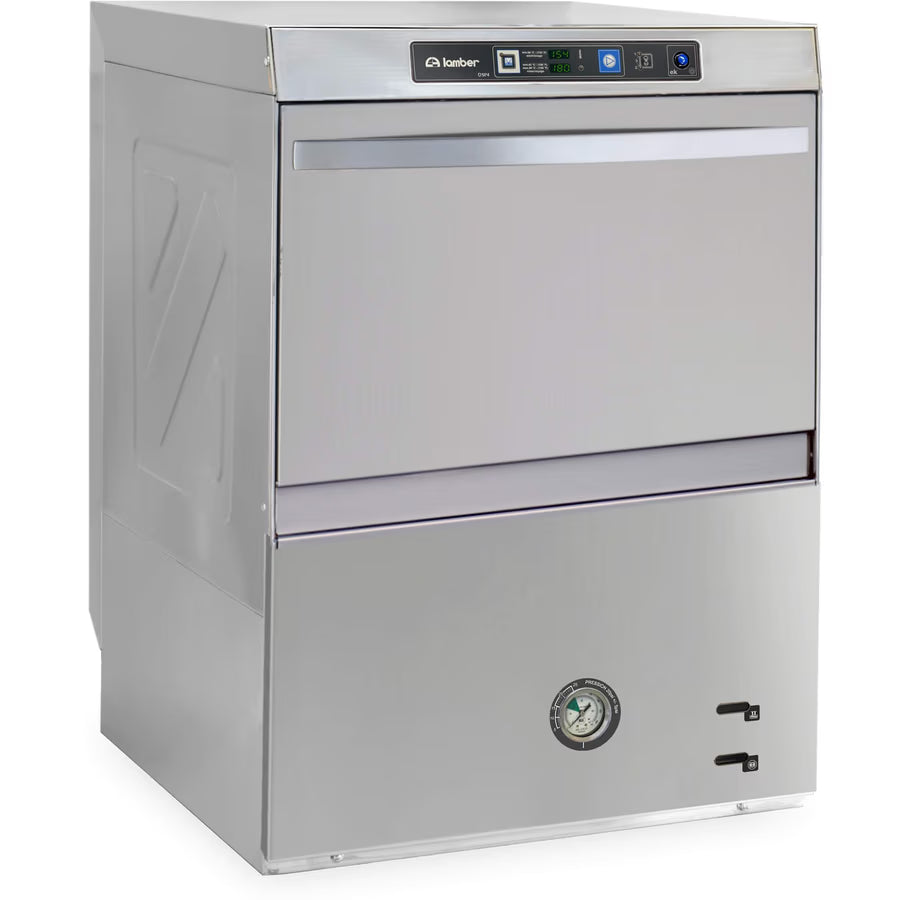

The Lamber DSP4EKDPS is a high temperature undercounter dishwasher built for commercial kitchens that need dependable warewashing in a compact footprint. Rated for up to 30 racks per hour, or roughly 600 dishes per hour, it offers four selectable cycles of 2, 3, 4, or 15 minutes so operators can match wash time to the load, from lightly soiled glassware to heavily soiled pots and pans. A soft-touch electronic control panel with diagnostic readout makes cycle selection and monitoring simple during busy service periods.
The stainless steel construction is designed for long-lasting performance in professional environments. This exclusive DPS model pairs lower wash and rinse arms with a rotating upper rinse arm for thorough water coverage across the 19.6" x 19.6" rack, with 15.3" of dish clearance for taller items. A thermocontrol system maintains the selected wash and rinse temperatures through every cycle, backed by a security thermostat. Automatic tank loading, a soft-start system, and integrated detergent and rinse aid pumps reduce manual tasks, while the built-in drain pump allows installation where gravity drainage is not available. Two integral tank filters help keep wash water clean throughout service.
Key Features:
- High temperature undercounter dishwasher, made in Italy
- Up to 30 racks per hour (approximately 600 dishes per hour)
- 4 selectable wash cycles: 2, 3, 4, or 15 minutes

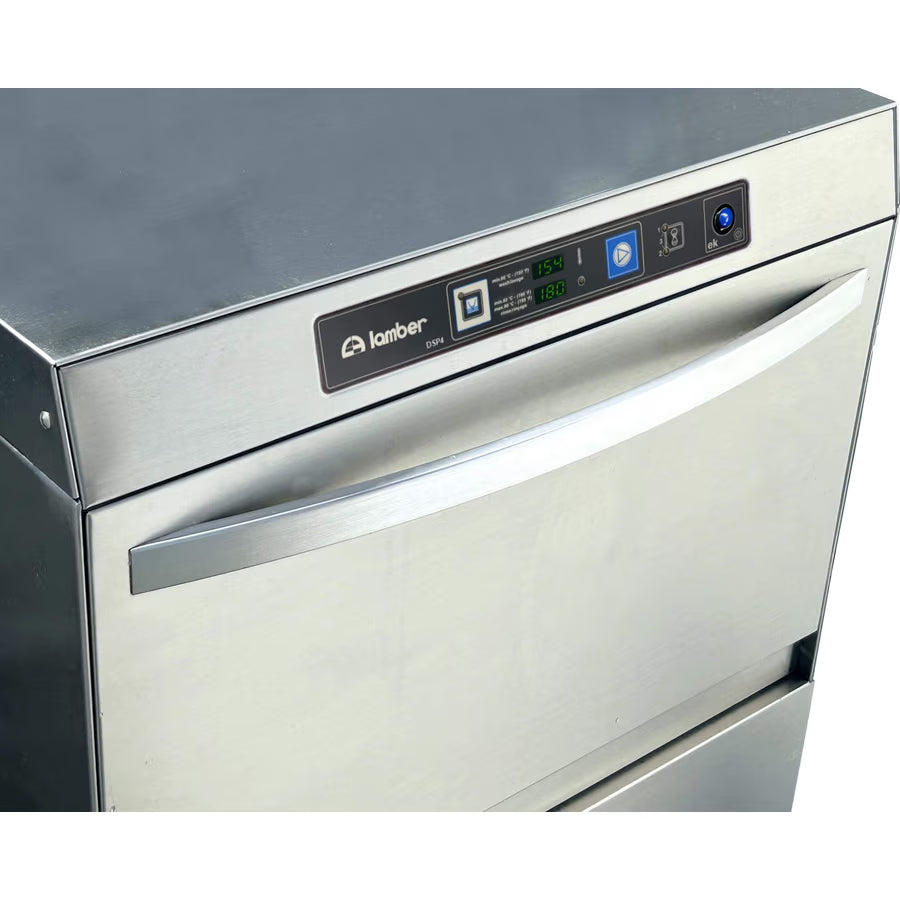

- Soft-touch electronic control panel with diagnostic readout
- Stainless steel construction
- Rotating upper rinse arm plus lower wash and rinse arms

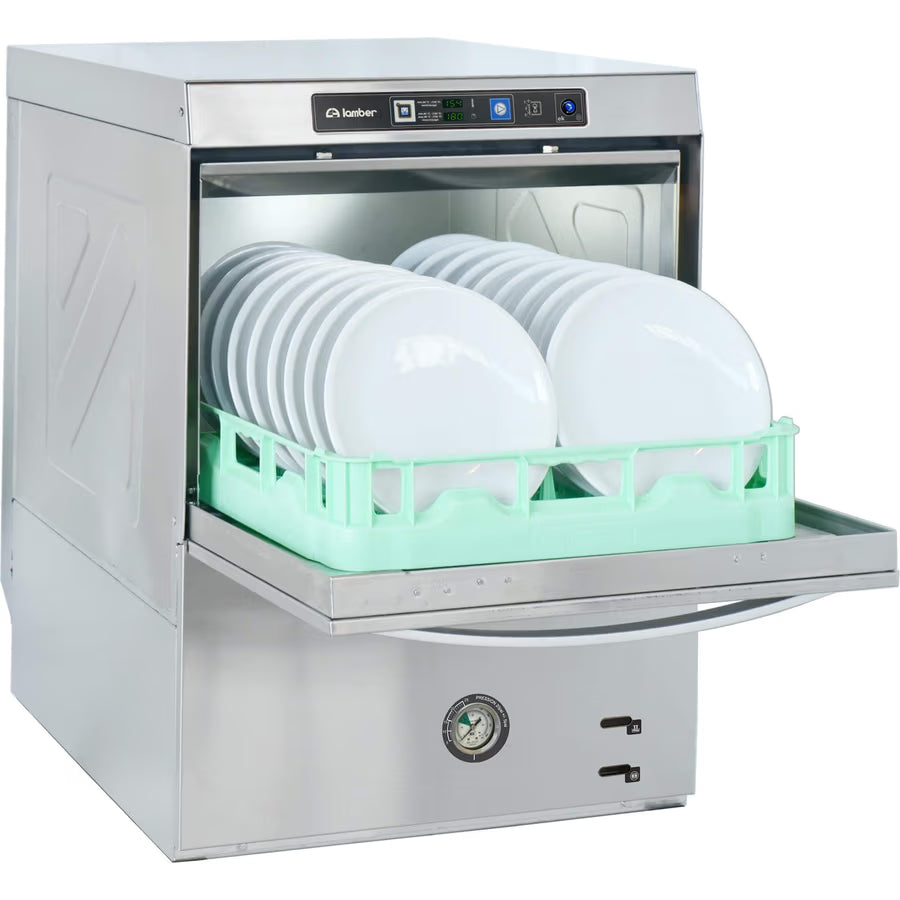

- 19.6" x 19.6" rack size with 15.3" dish clearance
- Thermocontrol system maintains selected wash and rinse temperatures
- Security thermostat
- Built-in drain pump for installations without gravity drainage
- Integrated detergent pump and rinse aid dispenser
- Automatic tank loading and soft-start system
- Two integral tank filters
- 4 gal (15 L) tank capacity
- 0.6 gal (2 L) water consumption per cycle
- Electric tank heat, 3.5 kW
- 208V/60Hz/1-phase, 17 amps, hardwired
- Dimensions: 23.7" W x 25.6" D x 32.2" H
- Weight: 70 lbs
- cULus listed, UL EPH classified
Specifications
Dimensions
Width
23.7"
Depth
25.6"
Height
32.2"
Work Height
15.3" (38 cm)
Clearance Height
12.6" (32 cm)
Rack Dimensions
19.6" x 19.6" (50 cm x 50 cm)
Details
Product Weight
136 lbs
Tank Capacity
4 gal (15 L)
Boiler Capacity
1.32 gal (5 L)
Noise Level
< 70 dB (A)
Water Consumption per Cycle
0.6 gal (2 L)
Wash Cycle Duration
2, 3, 4, or 15 min.
Wash Cycle Capacity
30 / 20 / 15 / 4 racks per hour
Power
3550 W, 208 V, 1 PH, 60 Hz, 17 A
Electric Pump
550 W
Wash Tank Element
2000 W
Rinse Tank Element
3000 W
Tank Heat
Electric
Connection
Hardwired, single phase
Water Inlet Connection
3/4" G
Inlet Water Pressure
40 to 80 psi
Water Hardness
7.2 to 12.5 °F
NEMA
Hard Wire
Rinse Temperature
180 to 195 °F (82 to 90 °C)
Water Inlet Temperature
131 to 140 °F (55 to 60 °C)
Energy Star
Yes
Drain Type
Drain pump
Chemical Dispensing
Detergent pump and rinse aid dispense
Control Features
Thermocontrol system, security thermostat, soft-start system, automatic tank loading
Controls
Soft-touch electronic control panel with diagnostic readout
Filtration
2 integral tank filters
Wash System
Lower wash and rinse arms with rotating upper rinse arm
Cabinet Base
Without side panels and top
Material
Stainless steel
Warranty / Certifications
Certifications
cULus listed, UL EPH classified
Warranty
1 Year
Reviews
Lamber is shipped free across Canada on orders over $149. Family owned and operated in Italy since 1976, Lamber has provided quality high-temperature commercial dishwashers for commercial kitchens and restaurants across the globe. Due to their high temperatures, the use of chemical sanitizers is not required.
