Lainox - Half Size 20 Pan Electric Combi Oven with Touchscreen, Direct Steam, 208V - NAE102B

Lainox - Half Size 20 Pan Electric Combi Oven with Touchscreen, Direct Steam, 208V - NAE102B

Lainox - Half Size 20 Pan Electric Combi Oven with Touchscreen, Direct Steam, 208V - NAE102B

Model Number: HOBA-NAE102B

UPC: N/A

Vulcan Equipment
$29,399.99 Save $3,229.01
In stock & Ready to Ship

Free Shipping Insurance

Free Delivery Over $149*

Some exclusions apply for remote regions and large items.

Extended Holiday Returns

Price Match Guarantee

Have questions? Your phone number is never stored.

PDF Spec Sheet PDF Spec Sheet white

PDF Spec Sheet

208V 208V

208V

Three Phase Three Phase

Three Phase

This product requires three phase power, common in commercial establishments and restaurants.

Description

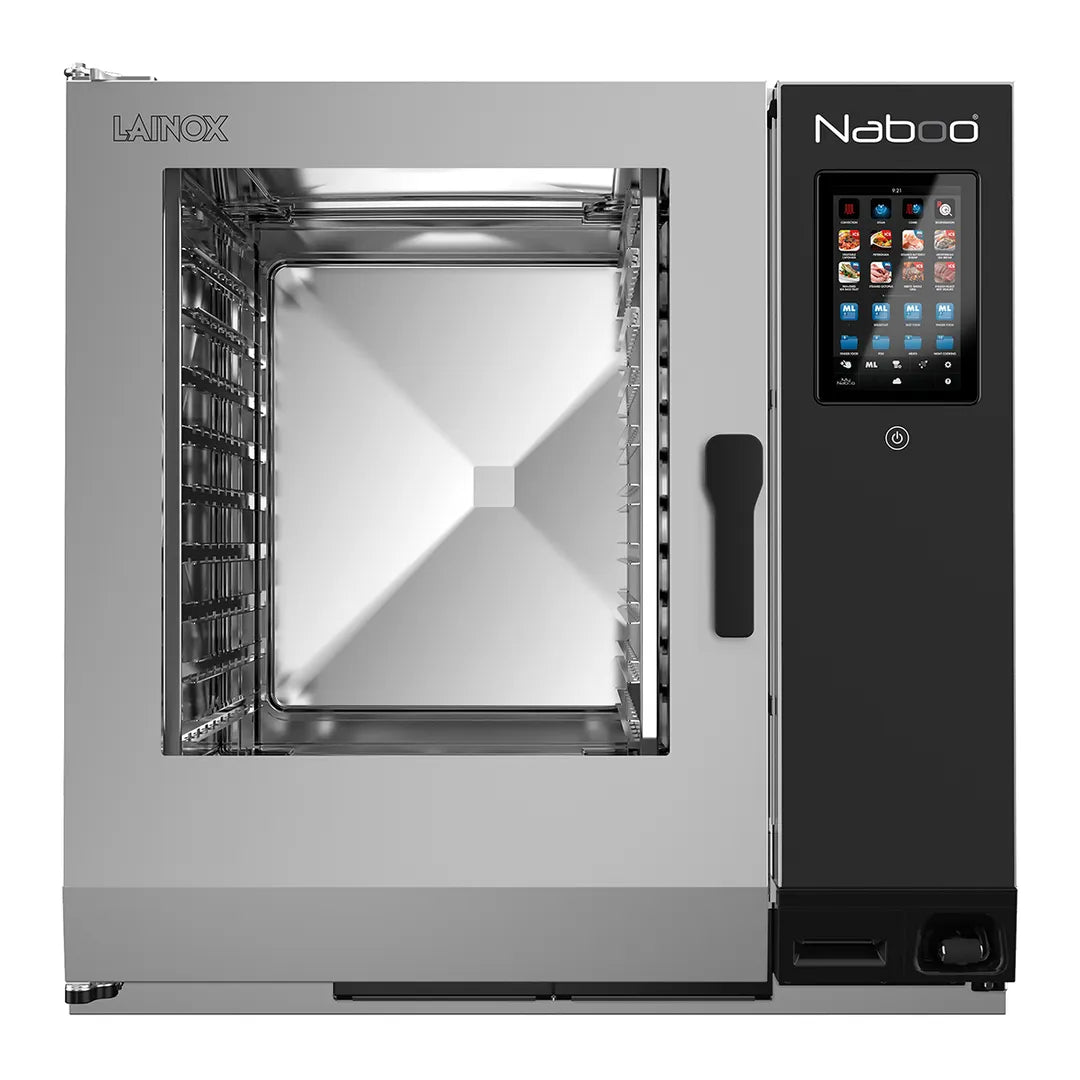

The Lainox NAE102B is a half size electric combi oven designed for catering operations, large businesses, and high-volume foodservice kitchens. It holds 10 x 2/1 GN pans or 20 x 1/1 GN pans and runs on direct steam with a three phase, 208V, 36.7 kW supply, making it suited to continuous production cooking across roasting, steaming, and combination modes. Operation is handled through a 10 inch electronic touchscreen with automatic interactive cooking, and the oven is part of the Naboo Boosted platform, which uses built-in Wi-Fi to connect to the Nabook cloud service and its virtual kitchen assistant, along with a USB port for HACCP data. The Autoclima system manages chamber climate throughout the cycle for consistent results, and the unit comes configured for connection to an extraction hood.
The cooking chamber is perfectly smooth and watertight, with internal stainless steel runners, a six speed fan, and a door fitted with double tempered glass. Cleaning is managed by the in-built automatic washing system with multiple cleaning modes, supported by the VCS Vapor Cleaning System, which reduces detergent consumption by up to 30 percent. Long Life Components and EMA Easy Maintenance Access are built in to shorten service intervention times, and a 5 micron water filter is included to protect the system. The oven operates across a 30°C to 300°C temperature range, carries an on-board energy monitor, is ENERGY STAR® qualified, and is made in Italy.

Key Features:

  • Half size electric combi oven with direct steam, Naboo Boosted series
  • Capacity for 10 x 2/1 GN or 20 x 1/1 GN pans
  • 10 inch electronic touchscreen control panel with configurable display
  • Automatic interactive cooking with editable recipes and Multilevel Plus
  • Autoclima chamber climate control
  • Built-in Wi-Fi connectivity to Nabook cloud and Naboo Coach virtual assistant
  • USB port for HACCP data
  • Perfectly smooth, watertight cooking chamber
  • Internal stainless steel runners
  • Six speed fan
  • Door with double tempered glass
  • In-built automatic washing system with multiple cleaning modes
  • VCS Vapor Cleaning System, up to 30 percent less detergent consumption
  • Long Life Components (LLC) and EMA Easy Maintenance Access
  • Multipoint core temperature probe, 3 mm, with external connector pre-configuration
  • SLS2 Smart Lighting System with chromatic communication
  • 5 micron water filter
  • Temperature range 30°C to 300°C
  • Three phase, 208V, 36.7 kW power supply
  • BPK configuration for connection to an extraction hood
  • Includes (5) X2100 stainless steel grids, 20" x 24" (2/1 GN)
  • Includes (2) 5 kg cartridges of DL002BC CombiClean Boosted 3 in 1 alkaline cleanser
  • Includes KNCI hydraulic connection kit with (2) 6 ft inlet pipes and Ø 2" drainage piping
  • Dimensions: 1072 mm W x 907 mm D x 1055 mm H
  • Energy monitor
  • ENERGY STAR® qualified
  • Made in Italy

Included standard equipment:
(1) SLCS Smart chemical control, for steam generator models
(1) CF002BC CALFREE BOOSTED, anti-scale, (2) cartridges of 4.5 kg (each)
BSR021 Floor Stand In Stainless Steel, With Shelf
HRS 200 Water-filter

Specifications

Dimensions

Width

36.73″

Depth

35.7″

Height

41.7″

Details

Weight

429.98 lbs

Poer Type

Electric

Steam Source

Boiler / Steam generator

Size

Half Size

Control Type

Touchscreen Controls

Voltage

208V

Phase

3

Steam Table Pan Capacity (12" x 20" / GN 1/1)

20

G/N Pan Capacity

10 2/1

Warranty / Certifications

Special Features

WiFi Enabled

Country of Origin

USA

Warranty

2 Year Limited Parts and Labor
