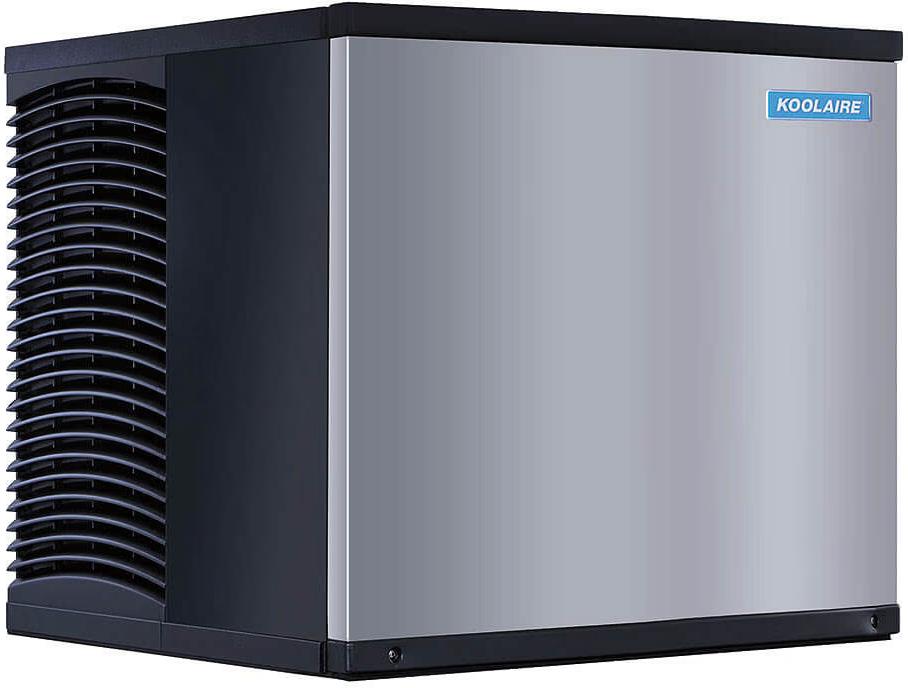

Koolaire - 22"W 120V Full Cube Water Cooled Ice Machine Head, 457 lbs/day - KDT0420W161
Model Number: MANC-KDT0420W161
Free Shipping Insurance
Free Delivery Over $149*
Some exclusions apply for remote regions and large items.
Extended Holiday Returns
Price Match Guarantee
Have questions? Your phone number is never stored.
120V
This product requires 120V.
NSF Listed
uIus
CE Certified
This product meets the health, safety, and environmental protection standards to be CE certified.
Energy Star Approved
Energy Star certified appliances are built to energy efficient standards, saving you money in the kitchen.
Single Phase
This product requires single phase power, common in commercial establishments and restaurants.
Description
The Koolaire KDT-0420W ice machine head delivers reliable, high-capacity ice production for commercial beverage service. This water-cooled unit can produce up to 457 lbs of full-cube ice per day, ideal for cocktails, soda, and water due to its slow melt rate. Its white plastic food zone components help identify dirt and facilitate cleaning, while internal parts like the distribution tube and water shield can be removed without tools. With durable construction and a corrosion-resistant finish, this unit is built for long-lasting performance. Requires an ice bin or dispenser (sold separately) for full operation.
Key Features:
- Produces up to 457 lbs of full-cube ice per day
- AHRI-certified daily production: 375 lbs
- Full-cube size: 0.875 in. x 0.875 in. x 0.875 in.
- Water-cooled condenser provides efficient, consistent ice production
- White plastic food zone components highlight debris for easy cleaning
- Food zone accessible by removing just two screws and the door
- Tool-free removal of distribution tube, floats, pump, trough, and water shield
- Durable, corrosion-resistant exterior
- Uses environmentally friendly R410A refrigerant
- Bin or dispenser sold separately
- Ice deflector required when used with a bin, not with a dispenser
- Operates in ambient temperatures from 40°F to 110°F
- Water temperature range: 40°F – 90°F
- Water pressure requirement: 20 – 80 PSI
- Top and side clearance: 8 in; Rear clearance: 5 in
Specifications
Dimensions
Width
22"
Depth
24"
Height
21.5"
Details
Weight
140 lbs
Daily Ice Production
457 lbs
AHRI Certified Production
375 lbs
Ice Type
Full Cube
Cube Size
0.875 in x 0.875 in x 0.875 in
Refrigerant
R410A
Compressor Type
Water Cooled
Voltage
115V
Amperage
9.6 A
Power
4.6 kW
Hertz
60Hz
Phase
1 Ph
Product Type
Ice Machine Head
Ambient Temp Range
40°F – 110°F
Water Temp Range
40°F – 90°F
Water Pressure Range
20 – 80 PSI
Clearance Required
8 in (top/sides), 5 in (rear)
Bin/Dispenser
Sold Separately
Warranty / Certifications
Warranty
3-year Parts & Labor; 5-year Parts & Labor on Evaporator; 5-year Parts & 1-year Labor on Compressor
Reviews
