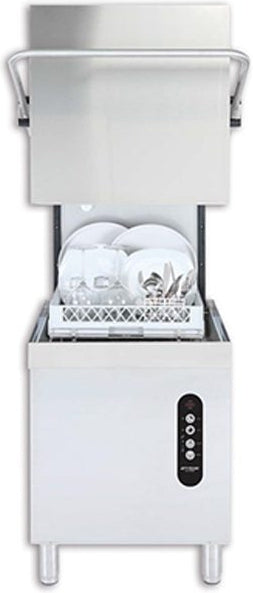

Jet-Tech - Door Type Dishwasher - EV22

This Jet-Tech Door-Type High Temperature Dishwasher is a powerful and efficient machine designed for commercial kitchens. With its built-in rinse booster and composite fiberglass wash arms, it can wash up to 60 racks per hour, making it ideal for high-volume restaurants and other foodservice operations. The front control panel and digital display make it easy to operate and monitor, while the stainless-steel finish ensures durability and easy cleaning.

This door-type dishwasher is designed for easy loading and unloading of racks, with a spacious interior that can accommodate a variety of dishware and utensils. The composite fiberglass wash arms are durable and resist damage from chemicals, ensuring long-lasting performance. The built-in rinse booster ensures that dishes are sanitized and ready for use, while the front control panel and digital display make it easy to monitor the dishwasher's performance and adjust settings as needed.

This high-temperature dishwasher is also certified by CE, cETLus, and ETL-Sanitation, ensuring that it meets strict safety and sanitation standards. With its powerful performance, durable construction, and user-friendly features, the Jet-Tech Door-Type High Temperature Dishwasher is an excellent choice for any commercial kitchen looking to streamline its dishwashing operations and improve efficiency.

Construction Features:

• Body, external housing, wash tank, and all chassis components in brushed stainless steel - type AISI 304 16 gauge
• Upper and lower wash and rinse revolving arms constructed of reinforced fiberglass; easy to remove and clean without the need for tools
• Adjustable bullet-style feet
• Safety two-way automatic micro-switch on the door controlling the operation of the wash motor-pumps
• Independently-operated heating elements alternating between booster and wash tank
• Alternating heating resistors reducing maximum absorption thereby reducing energy costs
• Door opening with overall clearance of 16.75 in. (425 mm) with ergonomic door handle
• New dFilter system®
• Automatic fill and water level regulation of the wash tank
• Wash pumps protected with double scrap filters easy to remove for quick cleaning and proper maintenance
• Machine can be installed either as an in-line or corner application with simple field modification
• Front mounted control panel with digital temperature displays
• Standard equipment includes : One open combination rack and one peg dish rack 19.75” x 19.75” (500 mm x 500 mm)

Technical Features:

• Rack capacity: 19.75” 19.75” (500 mm x 500 mm)
• Complete operating cycle: Two programmable cycles (2-3 min) Rinse (12-15 sec)
• Hourly production: up to 30 racks/hr
• Wash tank capacity: 6.25 US gallons (21 litres)
• Wash tank element: 2800 watts
• Wash temperature:  150°F (65°C) minimum / controlled electronically.
• Final rinse temperature: 185° - 194°F (85°-90°C) minimum / controlled electronically.
• Incoming water temperature: minimum 122°F (50°C)
• Booster capacity: 2.62 U.S gallon (10 litres)
• Power supply: 208-240/60 (single phase)
• Tank heating element: 4.0 KW
• Booster heating element: 4.0 KW
• Maximum power rating: 4.8 KW – 19.8 to 22.8A
• Power supply: 208-240/60 (three phase)
• Tank heating element: 4.0 KW
• Booster heating element: 6.0 KW
• Maximum power rating: 6.8 KW – 16.2 to 18.7A
• Water consumption per cycle @ 30 psi: 0.85 U.S gallons (2.7 litres)
• Recommended pressure: 30 p.s.i (2 bar)
• Shipping weight: 340 lbs (154.4 kg)
• Machine weight: 308 lbs (140 kg)
