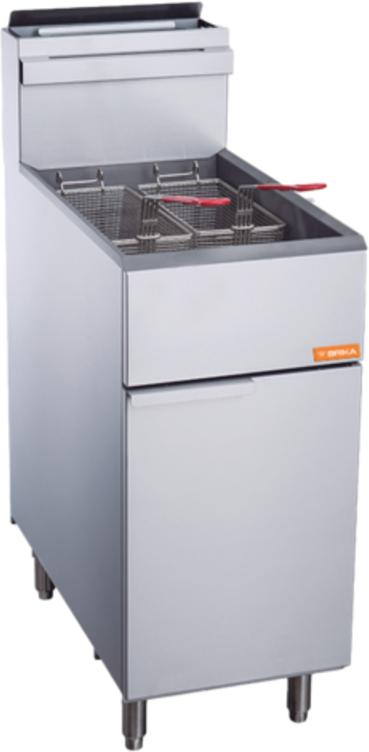

Brika - 50 lb Natural Gas Tube Fired Fryer, 120,000 BTU - BFR-50-NG
Model Number: DIST-BFR-50-NG
Description
Fifty pounds of oil, four burner tubes and 120,000 BTU/Hr of gas input describe the working core of this floor-standing natural gas fryer. Approximately 25.75 L in the pot gives a busy quick-service line or a banquet kitchen the thermal mass to absorb back-to-back drops. Two baskets work a 14.00" x 14.00" frying area.
Four 30,000 BTU/Hr burners fire through the tubes and spread heat across a large transfer area, so recovery time stays short when frozen product goes straight in. Temperature is set anywhere from 200°F to 400°F, driven by a durable temperature probe, and the millivolt safety control system means the fryer needs no line power. Sediment collects in the large cold zone at the forward-sloping bottom, extending oil life, then empties through the 1.25" high flow full port drain valve. Cabinet is stainless steel at 15.50" x 32.88" x 45.00", 176 lbs net and 198 lbs shipping.
Key Features:
- 50 lbs of oil (about 25.75 L) in a stainless steel frypot with a 14.00" x 14.00" cooking area
- Four tube burners at 30,000 BTU/Hr each for 120,000 BTU/Hr of total input
- Millivolt safety control system, so no electrical supply is required at the fryer
- 200°F to 400°F thermostat range read by a durable temperature probe
- Large cold zone with a forward-sloping bottom and a 1.25" high flow full port drain valve with pipe
- Two baskets and a double panel insulated door standard, CSA Sanitation listed, 1 year warranty with a 5 year prorated tank warranty
Specifications
Dimensions
Width
15.50"
Depth
32.88"
Height
45.00"
Cooking Width
14.00"
Cooking Depth
14.00"
Shipping Width
17.88"
Shipping Depth
35.38"
Shipping Height
37.63"
Details
Model
BFR-50-NG
Power Type
Natural Gas
Heating Source
Tube Fired
Total BTU
120,000 BTU/Hr
Number of Burners
4
Burner Rating
30,000 BTU/Hr per burner
Oil Capacity
50 lbs (~25.75 L)
Temperature Range
200°F - 400°F
Control System
Millivolt Safety Control System
Thermostat
Durable Temperature Probe
Drain Valve
1-1/4" High Flow Full Port Drain Valve with Pipe
Number of Baskets
2
Door
Double Panel Insulated
Cold Zone
Large Cold Zone with Forward-Sloping Bottom
Gas Inlet Size
3/4" NPT
Manifold Pressure (Natural Gas)
4" WC
Manifold Pressure (Propane)
10" WC
Construction Material
Stainless Steel
Net Weight
176 lbs
Shipping Weight
198 lbs
Clearance to Combustibles
17" minimum
Rear Clearance
4"
Product Condition
New
Warranty / Certifications
Warranty
1 Year
Tank Warranty
5 Year Prorated
Certification
CSA Sanitation
